Namura Technologies Connecting Rod Kit Namura RX-40003 DT50 YZ50, 126-11651-00, 3R1-11651-01-00, MX-09021, RY-2001 Yamaha

Namura Technologies Connecting Rod Kit Namura RX-40003 DT50 YZ50, 126-11651-00, 3R1-11651-01-00, MX-09021, RY-2001 Yamaha. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit Namura RX-40003 DT50 YZ50, 126-11651-00, 3R1-11651-01-00, MX-09021, RY-2001 Yamaha
• Part number: 56-2940.DR
• Brand: Namura Technologies
• YAMAHA
• DT50 / DT80 / YZ50 / YZ80/ V50 / YB50 / LB80,
• MP/MC 1964-65 YJ1 1964-65,
• YJ2 1984 CV50L 1983-87,
• CV80 (RIVA) 1973 GT1
• CONNECTING CONROD ROD REBUILD KIT.
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

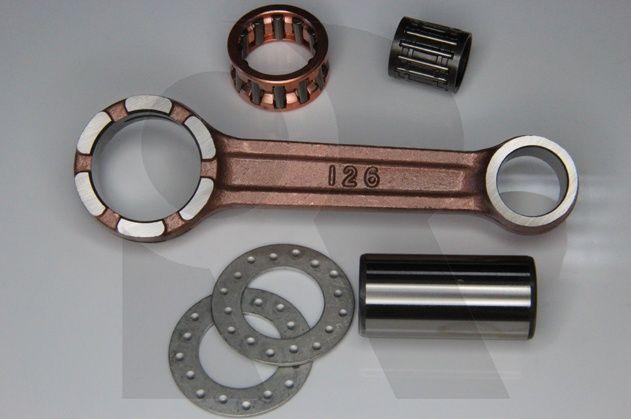

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220/420,

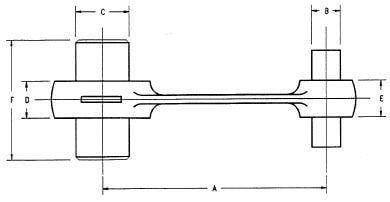

• SIZE
• MM
• Centre 2 Centre
• 84
• Small End Bearing
• 12x15x16.5
• Small End Bore Ø
• 22
• Small End Width
• 15.60
• Big End Bearing
• 18x24x11.6
• Big End Bore Ø
• 31
• Big End Width
• 11.60
• Big End Pin Ø
• 18
• Big End Pin Length
• 37
• Washer Thickness
• 18x31x1
• Part No. 56-2940.DR (www.fdyperformance.com)
• RY-2001/126, 126-11651-00-00, PROX 03.2002, 126-11651-00-00, 3R1-11651-01-00, RX-40003
