Connecting Rod SX-F350 KTM, Hot Rods 8693

Connecting Rod SX-F350 KTM, Hot Rods 8693. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod SX-F350 KTM, Hot Rods 8693
• Part number: 56-2984.HR
• Brand: Hot Rods
• Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for exceptional strength under heavy loads.

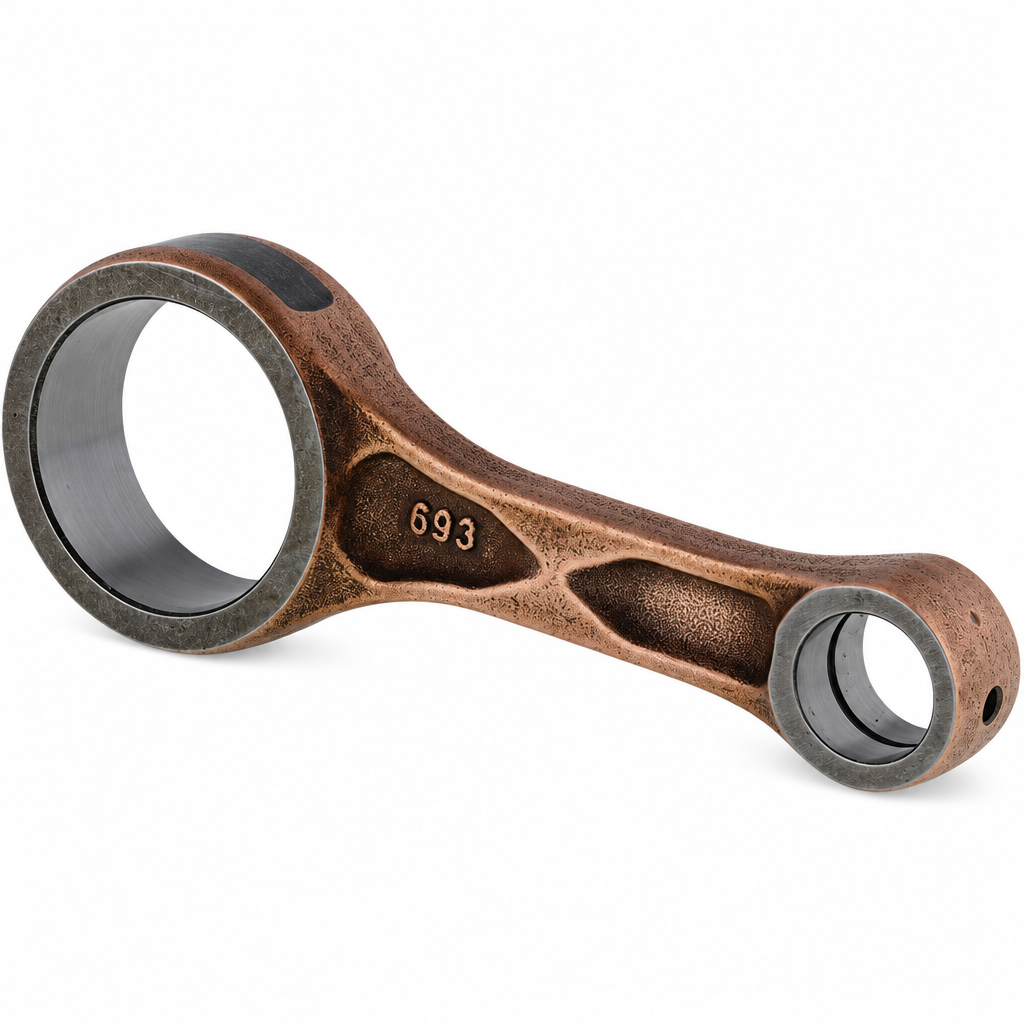

• Strategically designed with side scalloping and vent slots to reduce high RPM distortion.
• Double-drilled small ends for enhanced lubrication and cooling.
• Silver-coated thrust washers and crank pin bearings for added lubricity.

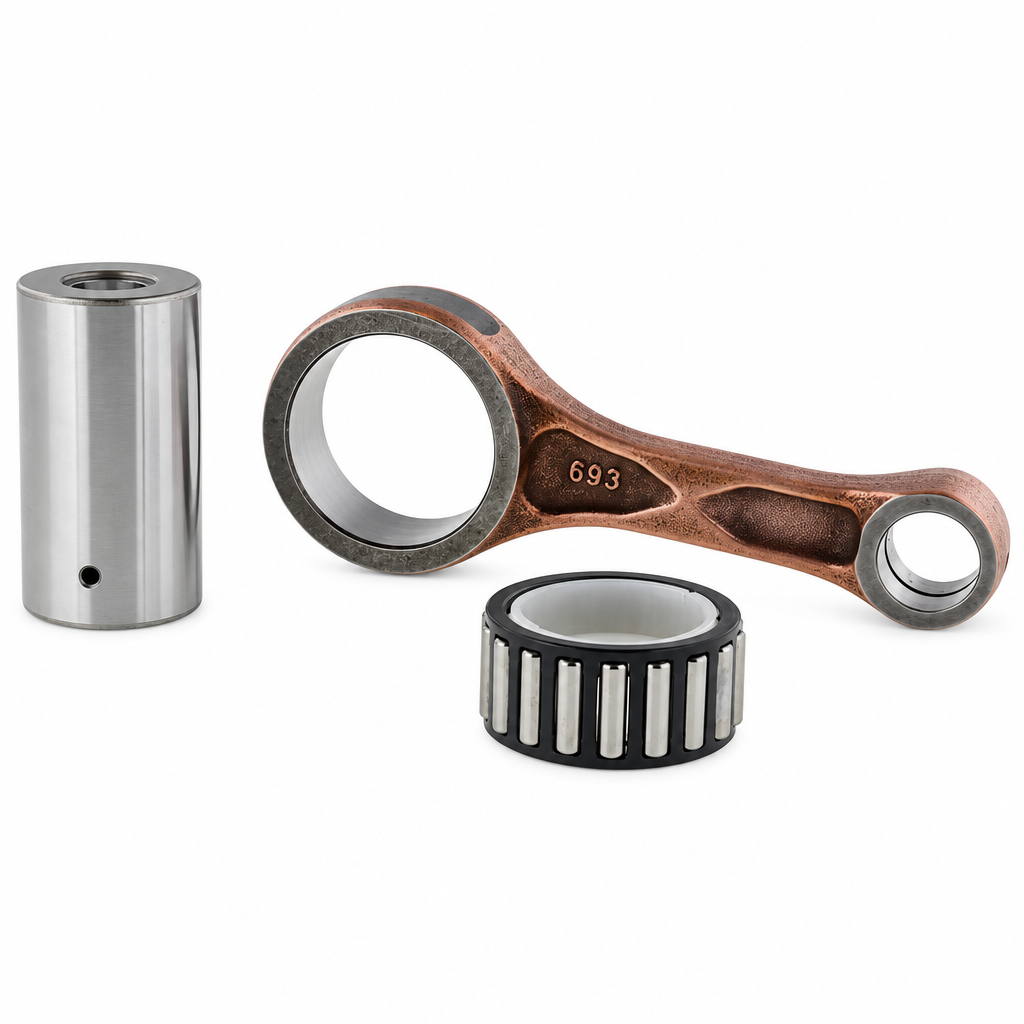

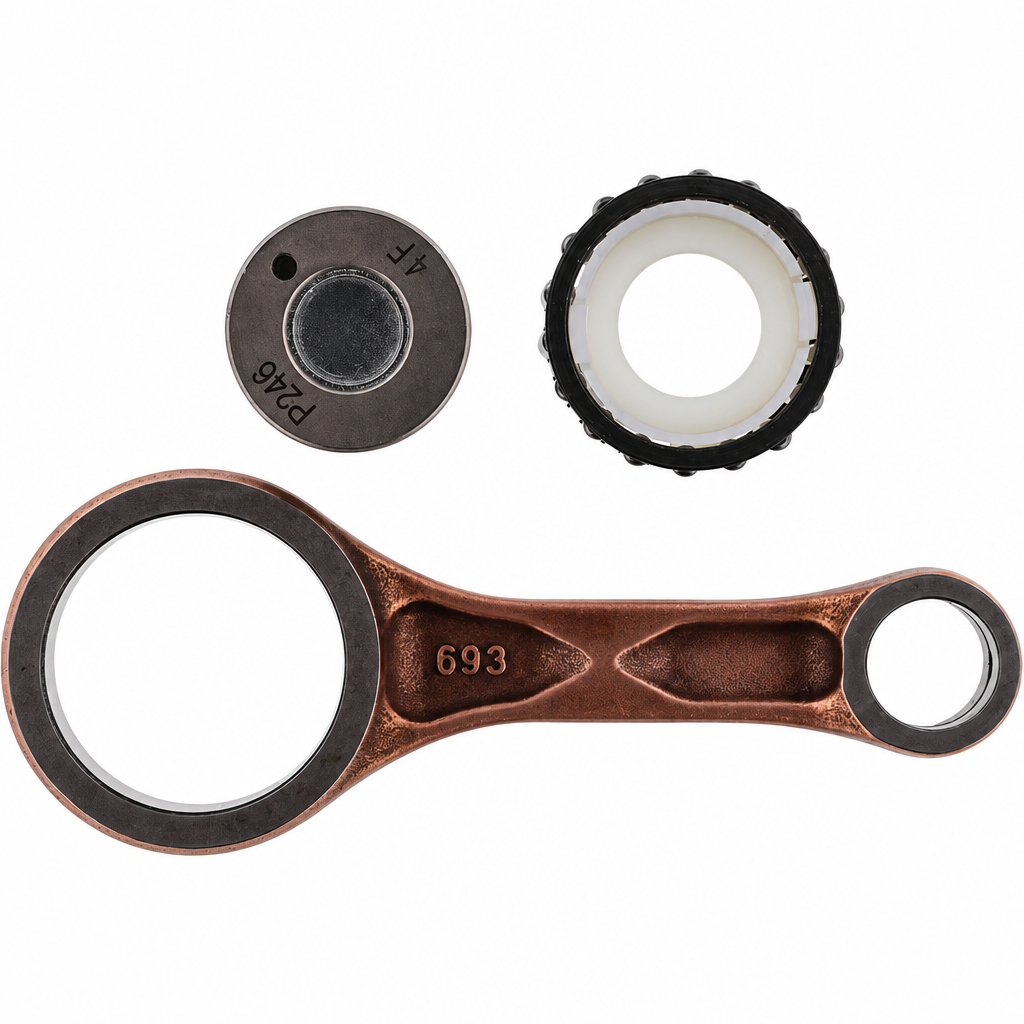

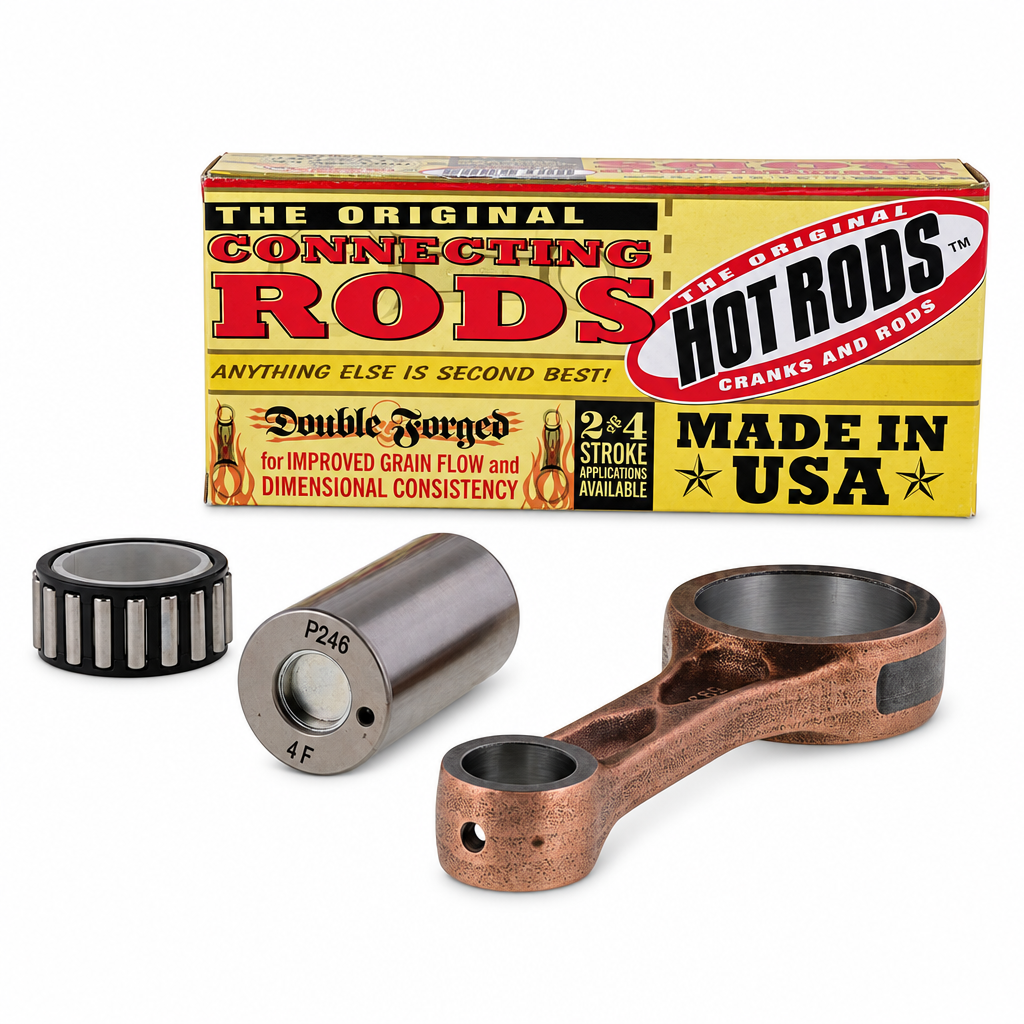

• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.
• Technical Specifications:
• Big End Bore: 41.00 mm
• Center to Center: 102.00 mm
• Pin Diameter: 32.00 mm
• Pin Length: 60.00 mm
• Small End Bore: 18.00 mm
• Included Items:
• (1) Connecting rod
• (1) Crankshaft pin
• (1) Connecting rod bearing
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM FREERIDE 350cc — 2012–2015
• HUSABERG FE 250cc — 2013–2014
• KTM EXC F 350cc — 2012
• KTM SX F 350cc — 2011–2012
• HUSABERG FE 350cc — 2013
• KTM XC F 350cc — 2011–2012
• KTM EXC F 350cc — 2012–2013
• KTM XCF W 350cc — 2012–2013
• KTM SX F 350cc — 2010–2012
• KTM FREERIDE 350cc — 2012–2014
• KTM SX F 350cc — 2010–2013
• KTM EXC F 350cc — 2010–2012

Match your exact make, model, year and specification before ordering.
