Namura Technologies Connecting Rod SX-F350 KTM, Namura RX-70001 MX-09018, 77230015044

Namura Technologies Connecting Rod SX-F350 KTM, Namura RX-70001 MX-09018, 77230015044. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod SX-F350 KTM, Namura RX-70001 MX-09018, 77230015044
• Part number: 56-2984.NM
• Brand: Namura Technologies
• KTM
• 2011-12 350 SX-F
• 2010-12 350 EXC-F
• 2012-13 350 XCF-W
• 2011-12 350 XC-F
• EXC-F 350 2010-2012 Pro Series
• HUSABERG
• 2013-14 FE350

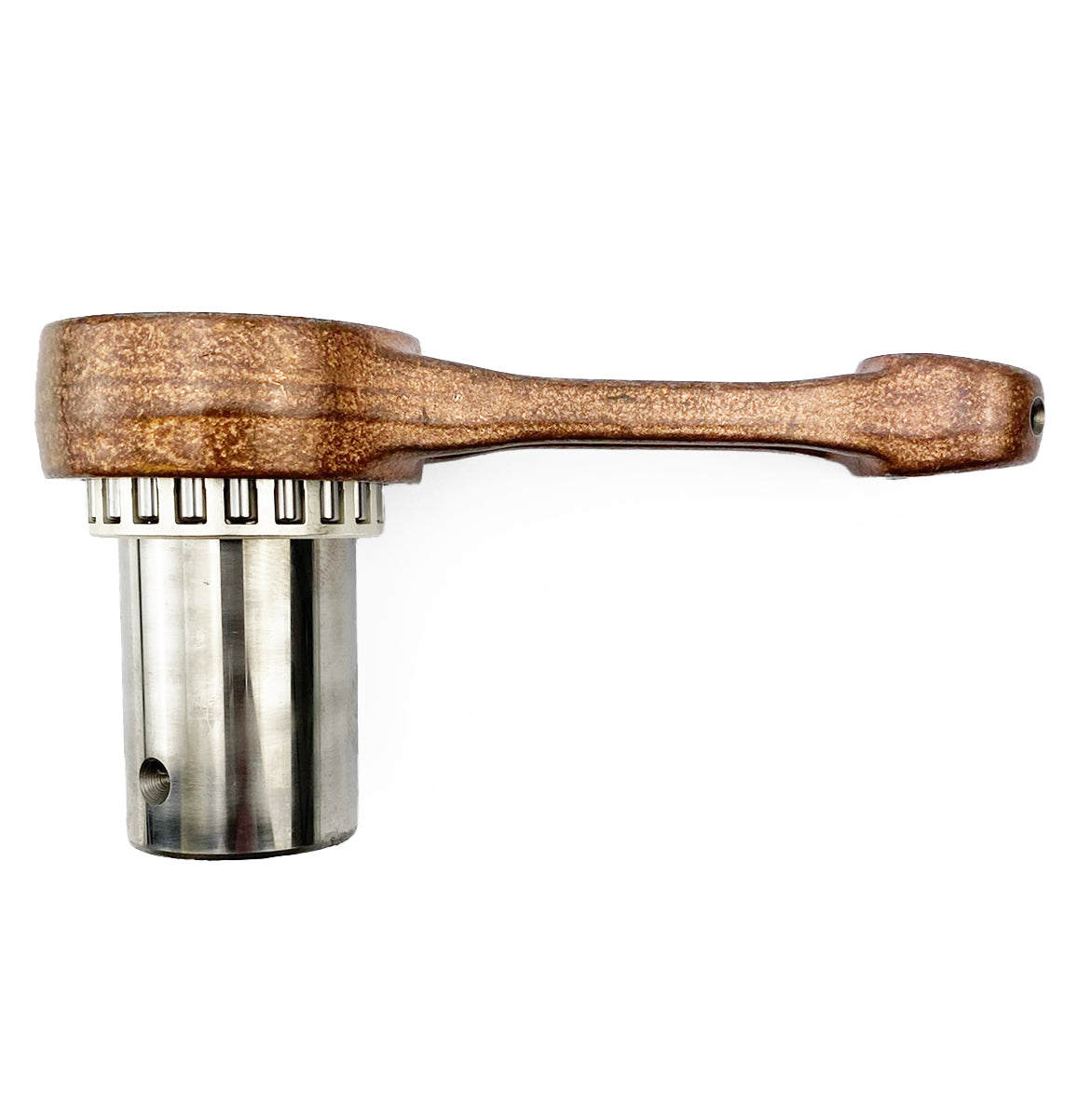

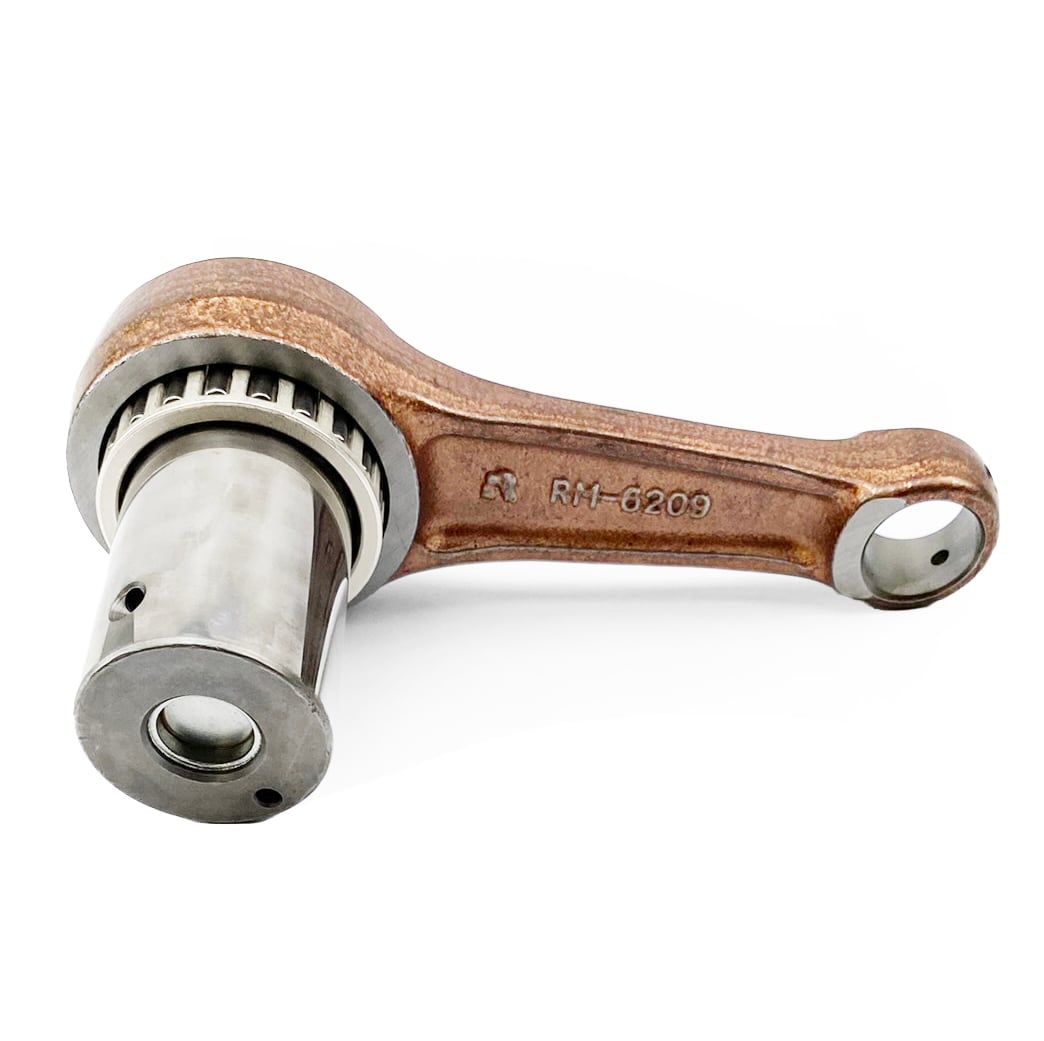

• NAMURA CONNECTING ROD KIT – MX-09018
• Heavy-duty OE replacement connecting rod designed for durability and performance.
• Manufactured from certified chrome alloy steel for superior strength.
• Crankpins made from hot-rolled ASTM steel and case-hardened for enhanced longevity.
• Precision-engineered caged needle roller bearings ensure high RPM stability.
• Thrust washers crafted from phosphor bronze with a silver coating for improved wear resistance.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as required.
• Fully compatible with both aftermarket and OE crankshafts.
• Material: SNCM220
• Specifications (MM)
• Center to Center: 102
• Small End Bore Ø: 18
• Small End Width: 17
• Big End Bearing: 32x40x19.8
• Big End Bore Ø: 40
• Big End Width: 20
• Big End Pin Ø: 32
• Big End Pin Length: 60.00
• Washer Thickness: None
• Part No. 56-2984.NAM
• Cross Reference Numbers:
• 77230015044, WOSSNER P4040, PROX 03.6351, HOTRODS 8693

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
