Connecting Rod 10-19 YZ450F, Hot Rods 8694 Yamaha

Connecting Rod 10-19 YZ450F, Hot Rods 8694 Yamaha. Find the product specifications and compatibility information below.

Product details

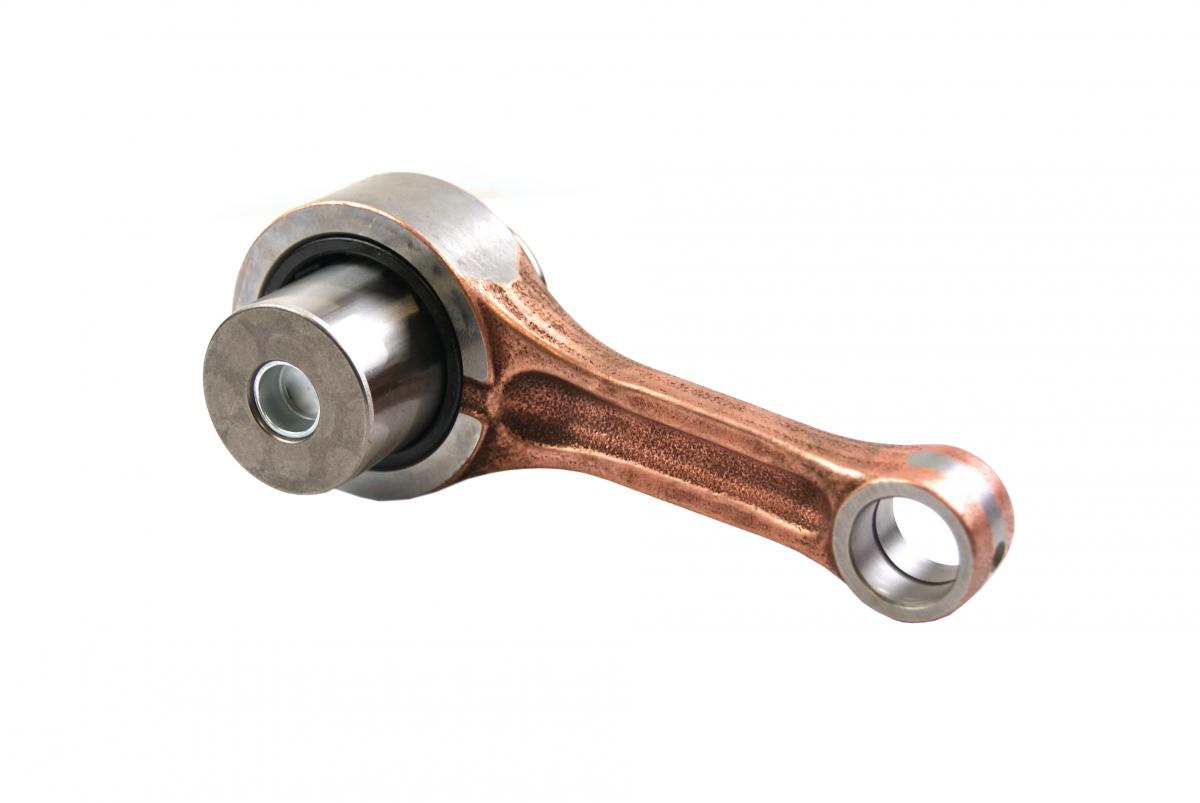

• Product: Connecting Rod 10-19 YZ450F, Hot Rods 8694 Yamaha
• Part number: 56-857.HR
• Brand: Hot Rods

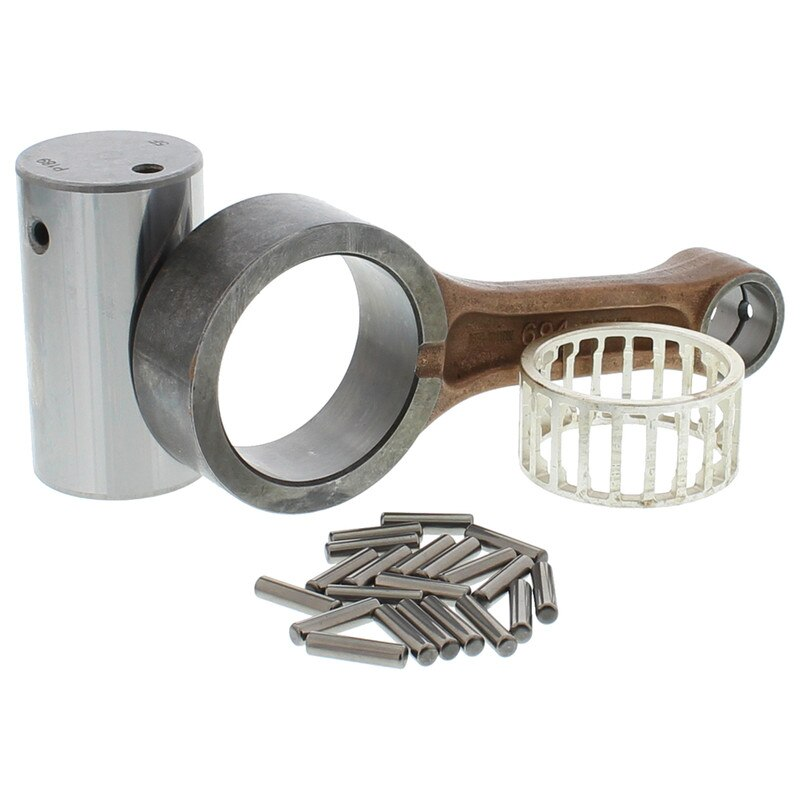

• Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for superior durability.
• Strategically designed side scalloping and vent slots reduce high RPM bearing race distortion.
• Double-forged rods enhance grain flow and maintain dimensional accuracy.
• Shot-peened and double-honed for increased strength under heavy loads.
• Small ends feature double drilling for improved lubrication and cooling to the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings provide enhanced lubricity and longevity.
• Technical Specifications:
• Big End Bearing (mm): 34 x 42 x 20.9
• Big End Bore (mm): 42.00
• Big End Width (mm): 20.98
• Center to Center (mm): 103.00
• Pin Diameter (mm): 34.00
• Pin Length (mm): 60.80
• Small End Bore (mm): 18.00
• Small End Width (mm): N/A
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZ FX 450cc — 2016–2018
• YAMAHA WR F 450cc — 2016–2018
• YAMAHA YZ FX 450cc — 2016–2020
• YAMAHA WR F 450cc — 2016–2019
• YAMAHA YZ F 450cc — 2010–2020
• YAMAHA WRF 450cc — 2016–2018
• YAMAHA WR F 450cc — 2016–2020
• YAMAHA YZF X 450cc — 2016–2017
• YAMAHA YZ F 450cc — 2010–2019
• YAMAHA YZ F 450cc — 2010–2016
• YAMAHA YZ F 450cc — 2010–2018
• YAMAHA YZ F 450cc — 2010–2015
• YAMAHA YZF 450cc — 2010–2018

Match your exact make, model, year and specification before ordering.
