Hot Rods Connecting Rod 08-11 WR250R/X, Hot Rod 8696 Yamaha

Hot Rods Connecting Rod 08-11 WR250R/X, Hot Rod 8696 Yamaha. Find the product specifications and compatibility information below.

Product details

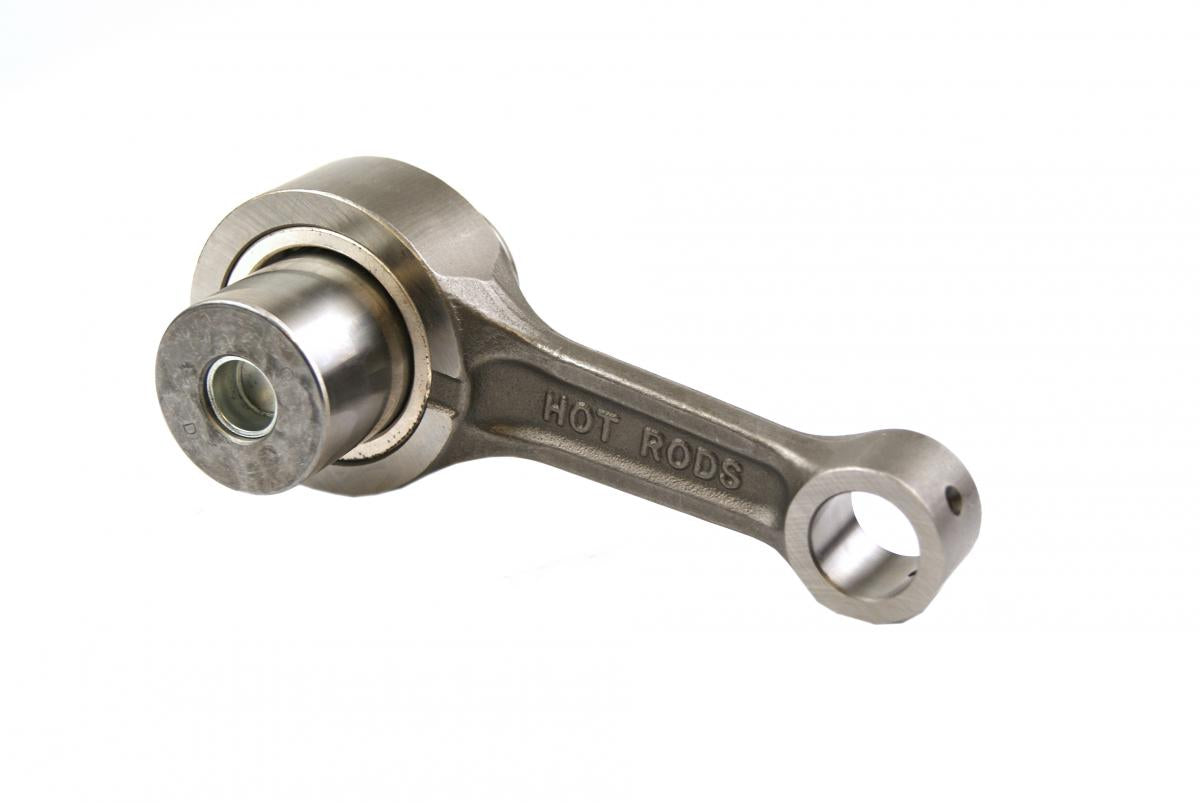

• Product: Connecting Rod 08-11 WR250R/X, Hot Rod 8696 Yamaha
• Part number: 56-858.HR
• Brand: Hot Rods

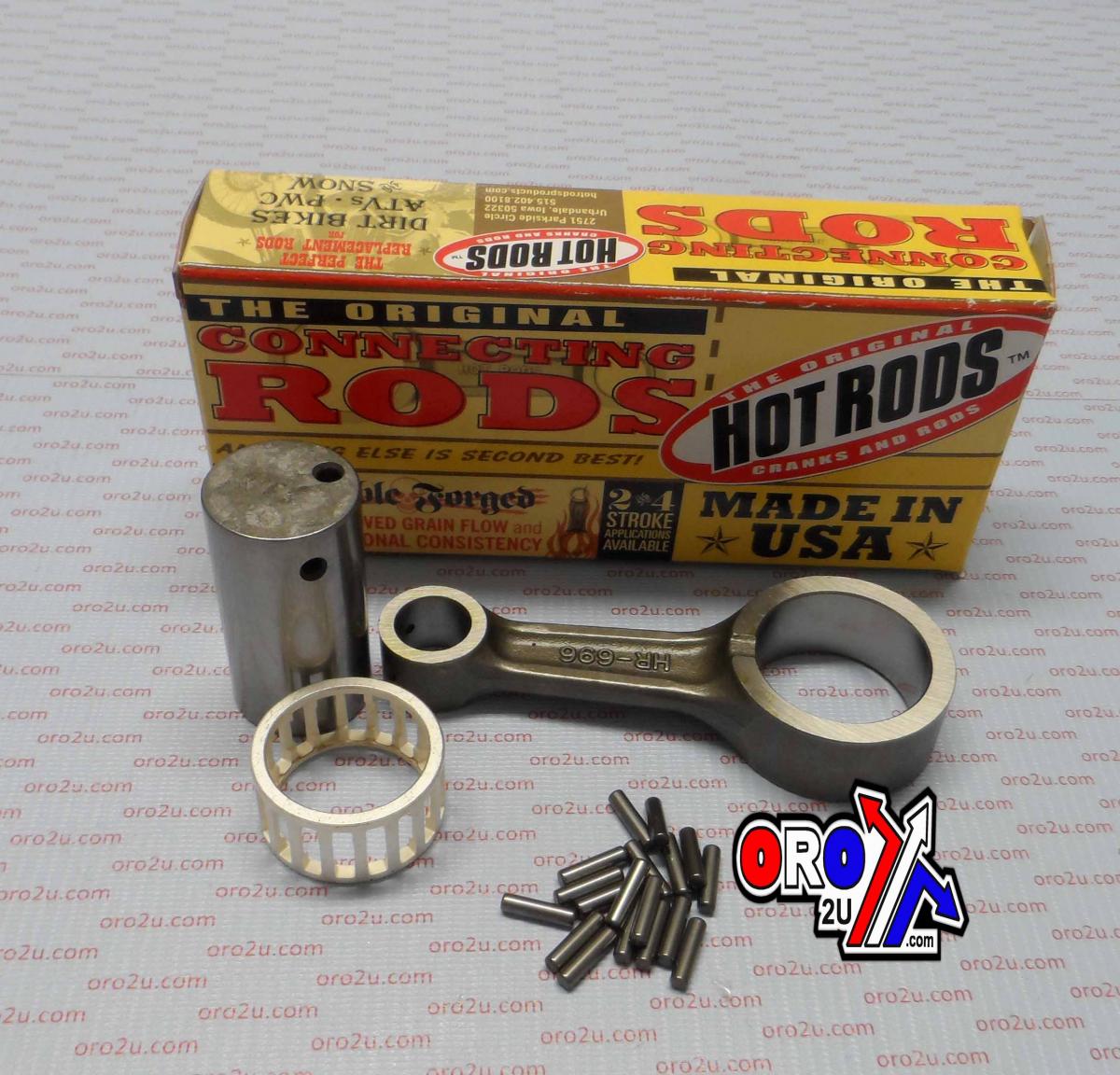

• Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional strength and durability.
• Advanced side scalloping and vent slots reduce high RPM bearing race distortion.
• Double-forged rods enhance grain flow and dimensional consistency.
• Shot-peened and double-honed for increased strength under heavy loads.
• Small ends feature double drilling for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings offer added lubricity and extended lifespan.
• Technical Specifications:
• Big End Bearing (mm): 32 x 40 x 20.8
• Big End Bore (mm): 40.00
• Big End Width (mm): 21.00
• Center to Center (mm): 94.00
• Pin Diameter (mm): 32.00
• Pin Length (mm): 60.80
• Small End Bearing (mm): No Bushing
• Small End Bore (mm): 17.00
• Small End Width (mm): 17.00
• Washer Thickness (mm): Not Used
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA WR R 250cc — 2008–2016
• YAMAHA WR X 250cc — 2008–2011
• YAMAHA WR R 250cc — 2008–2011

Match your exact make, model, year and specification before ordering.
