Connecting Rod KTM SX-F450, Hot Rods 8664 KTM 2008-2012

Connecting Rod KTM SX-F450, Hot Rods 8664 KTM 2008-2012. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KTM SX-F450, Hot Rods 8664 KTM 2008-2012
• Part number: 56-861.HR
• Brand: Hot Rods

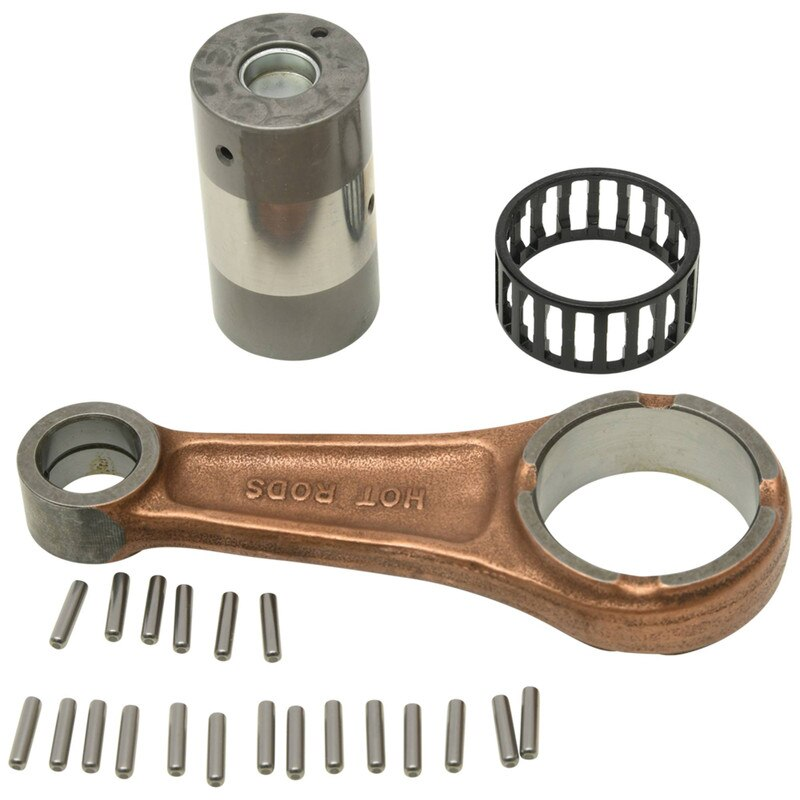

• Includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional strength and durability.
• Advanced design with side scalloping and vent slots to reduce high RPM bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional accuracy.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for added lubricity and wear resistance.
• Technical Specifications:
• Big End Bearing (mm): 35 x 42 x 19.7
• Big End Bore (mm): 42.00
• Big End Width (mm): N/A
• Center to Center (mm): 107.40
• Pin Diameter (mm): 35.00
• Pin Length (mm): 64.00
• Small End Bore (mm): 19.00
• Small End Width (mm): N/A
• Washer Thickness (mm): N/A
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM XC F 450cc — 2008–2009
• KTM XC 450cc — 2008–2009
• KTM SX ATV 450cc — 2009–2010
• KTM SX F 450cc — 2007–2012
• KTM SM R 450cc — 2008–2012
• KTM SMR 450cc — 2008

Match your exact make, model, year and specification before ordering.
