Hot Rods Connecting Rod KTM SX-F450, Hotrod 8665

Hot Rods Connecting Rod KTM SX-F450, Hotrod 8665. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KTM SX-F450, Hotrod 8665
• Part number: 56-862.HR
• Brand: Hot Rods

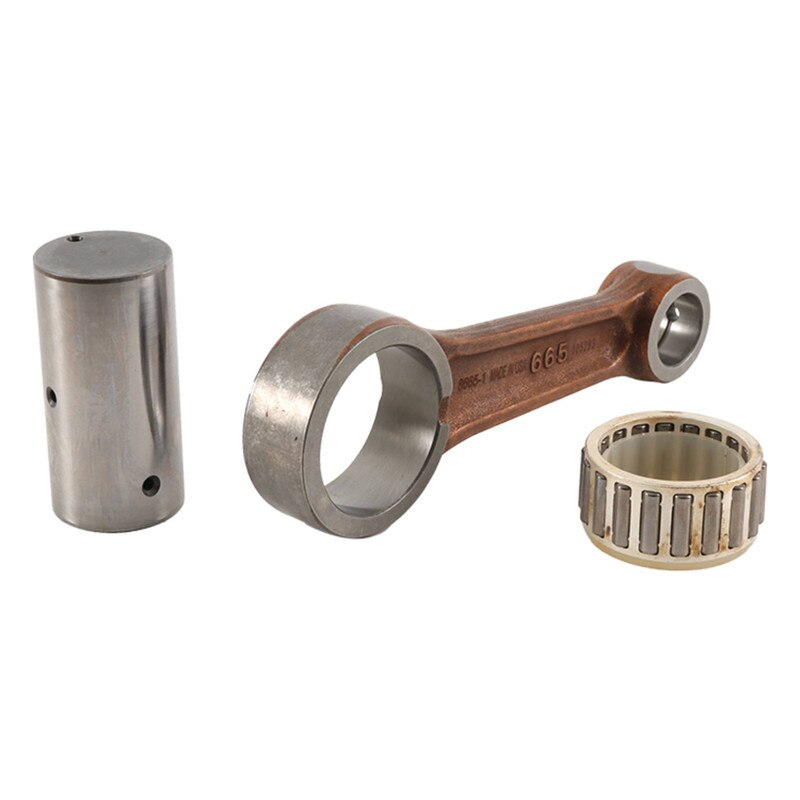

• Includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Compatible with Hot Rods and OE crankshafts.
• Made from certified 8620 AISI steel for superior strength and reliability.
• Strategically designed big end with side scalloping and vent slots to reduce high RPM bearing race distortion.
• Crankpins manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc.
• Incorporates advanced caged needle roller bearings for long-lasting high-RPM performance.
• Bronze phosphor thrust washers with silver coating for added lubricity and wear resistance.
• Technical Specifications:
• Big End Bearing (mm): 32 x 41 x 19.8
• Big End Bore (mm): 41.00
• Big End Width (mm): 19.90
• Center to Center (mm): 119.10
• Pin Diameter (mm): 32.00
• Pin Length (mm): 64.70
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 20.00
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 450cc — 2003–2006
• KTM SMR 450cc — 2005–2007
• KTM SXS 540cc — 2006
• KTM SX F 450cc — 2005–2006
• KTM SM R 450cc — 2004–2007
• KTM SX RACING 450cc — 2003–2006
• KTM SX F 450cc — 2003–2006
• KTM SXS RACING 540cc — 2006

Match your exact make, model, year and specification before ordering.
