Connecting Rod KTM SX-F450/540, Wossner P4015

Connecting Rod KTM SX-F450/540, Wossner P4015. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KTM SX-F450/540, Wossner P4015
• Part number: 56-862.WO
• Brand: Wossner
• Heavy-duty OE replacement connecting rod rebuild kit designed for high-performance applications. The uniquely designed big end features strategically located side scalloping vent slots to minimize high RPM bearing race distortion. Crankpins are made from hot-rolled alloy steel and case-hardened for durability. The kit utilizes advanced caged needle roller bearings for high RPM longevity. Thrust washers are manufactured from bronze phosphor and silver-coated for enhanced performance.

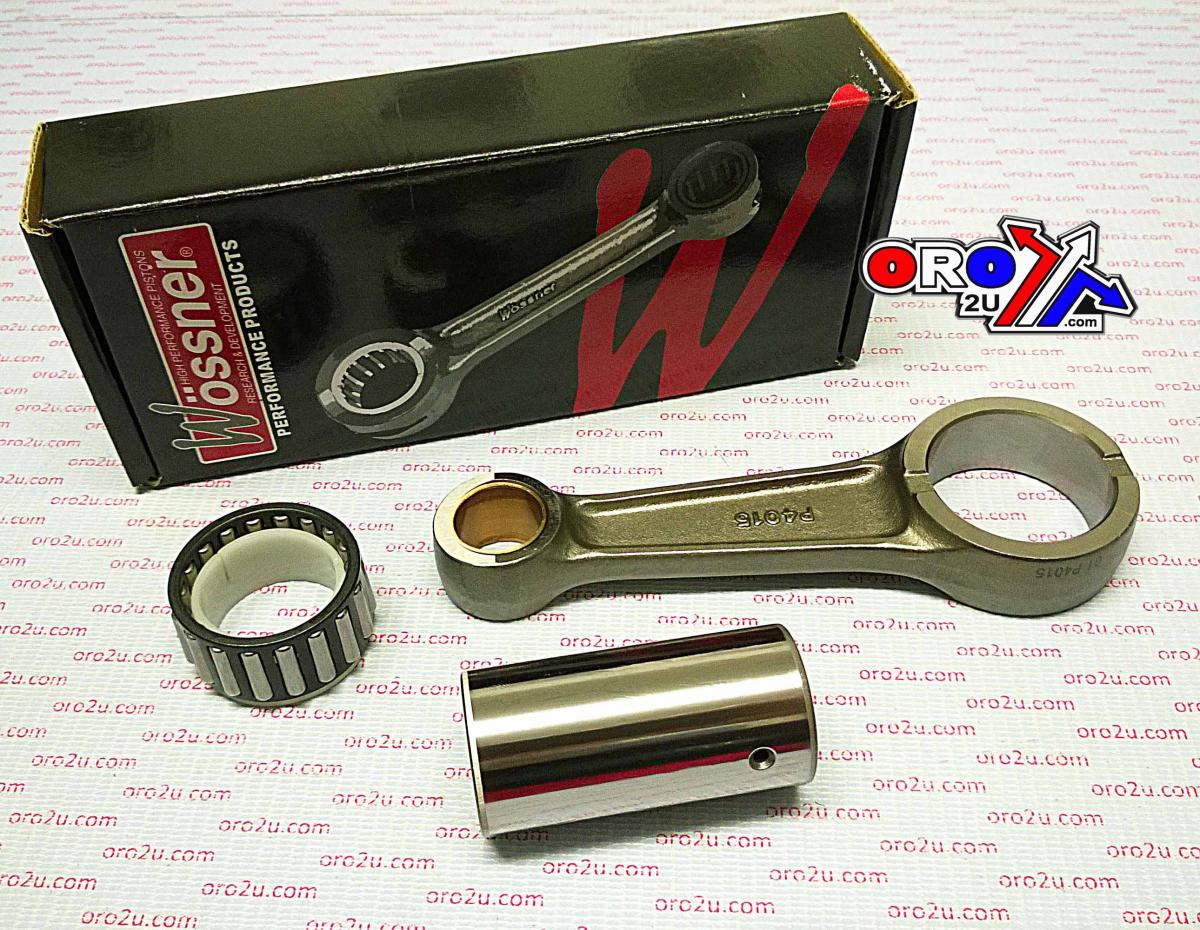

• This rod assembly is sold complete, including the rod, crankpin, crankpin bearing, top-end bearing, and thrust washers. Manufactured in Germany, it meets stringent quality standards.
• Heavy-duty connecting rod designed for durability and performance.
• Scalloped vent slots on the big end to reduce distortion at high RPM.
• Crankpins crafted from hot-rolled alloy steel and case-hardened.
• High-performance caged needle roller bearings for extended longevity.
• Silver-coated bronze phosphor thrust washers for improved reliability.
• Complete assembly including all necessary components for installation.
• Big End Bearing: 32x41x19.8 mm
• Big End Bore: 41.00 mm
• Big End Width: 19.90 mm
• Center to Center: 119.10 mm
• Pin Diameter: 32.00 mm
• Pin Length: 64.70 mm
• Small End Bearing: Bushing
• Small End Bore: 20.00 mm
• Small End Width: 19.90 mm
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 450cc — 2003–2006
• KTM SMR 450cc — 2005–2007
• KTM SXS 540cc — 2006
• KTM SX F 450cc — 2005–2006
• KTM SM R 450cc — 2004–2007
• KTM SX RACING 450cc — 2003–2006
• KTM SX F 450cc — 2003–2006
• KTM SXS RACING 540cc — 2006

Match your exact make, model, year and specification before ordering.
