Connecting Rod 98-16 KTM200, Hot Rods 8668

Connecting Rod 98-16 KTM200, Hot Rods 8668. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 98-16 KTM200, Hot Rods 8668
• Part number: 56-865.HR
• Brand: Hot Rods
• High-quality connecting rod kit designed for durability and high-performance applications. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, the rods feature advanced scalloping and vent slots in the big end to minimize bearing race distortion at high RPMs. Double-forged rods improve grain flow and dimensional consistency, while shot-peening and double-honing enhance strength for heavy-load applications.
• The small ends are double-drilled for optimal lubrication and cooling, critical for wrist pin bearings in high-stress conditions. Silver-coated thrust washers and crank pin bearings add lubricity and reliability. The kit is sold complete with all necessary components for installation.
• Made from hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc.
• Scalloped vent slots in the big end reduce high RPM bearing race distortion.
• Double-forged rods improve grain flow and dimensional stability.
• Shot-peened and double-honed for superior strength under heavy loads.
• Double-drilled small ends provide additional lubrication and cooling for wrist pin bearings.
• Silver-coated thrust washers and crank pin bearings for enhanced lubricity.

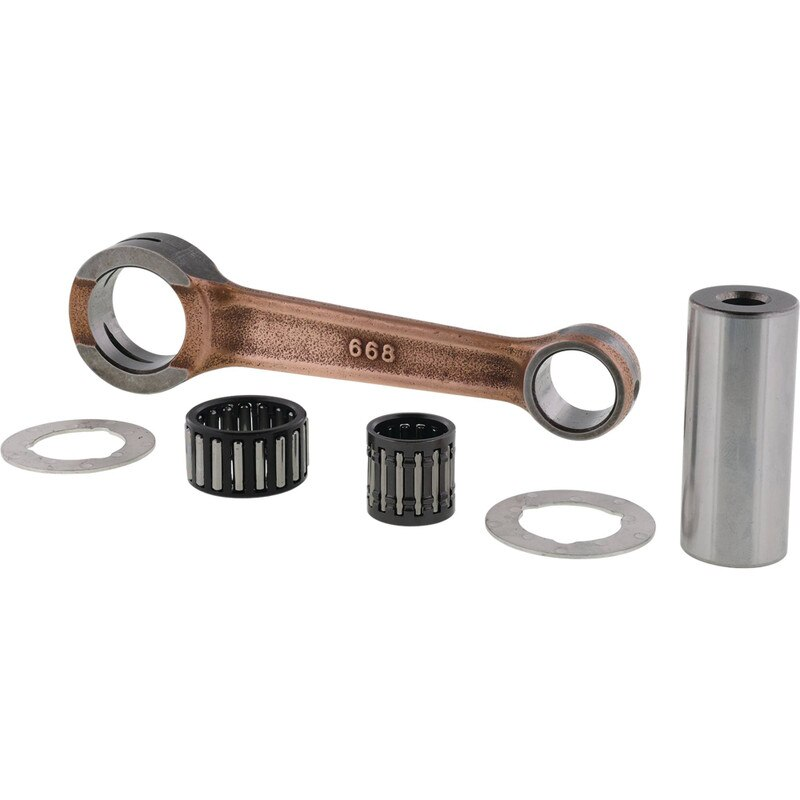

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Big End Bearing: 22x28x15.8 mm
• Big End Bore: 28.00 mm
• Big End Width: 15.90 mm
• Center to Center: 118.00 mm
• Pin Diameter: 22.00 mm
• Pin Length: 54.90 mm
• Small End Bore: 20.00 mm
• Washer Thickness: 1.00 mm
• Cross-Reference OEM Part Numbers:
• Hot Rods: 8668

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 200cc — 2003–2005
• KTM EXC 200cc — 1998–2016
• KTM SX 200cc — 2003–2006
• KTM EXC 200cc — 2003–2006
• KTM XC 200cc — 2008–2009
• KTM XC W 200cc — 2008–2015
• KTM XC W 200cc — 1998–2015
• KTM XC 200cc — 1998–2009
• KTM MXC 200cc — 2003–2006
• KTM EXC 200cc — 1998–2013

Match your exact make, model, year and specification before ordering.
