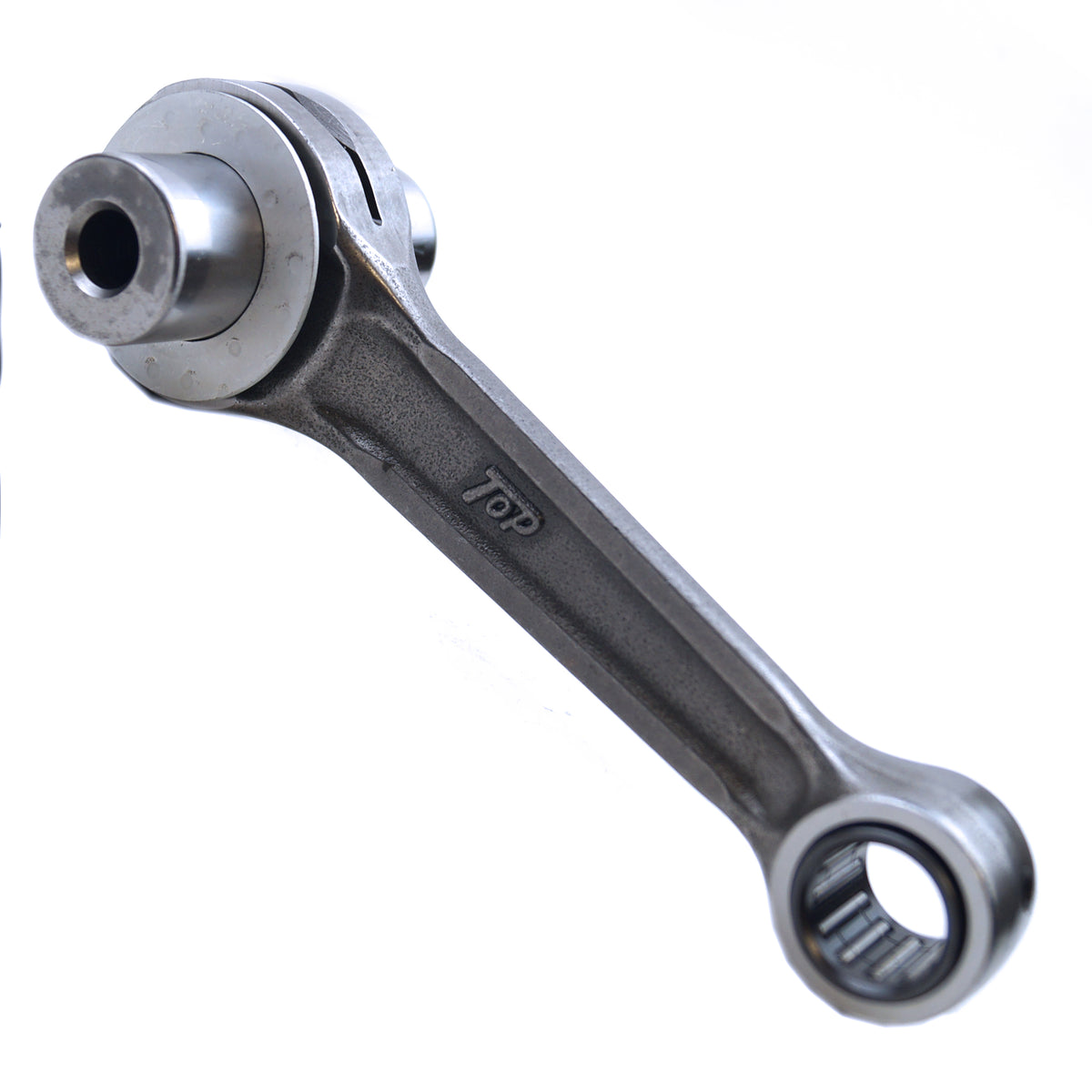

Namura Technologies Connecting Rod KTM 125-144-150, Namura RX-70013, 2011 KTM125 SX/Exc

Namura Technologies Connecting Rod KTM 125-144-150, Namura RX-70013, 2011 KTM125 SX/Exc. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KTM 125-144-150, Namura RX-70013, 2011 KTM125 SX/Exc
• Part number: 56-867.NM
• Brand: Namura Technologies
• KTM
• 125 EXC 2007 - 2016,
• 125 SX 2007 - 2015,
• 144 SX 2007 - 2008,
• 150 SX 2009 - 2015,
• 150 XC 2010 - 2013,
• HUSABERG
• TE 125 2012-2014,
• HUSQVARNA
• TE 125 2014 - 2015,
• TC 125 2014 - 2015,
• GAS-GAS
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 110
• Small End Bearing
• 15x19x19.80
• Small End Bore Ø
• 19
• Small End Width
• 15.90
• Big End Bearing
• 22x28x15.8
• Big End Bore Ø
• 28
• Big End Width
• Big End Pin Ø
• 22
• Big End Pin Length
• 54.85
• Washer Thickness
• 1.00
• CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 110, B = 15, C = 22, D = 15.9, E = 15.9, F = 54.8
• Part No. 56-867.RO (www.fdyperformance.com)
• 50330015100, ATHENA P40321047, HOTRODS 8670, PROX 03.6220, WOSSNER P2012, PSYIHC MX-09059
