Hot Rods Connecting Rod Exc 530R KTM, Hotrod 8692, 78630015144

Hot Rods Connecting Rod Exc 530R KTM, Hotrod 8692, 78630015144. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Exc 530R KTM, Hotrod 8692, 78630015144
• Part number: 56-868.HR
• Brand: Hot Rods
• High-quality connecting rod kit designed to meet or exceed OEM standards for durability and performance. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, this kit ensures exceptional strength and reliability under demanding conditions. Advanced design features minimize high-rpm bearing race distortion, while precise manufacturing enhances overall performance and longevity.
• Manufactured from hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc.
• Strategically located side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged construction improves grain flow and maintains dimensional consistency.
• Shot-peened and double-honed rods provide superior strength under heavy loads.
• Double-drilled small ends for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for improved lubricity.

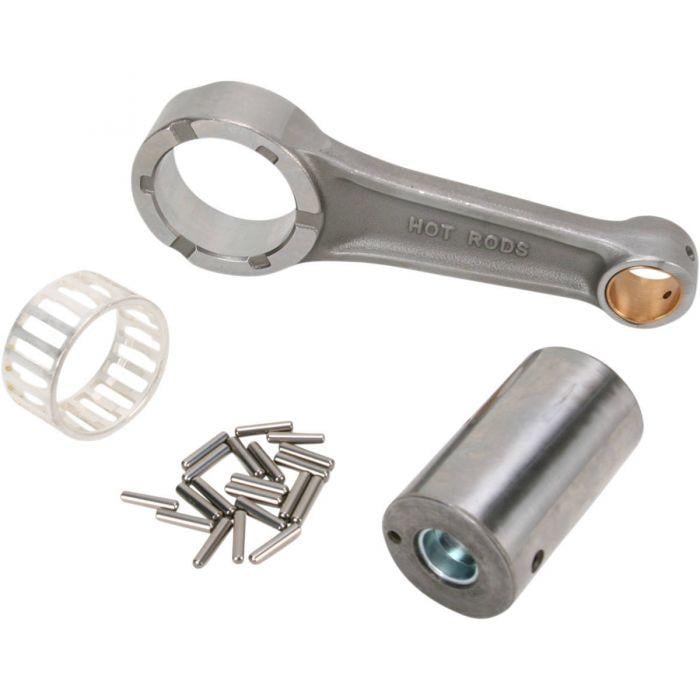

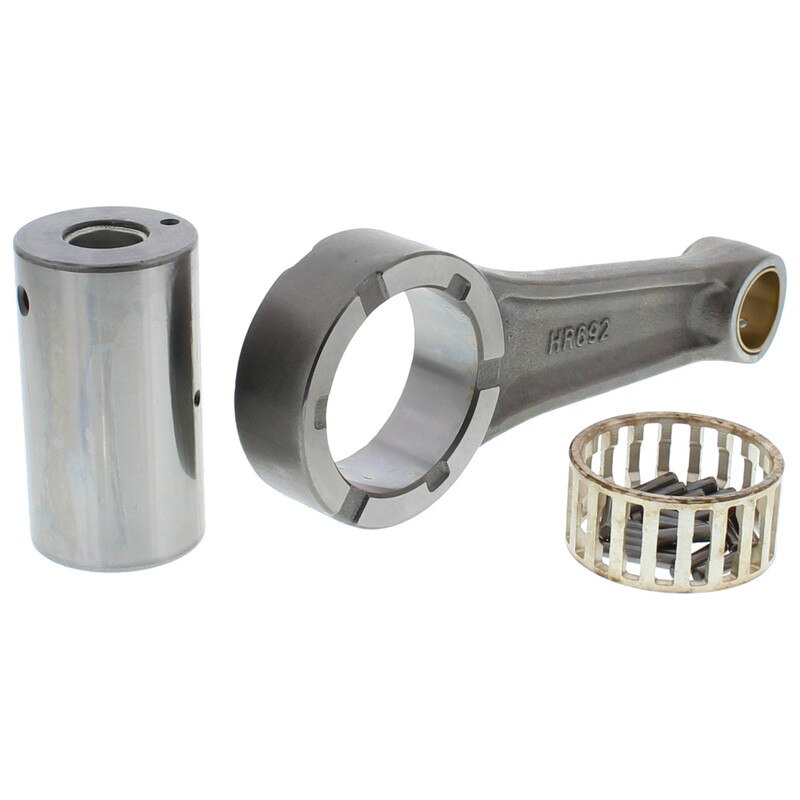

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Technical Specifications:
• Big End Bearing (mm): KU 35x42x19.8
• Big End Bore (mm): 42.00
• Big End Width (mm): 19.90
• Center to Center (mm): 120.00
• Pin Diameter (mm): 35.00
• Pin Length (mm): 62.80
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 19.00
• Cross-Reference OEM Part Numbers:
• 78630015144, WOSSNER P4047, HOTROD 8692

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM EXC 530cc — 2009–2011
• KTM EXC R 530cc — 2008–2011
• KTM EXC 530cc — 2008–2011
• KTM XC W 530cc — 2011

Match your exact make, model, year and specification before ordering.
