Hot Rods Connecting Rod KTM SX50 01-18, Hotrod 8135

Hot Rods Connecting Rod KTM SX50 01-18, Hotrod 8135. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KTM SX50 01-18, Hotrod 8135
• Part number: 56-869.HR
• Brand: Hot Rods
• Heavy-duty connecting rod kit designed as a direct OE replacement, offering superior strength and durability. Constructed from certified 8620 AISI steel, this kit provides reliable performance for high-rpm applications. Advanced design minimizes bearing race distortion and ensures long-lasting functionality. Fully compatible with Hot Rods and OE crankshafts.
• Manufactured from certified 8620 AISI steel for exceptional strength and durability.
• Big end design features strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.
• Crankpins made from hot-rolled ASTM 4115, case-hardened to 58-62 Rc.
• Latest caged needle roller bearing designs for enhanced longevity at high rpm.
• Thrust washers made from bronze phosphor and silver-coated for improved lubricity.

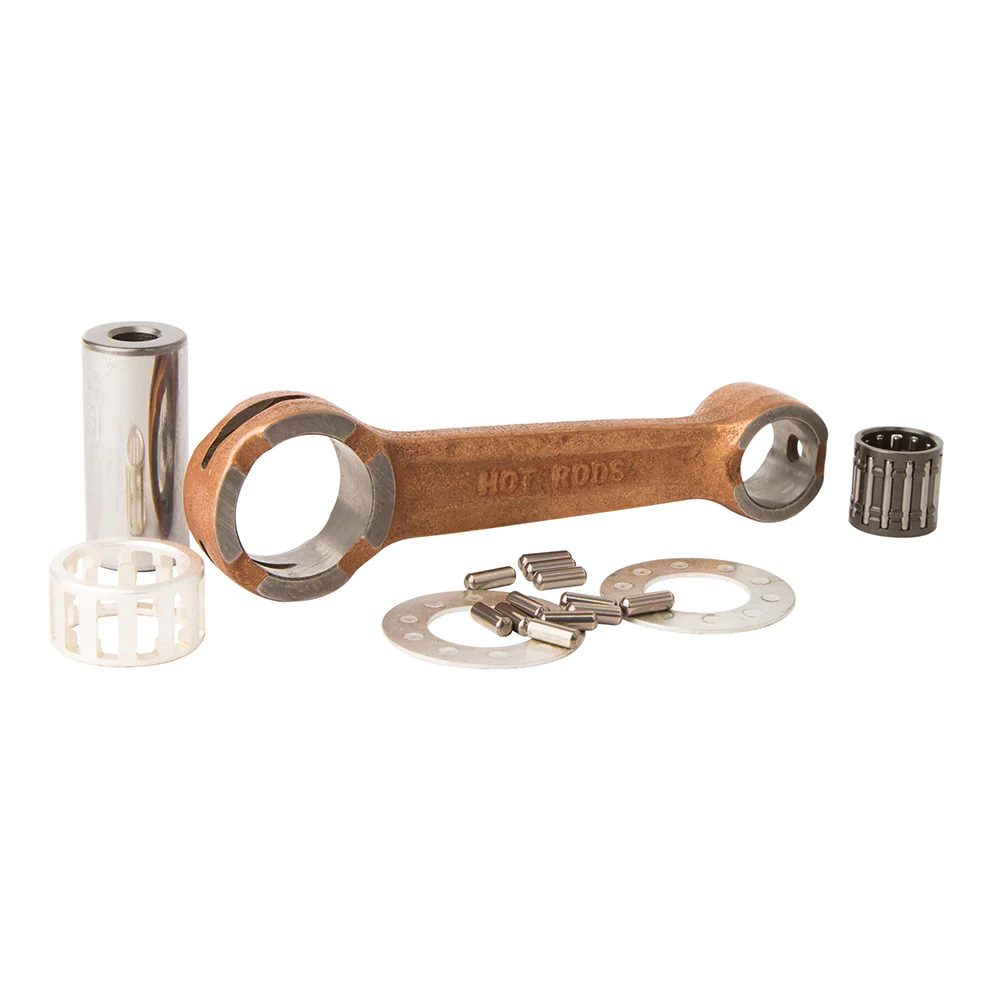

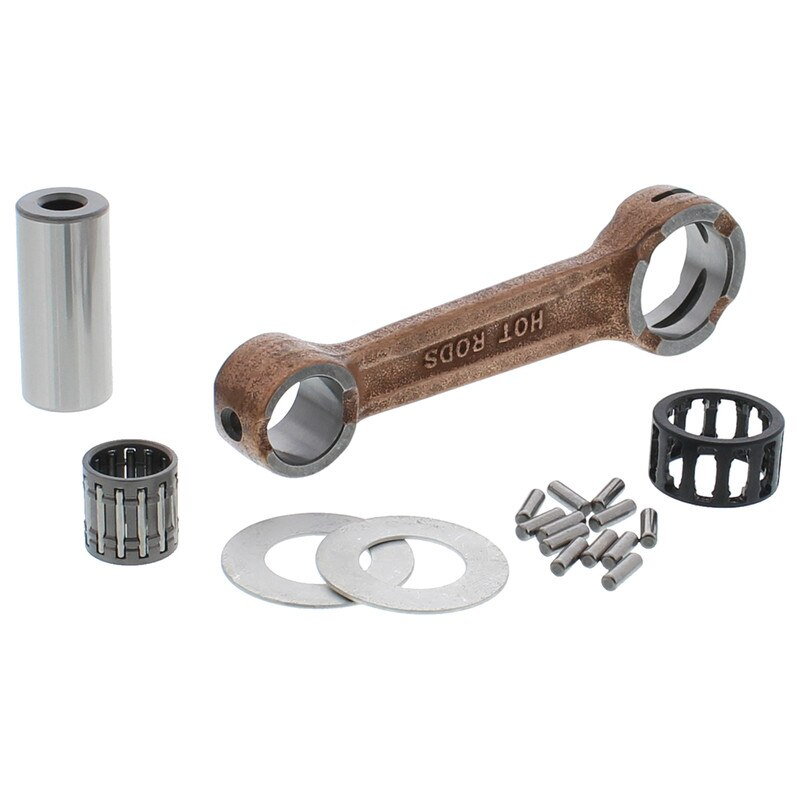

• Complete rod assembly includes connecting rod, crankpin, crankpin bearing, needle bearings, top-end bearing, and thrust washers.
• Made in the U.S.A.
• Technical Specifications:
• Big End Bore (mm): 22.00
• Big End Width (mm): Not specified
• Center to Center (mm): 85.00
• Pin Diameter (mm): 16.00
• Pin Length (mm): 36.00
• Small End Bore (mm): 15.00
• Small End Width (mm): Not specified
• Washer Thickness (mm): 0.85

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSQVARNA TC 50cc — 2017–2020
• HUSQVARNA TC 50cc — 2017–2021
• GAS-GAS MC 50cc — 2021
• KTM SX 50cc — 2001–2021
• KTM SX 50cc — 2001–2015
• KTM SX 50cc — 2001–2019
• KTM SX 50cc — 2001–2020

Match your exact make, model, year and specification before ordering.
