Connecting Rod RMZ450 08-12, Psychic RX-30009 Suzuki MX

Connecting Rod RMZ450 08-12, Psychic RX-30009 Suzuki MX. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod RMZ450 08-12, Psychic RX-30009 Suzuki MX
• Part number: 56-874.PS
• Brand: Psychic
• CONNECTING ROD REBUILD CONROD KIT NAMURA RX-30009
• RM-Z450 RMZ450 2008-2012
• RMX 450 2010-2017
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

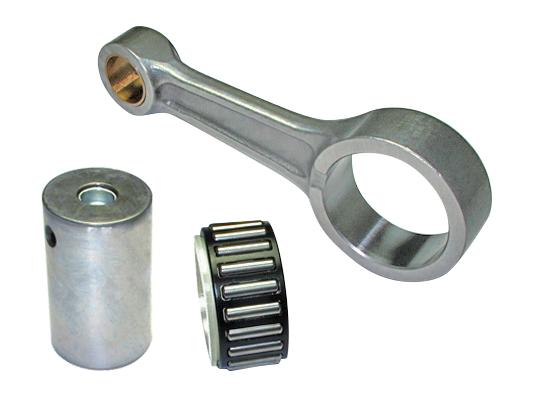

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 105.60
• Small End Bearing
• None
• Small End Bore Ø
• 19
• Small End Width
• 16.5
• Big End Bearing
• 34x42x19.80
• Big End Bore Ø
• 42
• Big End Width
• 19.75
• Big End Pin Ø
• 34
• Big End Pin Length
• 61.00
• Washer Thickness
• Technical Specifications:
• Big End Bearing (mm): 34 X 42 X 19.8
• Big End Bore (mm): 42.00
• Big End Width (mm): 19.75
• Center To Center (mm): 105.60mm
• Pin Diameter (mm): 34.00
• Pin Length (mm): 61.00
• Small End Bearing (mm): No Bushing
• Small End Bore (mm): 19.00
• Small End Width (mm): 16.50

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RMX Z 450cc — 2010–2019
• SUZUKI RM Z 450cc — 2008–2012

Match your exact make, model, year and specification before ordering.
