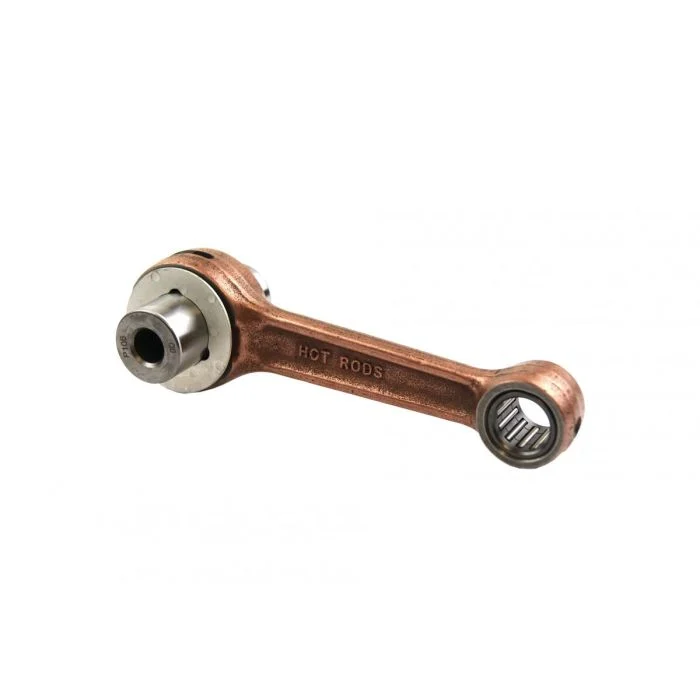

Hot Rods Connecting Rod Kit 98-02 KX125, Hotrod 8140 Kawasaki MX

Hot Rods Connecting Rod Kit 98-02 KX125, Hotrod 8140 Kawasaki MX. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 98-02 KX125, Hotrod 8140 Kawasaki MX
• Part number: 56-877.HR
• Brand: Hot Rods
• Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional durability.
• Advanced design incorporates strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.
• Double-forged rods ensure improved grain flow and dimensional consistency.
• Shot-peened and double-honed construction provides superior strength under heavy loads.
• Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings increase lubricity and longevity.

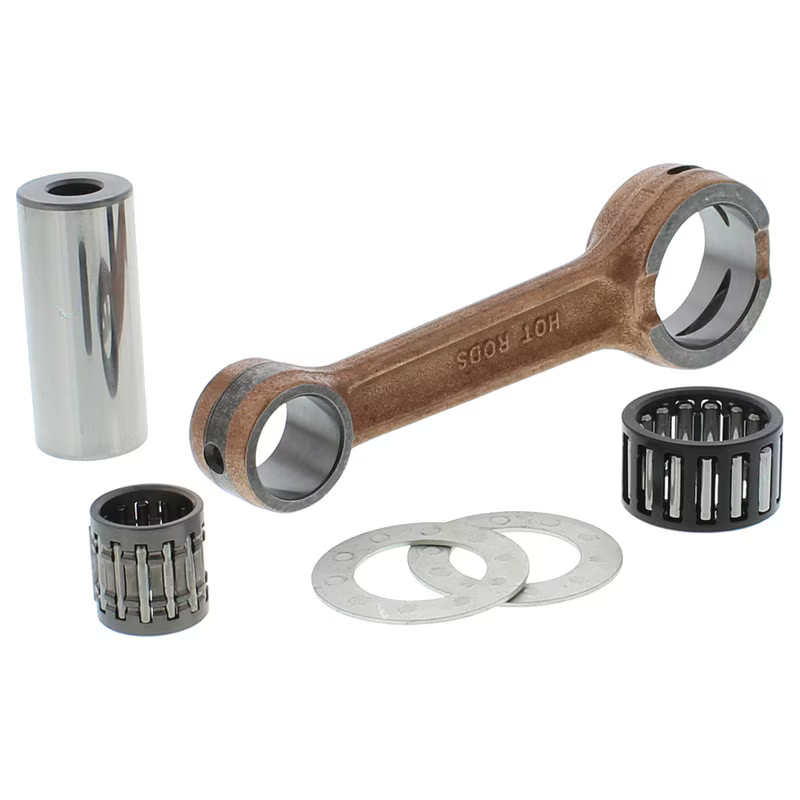

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Technical Specifications:
• Big End Bore (mm): 29.00
• Big End Width (mm): Not specified
• Center to Center (mm): 104.00
• Pin Diameter (mm): 22.00
• Pin Length (mm): 51.00
• Small End Bore (mm): 19.00
• Small End Width (mm): Not specified
• Washer Thickness (mm): 1.00
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 125cc — 1998–2002
• KAWASAKI KX 125cc — 1988–2002

Match your exact make, model, year and specification before ordering.
