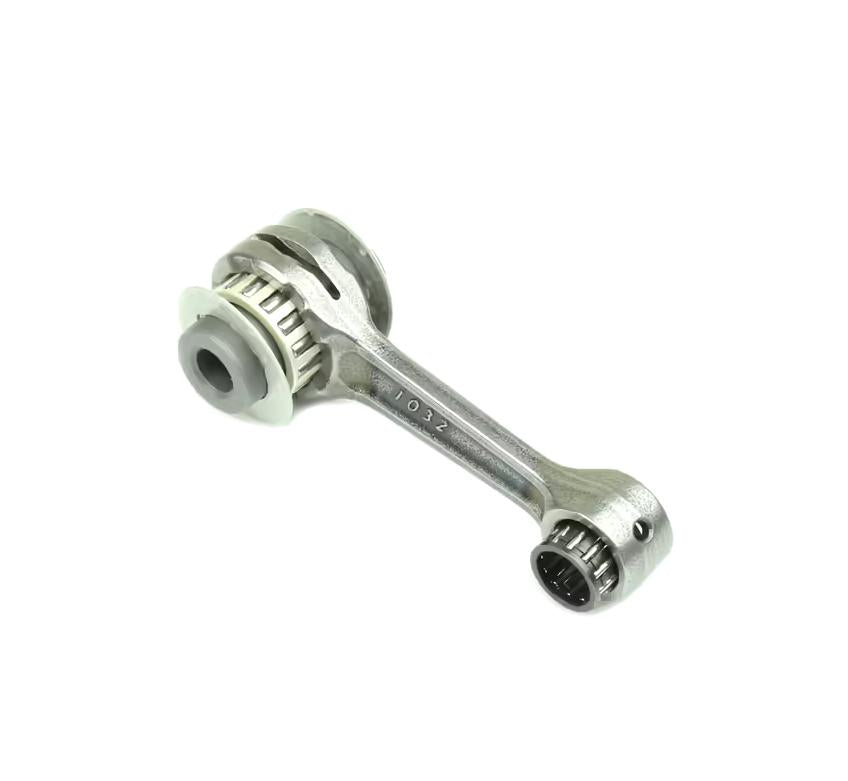

Connecting Rod Kit KX 80/85/100 98-25, Athena P40321032 Kawasaki

Connecting Rod Kit KX 80/85/100 98-25, Athena P40321032 Kawasaki. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit KX 80/85/100 98-25, Athena P40321032 Kawasaki
• Part number: 56-878.ATH
• Brand: Athena
• ATHENA Connecting Rod Offroad Kit - P40321032
• Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
• Technical features
• Big End Bore (mm) 29.00
• Big End Pin Diameter (mm) 22.00
• Big End Width (mm) 16.00
• Center To Center (mm) 92.00
• Net Weight (Kg) 0.29
• Piston Pin Diameter (mm) 18.00
• Small End Width (mm) 16.00
• Washer Thickness (mm) 1.00
• Partner Cross Reference code
• 13032-1230
• PSYCHIC MX-09028
• PROX 03.4118
• WOSSNER P2005
• HOTRODS 8147
• WISECO WPR171

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM 100cc — 2003
• KAWASAKI KX 80cc — 1998–2000
• KAWASAKI KX 85cc — 2001–2021
• KAWASAKI KX 100cc — 1998–2019
• KAWASAKI KX 100cc — 1998–2021
• KAWASAKI KX 85cc — 2001–2020
• KAWASAKI KX 100cc — 1998–2020
• KAWASAKI KX 100cc — 1998–2000
• KAWASAKI KX 85cc — 2001–2015
• KAWASAKI KX 85cc — 2001–2013
• KAWASAKI KX 100cc — 2001–2015
• KAWASAKI KX 100cc — 2001–2004
• KAWASAKI KX 80cc — 2000
• KAWASAKI KX 80cc — 1998–1999
• KAWASAKI KX 100cc — 2013
• KAWASAKI KX 100cc — 2005–2012
• KAWASAKI KX 85cc — 2020
• KAWASAKI KX 85cc — 2019
• KAWASAKI KX 85cc — 2018
• KAWASAKI KX 85cc — 2017
• KAWASAKI KX 85cc — 2014–2015
• KAWASAKI KX 100cc — 2019
• KAWASAKI KX 80cc — 1998–2016
• KAWASAKI KX 85cc — 2001–2017
• KAWASAKI KX 85cc — 1998–2016
• KAWASAKI KX 100cc — 2018
• KAWASAKI KX 100cc — 2017
• KAWASAKI KX 100cc — 2014
• KAWASAKI KX 100cc — 2015–2016
• KAWASAKI KX 100cc — 1998–2016
• KAWASAKI KX 100cc — 1998–2017

Match your exact make, model, year and specification before ordering.
