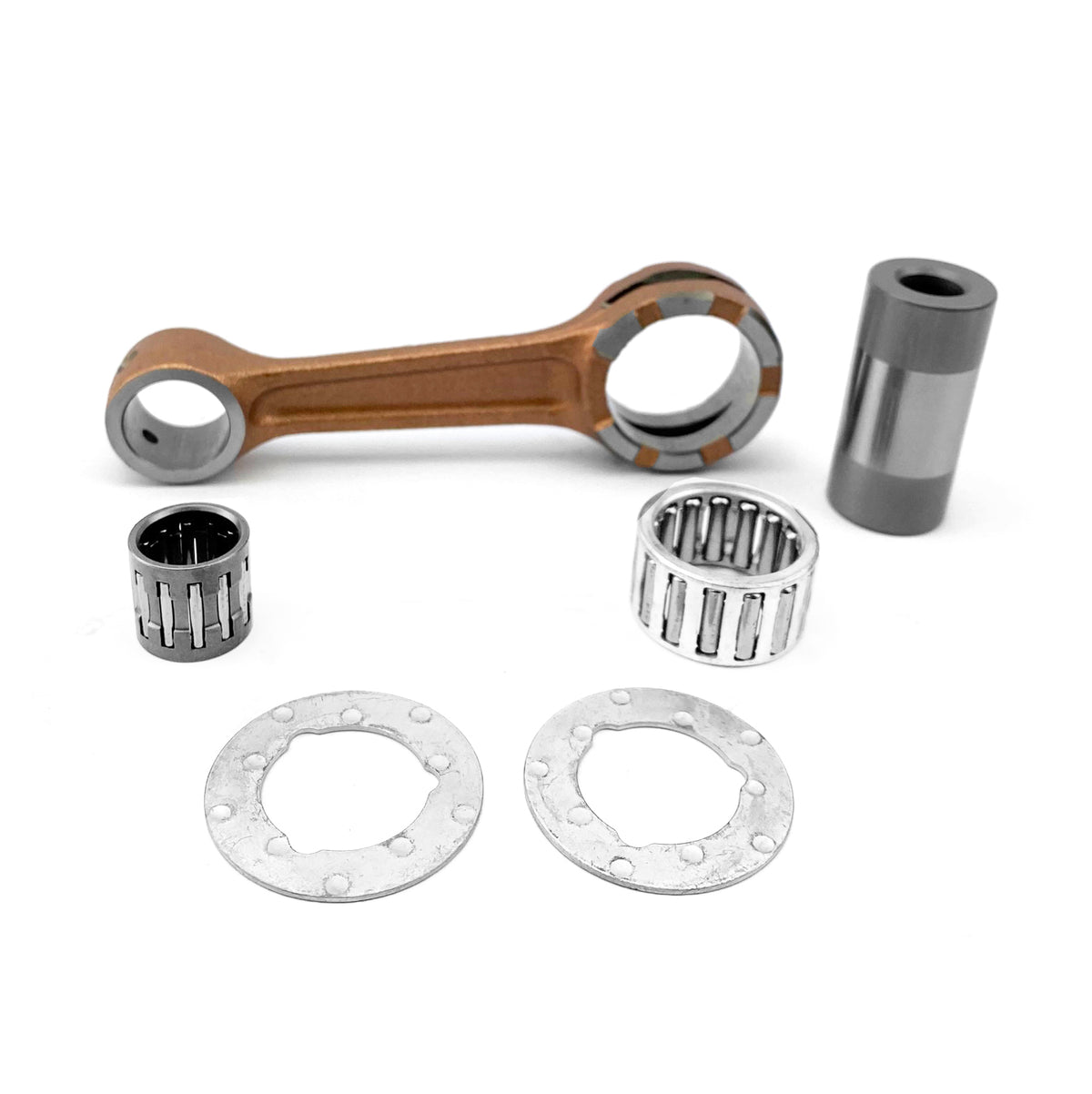

Psychic Connecting Rod Kit 98-19 KX80/85/100, Namura RX-20003, MX-09028 Kawasaki

Psychic Connecting Rod Kit 98-19 KX80/85/100, Namura RX-20003, MX-09028 Kawasaki. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 98-19 KX80/85/100, Namura RX-20003, MX-09028 Kawasaki
• Part number: 56-878.NM
• Brand: Psychic
• CONNECTING ROD CONROD REBUILD KIT
• KAWASAKI
• KX80 1998-2000,
• KX85 2001-2019,
• KX100 1998-2019,
• SUZUKI
• RM100 2003,
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 92
• Small End Bearing
• 14x18x17.20
• Small End Bore Ø
• 18
• Small End Width
• 16.00
• Big End Bearing
• 22x29x15.8
• Big End Bore Ø
• 29
• Big End Width
• Big End Pin Ø
• 22
• Big End Pin Length
• 46.00
• Washer Thickness
• 37x22x1.00
• CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 92, B = 14, C = 22, D = 16, E = 16, F = 46
• Part No. 56-878.DR (www.fdyperformance.com)
• Cross reference numbers.
• RK-5202, KAWASAKI: 13032-1230 SUZUKI: K1303-21230, HotRod 8147, 13032-1230, PSYCHIC MX-09028, PROX 03.4118, WOSSNER P2005, HOTRODS 8147, WISECO WPR171,
• Kawasaki
• 2019 Kawasaki KX100
• 2018 Kawasaki KX100
• 2017 Kawasaki KX100
• 2016 Kawasaki KX100
• 2015 Kawasaki KX100
• 2014 Kawasaki KX100
• 2013 Kawasaki KX100
• 2012 Kawasaki KX100
• 2011 Kawasaki KX100
• 2009 Kawasaki KX100
• 2008 Kawasaki KX100
• 2007 Kawasaki KX100
• 2006 Kawasaki KX100
• 2005 Kawasaki KX100
• 2004 Kawasaki KX100
• 2003 Kawasaki KX100
• 2002 Kawasaki KX100
• 2001 Kawasaki KX100
• 2000 Kawasaki KX100
• 1999 Kawasaki KX100
• 1998 Kawasaki KX100
• 2009 Kawasaki KX100 Monster Energy
• 2000 Kawasaki KX80
• 1999 Kawasaki KX80
• 1998 Kawasaki KX80
• 2019 Kawasaki KX85
• 2018 Kawasaki KX85
• 2017 Kawasaki KX85
• 2016 Kawasaki KX85
• 2015 Kawasaki KX85
• 2014 Kawasaki KX85
• 2013 Kawasaki KX85
• 2012 Kawasaki KX85
• 2011 Kawasaki KX85
• 2010 Kawasaki KX85
• 2009 Kawasaki KX85
• 2008 Kawasaki KX85
• 2007 Kawasaki KX85
• 2006 Kawasaki KX85
• 2005 Kawasaki KX85
• 2004 Kawasaki KX85
• 2003 Kawasaki KX85
• 2002 Kawasaki KX85
• 2001 Kawasaki KX85
• Suzuki
• 2003 Suzuki RM100

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
