Hot Rods Connecting Rod Kit 96-02 RM250, Hotrod 8141

Hot Rods Connecting Rod Kit 96-02 RM250, Hotrod 8141. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 96-02 RM250, Hotrod 8141
• Part number: 56-879.HR
• Brand: Hot Rods
• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for durability.
• Strategically located side scalloping and vent slots minimize high-rpm bearing race distortion.
• Double-forged rods enhance grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Double-drilled small ends improve lubrication and cooling of the wrist pin bearing, crucial for close piston crown proximity.
• Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce friction.

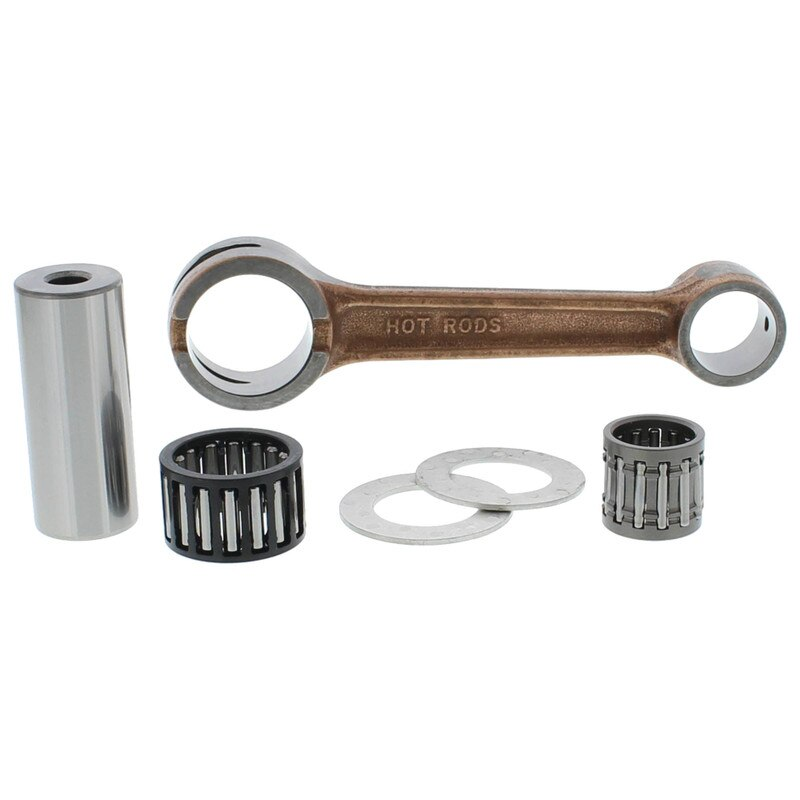

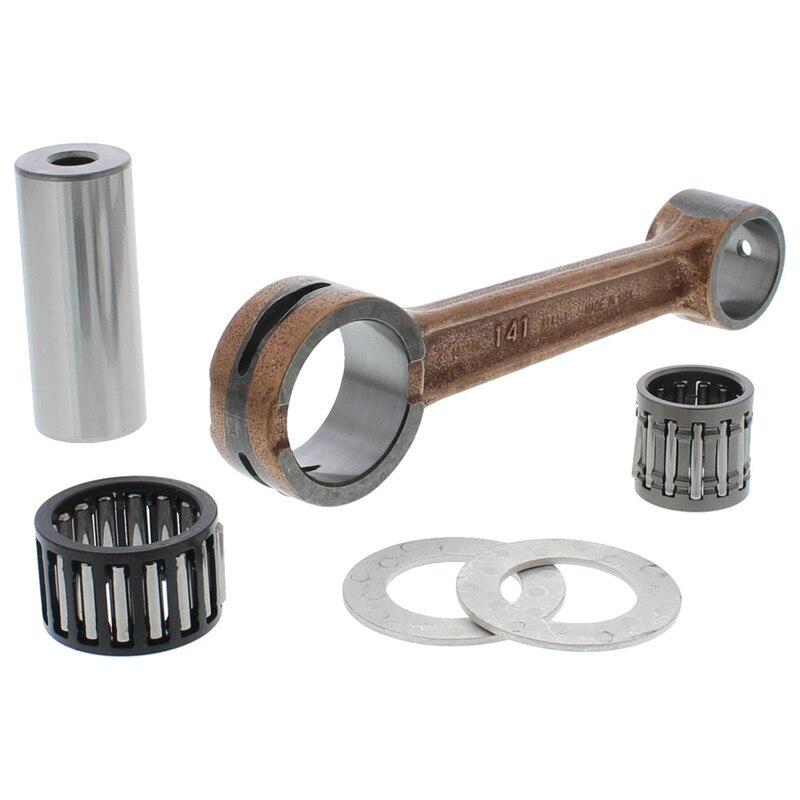

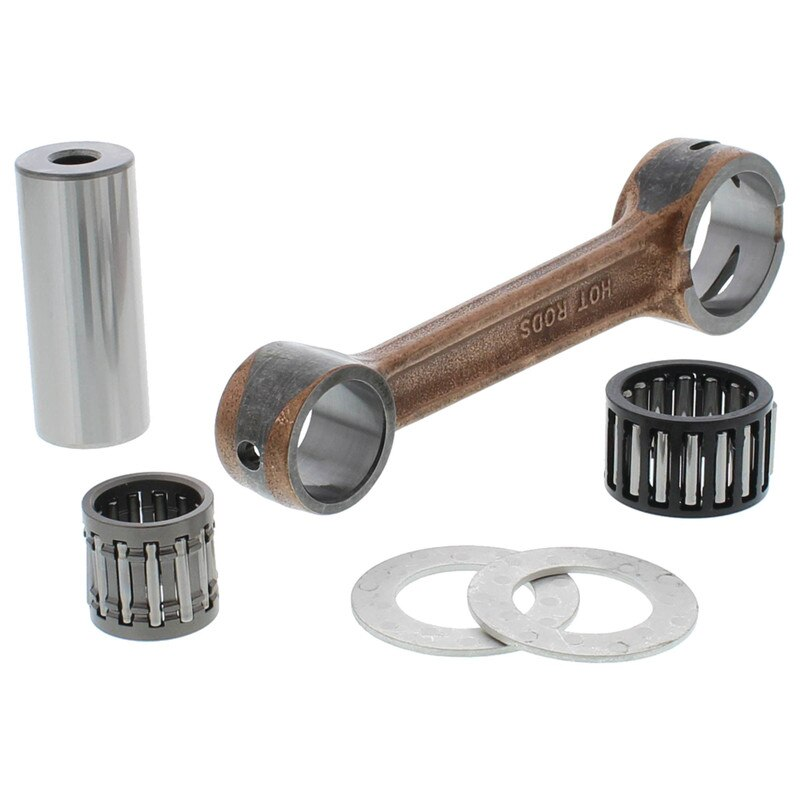

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Cross-Reference OEM Part Numbers:
• MX-09054
• 12161-37E00
• WPR161
• Hot Rods 8141
• Wossner P2026
• Technical Specifications:
• Big End Bearing (mm): 24 x 32 x 19.7
• Big End Bore (mm): 32.00
• Big End Width (mm): Not specified
• Center-to-Center (mm): 125.50
• Pin Diameter (mm): 24.00
• Pin Length (mm): 57.90
• Small End Bearing (mm): Not specified
• Small End Bore (mm): 23.00
• Small End Width (mm): Not specified
• Washer Thickness (mm): 1.50

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM 250cc — 1996–2002

Match your exact make, model, year and specification before ordering.
