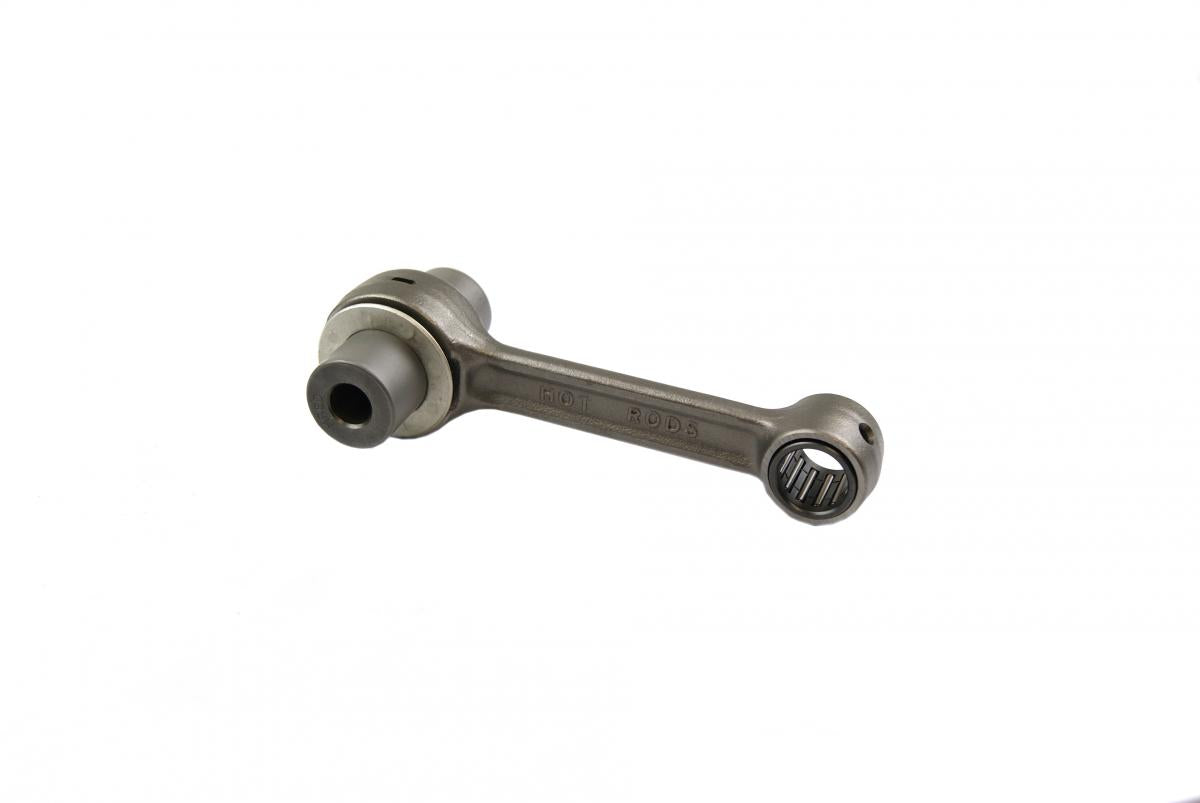

Connecting Rod 97-98 RM125, Hot Rods 8142 Suzuki MX

Connecting Rod 97-98 RM125, Hot Rods 8142 Suzuki MX. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 97-98 RM125, Hot Rods 8142 Suzuki MX
• Part number: 56-882.HR
• Brand: Hot Rods
• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength.
• Strategically located side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior durability under heavy loads.
• Double-drilled small ends improve lubrication and cooling of the wrist pin bearing, critical for close piston crown proximity.
• Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce friction.

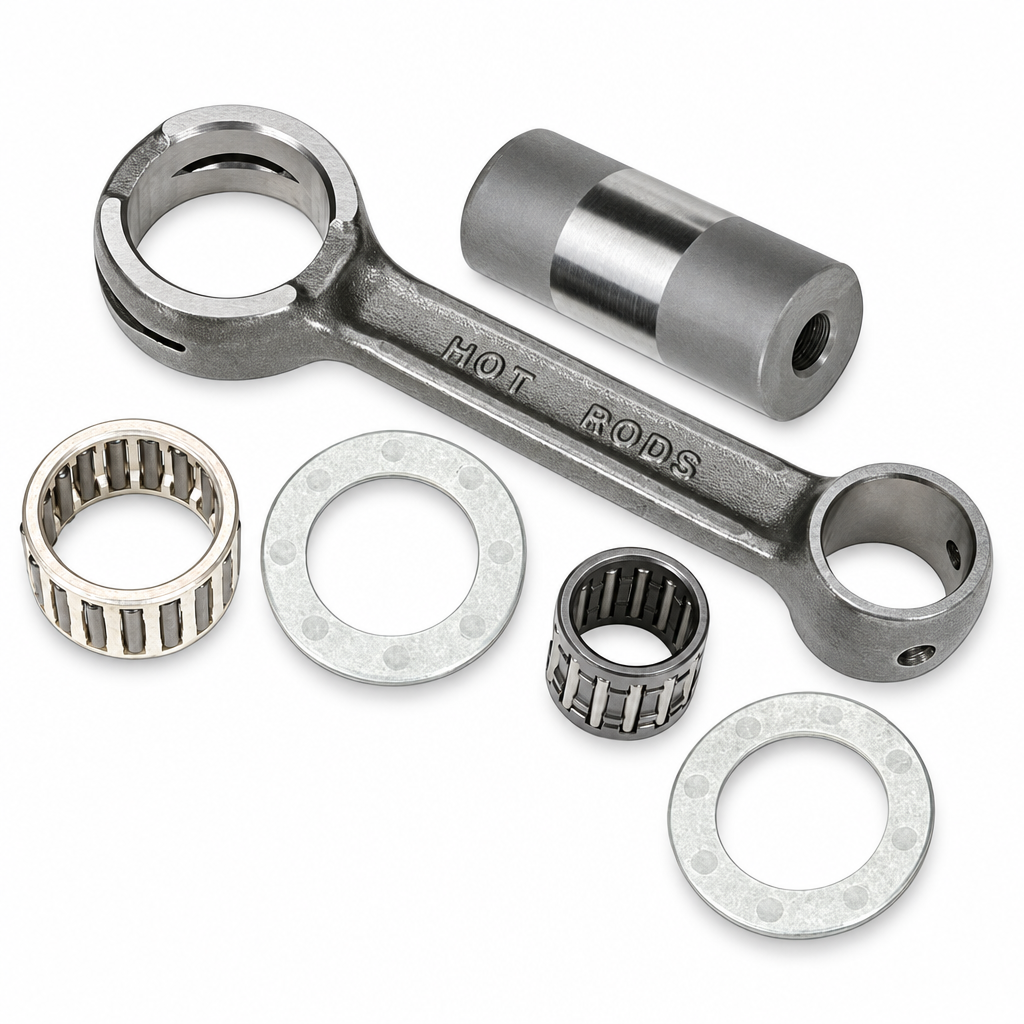

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Cross-Reference OEM Part Numbers:
• Technical Specifications:
• Big End Bore (mm): 28.00
• Big End Width (mm): Not specified
• Center-to-Center (mm): 100.00
• Pin Diameter (mm): 22.00
• Pin Length (mm): 52.90
• Small End Bore (mm): 19.00
• Small End Width (mm): Not specified
• Washer Thickness (mm): 1.60

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM 125cc — 1997–1998

Match your exact make, model, year and specification before ordering.
