Connecting Rod KTM 250 300, Psychic MX-09099

Connecting Rod KTM 250 300, Psychic MX-09099. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KTM 250 300, Psychic MX-09099
• Part number: 56-894.DR
• Brand: Psychic
• Hot-rolled ASTM and case-hardened materials for enhanced durability.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed rods for increased strength under load.
• Double-drilled small end for superior lubrication and cooling.
• Silver-coated thrust washers and crank pin bearings for added lubricity.

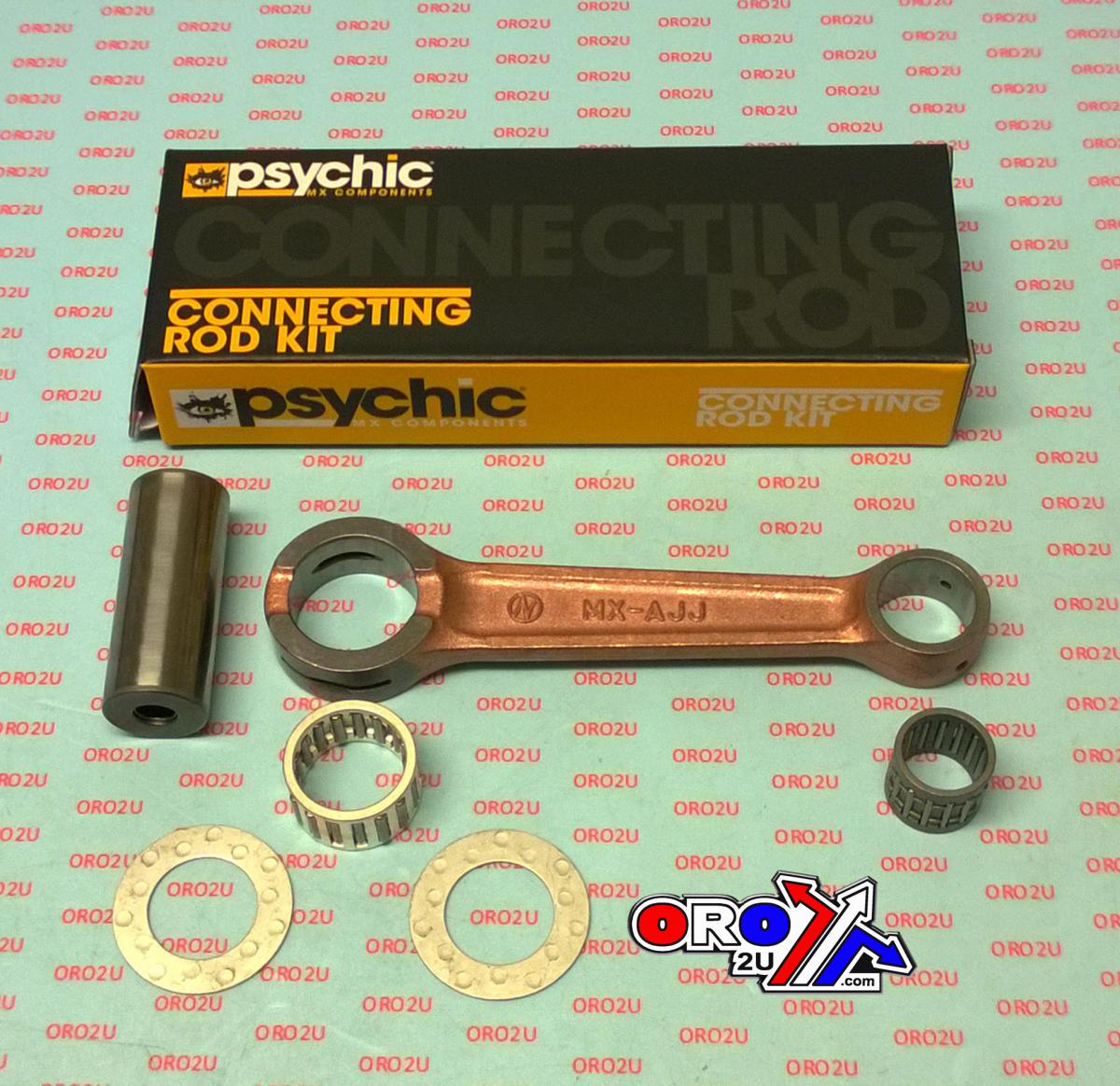

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Centre-to-Centre Distance: 132 mm
• Small End Bearing Dimensions: 18x22x19.8 mm
• Small End Bore Ø: 22 mm
• Small End Width: 17.00 mm
• Big End Bearing Dimensions: 24x30x16.8 mm
• Big End Bore Ø: 30 mm
• Big End Width: 16.90 mm
• Big End Pin Ø: 24 mm
• Big End Pin Length: 59.90 mm
• Washer Thickness: 1.00 mm
• Cross-Reference OEM Part Numbers:
• 54630015044, HOTRODS 8111, PROX 03.6311, WOSSNER P2024

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 300cc — 1990–2003
• KTM EXC 300cc — 1990–2003
• KTM XC 250cc — 1990–1999
• KTM SX 250cc — 1990–1999
• KTM EXC 250cc — 1990–1999
• KTM XCR W 250cc — 1990–1999
• KTM XCF W 250cc — 1990–1999
• KTM XCF 250cc — 1990–1999
• KTM XC WE 250cc — 1990–1999
• KTM XC W E 250cc — 1990–1999
• KTM XC W 250cc — 1990–1999
• KTM XC W 300cc — 1990–1999
• KTM XC FW 250cc — 1990–1999
• KTM XC F 250cc — 1990–1999
• KTM XC F 300cc — 1990–1999
• KTM XC 300cc — 1990–1999
• KTM SXS 250cc — 1990–1999
• KTM SX 300cc — 1990–1999
• KTM MXC 250cc — 1990–1999
• KTM MXC 300cc — 1990–1999
• KTM MX 250cc — 1990–1999
• KTM MX 300cc — 1990–1999
• KTM GS 250cc — 1990–1999
• KTM GS 300cc — 1990–1999
• KTM FREERIDE 250cc — 1990–1999
• KTM EXC R 250cc — 1990–1999
• KTM EXC G 250cc — 1990–1999
• KTM EXC F 250cc — 1990–1999
• KTM EXC E 300cc — 1990–1999
• KTM EXC 300cc — 1990–1999
• KTM EGS 250cc — 1990–1999
• KTM EGS 300cc — 1990–1999
• KTM CROSS 250cc — 1990–1999

Match your exact make, model, year and specification before ordering.
