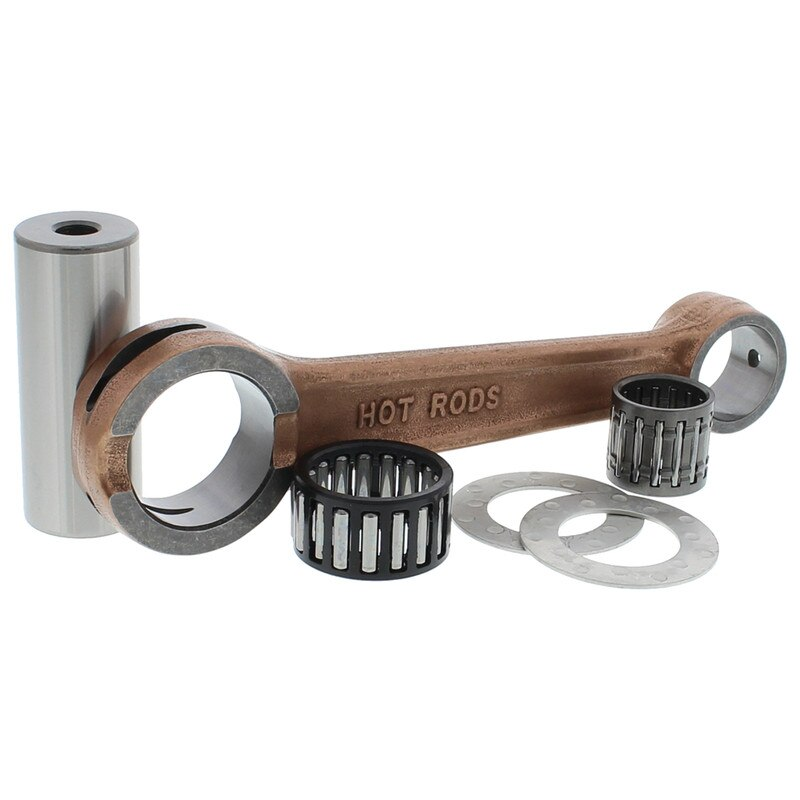

Connecting Rod KTM 250 300, Hot Rods 8111

Connecting Rod KTM 250 300, Hot Rods 8111. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KTM 250 300, Hot Rods 8111
• Part number: 56-894.HR
• Brand: Hot Rods
• High-quality replacement connecting rod kit designed for performance and durability. Manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc, ensuring strength and reliability under demanding conditions. Features advanced design elements like strategically located side scalloping and vent slots to reduce high RPM bearing race distortion. Double-forged construction improves grain flow and dimensional consistency, while shot-peening and double-honing enhance strength under heavy loads. Small ends are double-drilled to improve lubrication and cooling, particularly important for wrist pin bearings under high-stress applications. Thrust washers and crank pin bearings are silver-coated for added lubricity. Each kit is supplied complete with a rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• High-strength ASTM 4115 material, case-hardened to 58-62 Rc.
• Side scalloping and vent slots minimize distortion at high RPM.
• Double-forged for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for superior strength under load.
• Double-drilled small ends enhance lubrication and cooling.
• Silver-coated thrust washers and crank pin bearings for added lubricity.
• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Center-to-Center Length: 132 mm
• Pin Diameter: 24.00 mm
• Pin Length: 59.90 mm
• Big End Bearing: 24x31x17 mm
• Big End Bore: 31.00 mm
• Big End Width: 16.90 mm
• Small End Bearing: 18x22x20 mm
• Cross-Reference OEM Part Numbers:
• 54630015044

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 300cc — 1990–2003
• KTM EXC 300cc — 1990–2003
• KTM XC 250cc — 1990–1999
• KTM SX 250cc — 1990–1999
• KTM EXC 250cc — 1990–1999
• KTM XCR W 250cc — 1990–1999
• KTM XCF W 250cc — 1990–1999
• KTM XCF 250cc — 1990–1999
• KTM XC WE 250cc — 1990–1999
• KTM XC W E 250cc — 1990–1999
• KTM XC W 250cc — 1990–1999
• KTM XC W 300cc — 1990–1999
• KTM XC FW 250cc — 1990–1999
• KTM XC F 250cc — 1990–1999
• KTM XC F 300cc — 1990–1999
• KTM XC 300cc — 1990–1999
• KTM SXS 250cc — 1990–1999
• KTM SX 300cc — 1990–1999
• KTM MXC 250cc — 1990–1999
• KTM MXC 300cc — 1990–1999
• KTM MX 250cc — 1990–1999
• KTM MX 300cc — 1990–1999
• KTM GS 250cc — 1990–1999
• KTM GS 300cc — 1990–1999
• KTM FREERIDE 250cc — 1990–1999
• KTM EXC R 250cc — 1990–1999
• KTM EXC G 250cc — 1990–1999
• KTM EXC F 250cc — 1990–1999
• KTM EXC E 300cc — 1990–1999
• KTM EXC 300cc — 1990–1999
• KTM EGS 250cc — 1990–1999
• KTM EGS 300cc — 1990–1999
• KTM CROSS 250cc — 1990–1999

Match your exact make, model, year and specification before ordering.
