Dirt Racing Connecting Rod TS185 Suzuki

Dirt Racing Connecting Rod TS185 Suzuki. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod TS185 Suzuki
• Part number: 56-895.DR
• Brand: Dirt Racing
• TS185 ALL.
• Connecting Conrod rod rebuild kit. PSYCHIC MC-09462
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

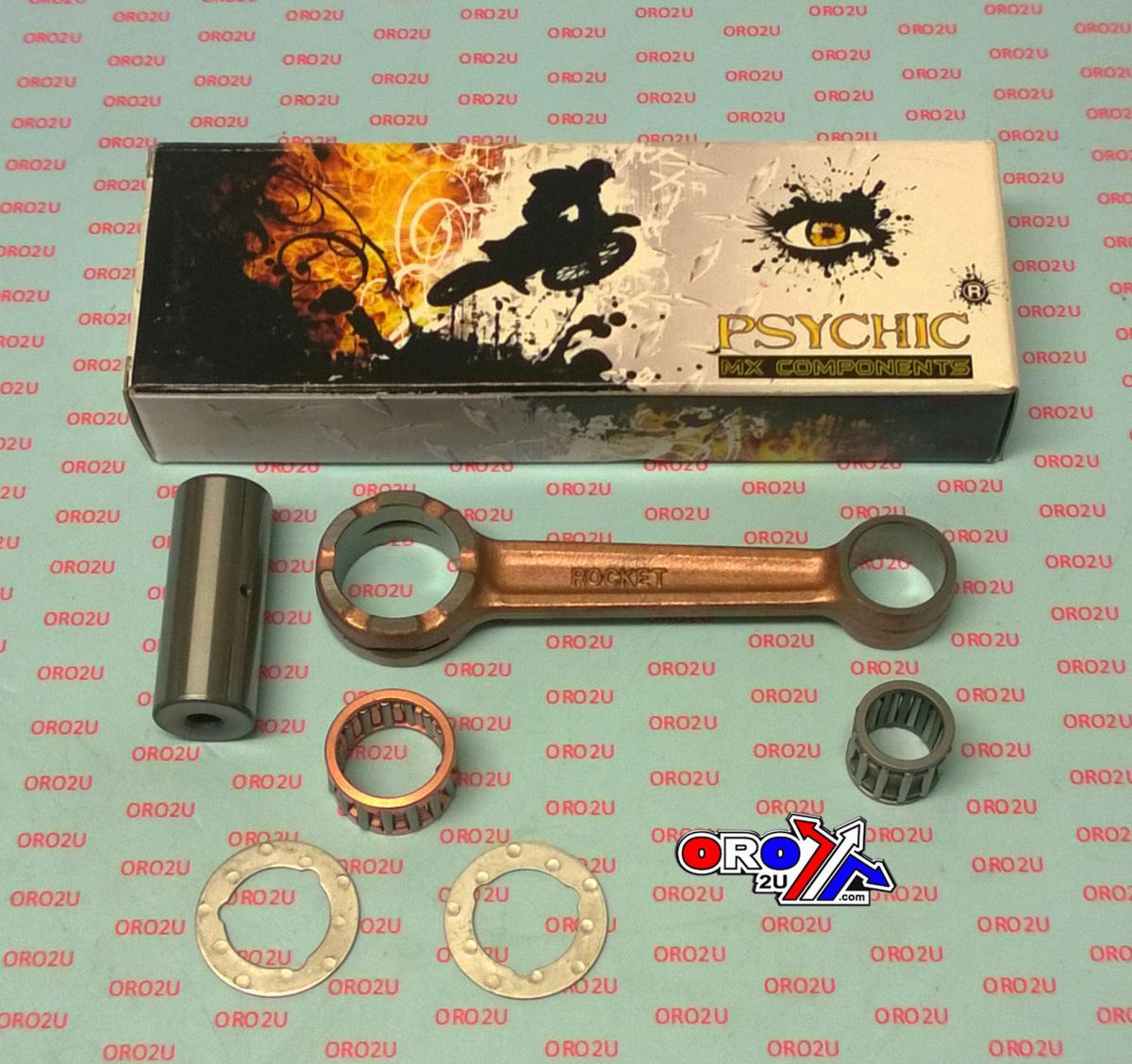

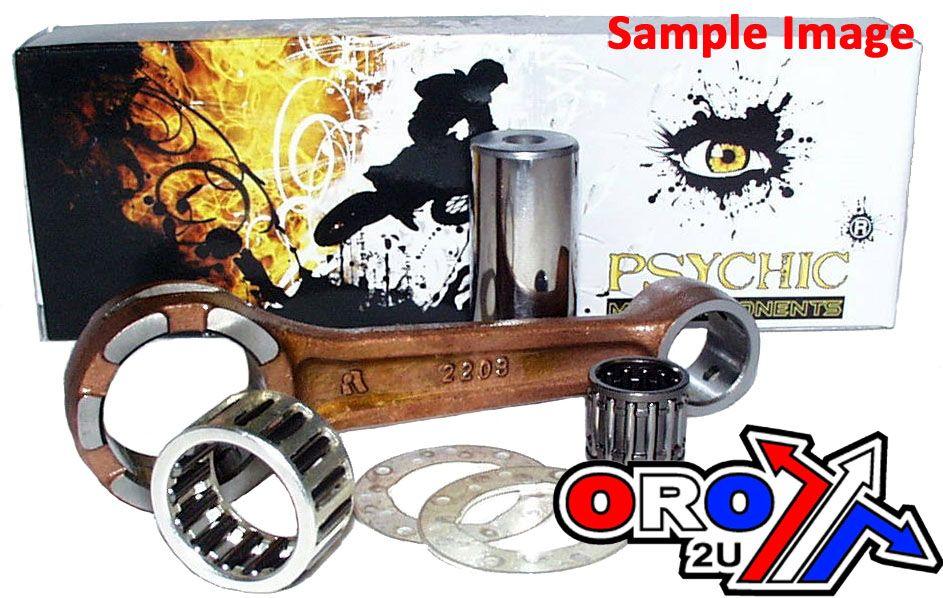

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 110
• Small End Bearing
• 16x21x19.6
• Small End Bore Ø
• 21
• Small End Width
• 17
• Big End Bearing
• 22x28x16
• Big End Bore Ø
• 28
• Big End Width
• Big End Pin Ø
• 22
• Big End Pin Length
• 56
• Washer Thickness
• 22x39x1.00
• OverAll Length 145mm
• Part No. 56-895.DR (www.fdyperformance.com)
• PROX 03.3018, CRK054, 0637165,
• SMALL END BEARING16X21X19.6BR 09263-16015
• CONECTING ROD 12161-41500
• WASHER 09160-22010
• PIN, CRANK 12211-29001
• BIG END BEARING RN 22X28X16 09263-22032

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI TS 185cc — 1971–2015

Match your exact make, model, year and specification before ordering.
