Connecting Rod 92-93 KX125, Hot Rods 8102 79-89 KX125

Connecting Rod 92-93 KX125, Hot Rods 8102 79-89 KX125. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 92-93 KX125, Hot Rods 8102 79-89 KX125
• Part number: 56-896.HR
• Brand: Hot Rods
• Manufactured from ASTM 4115 material, case-hardened to 58-62 Rc.
• Side scalloping and vent slots reduce high RPM bearing race distortion.
• Double-forged construction for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for superior strength under load.
• Double-drilled small ends enhance lubrication and cooling.
• Silver-coated thrust washers and crank pin bearings for added lubricity.

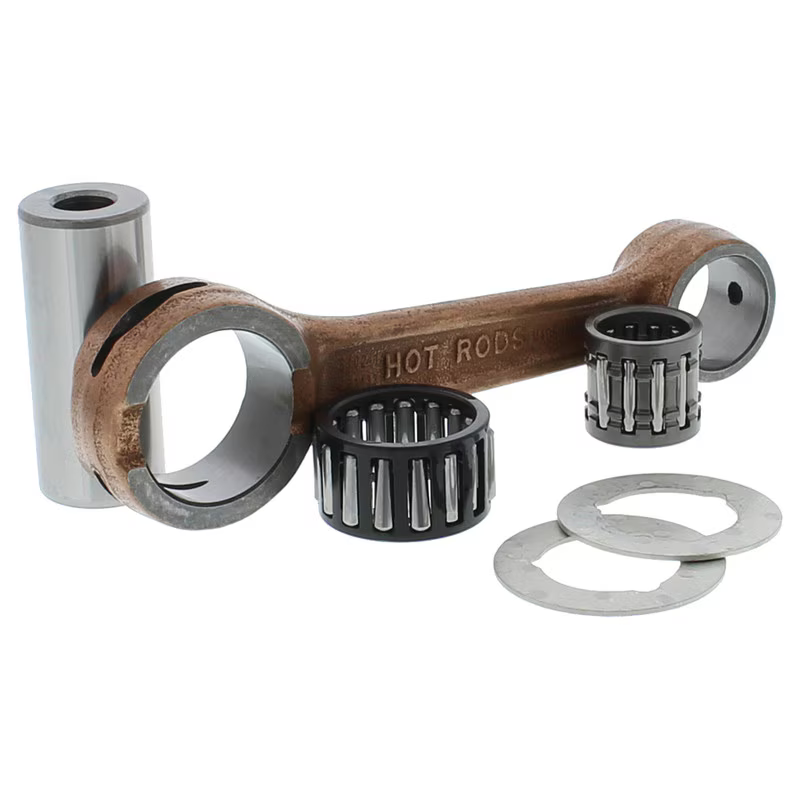

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Center-to-Center Length: 106.00 mm
• Pin Diameter: 22.00 mm
• Pin Length: 50.90 mm
• Big End Bore: 29.00 mm
• Small End Bore: 21.00 mm
• Washer Thickness: 1.00 mm
• Cross-Reference OEM Part Numbers:
• 13032-1179
• 13032-1200
• 13044-5008
• 13044-5009
• 13044-5017
• 13044-5018
• 13044-5030
• 13044-5035
• 13044-5047
• 13044-5065

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 125cc — 1992–1993
• KAWASAKI KDX 200cc — 1986–1988
• KAWASAKI KX 125cc — 1978–1981
• KAWASAKI KX 125cc — 1982–1987
• KAWASAKI KX 125cc — 1978–1987
• KAWASAKI KX 125cc — 1979–1987

Match your exact make, model, year and specification before ordering.
