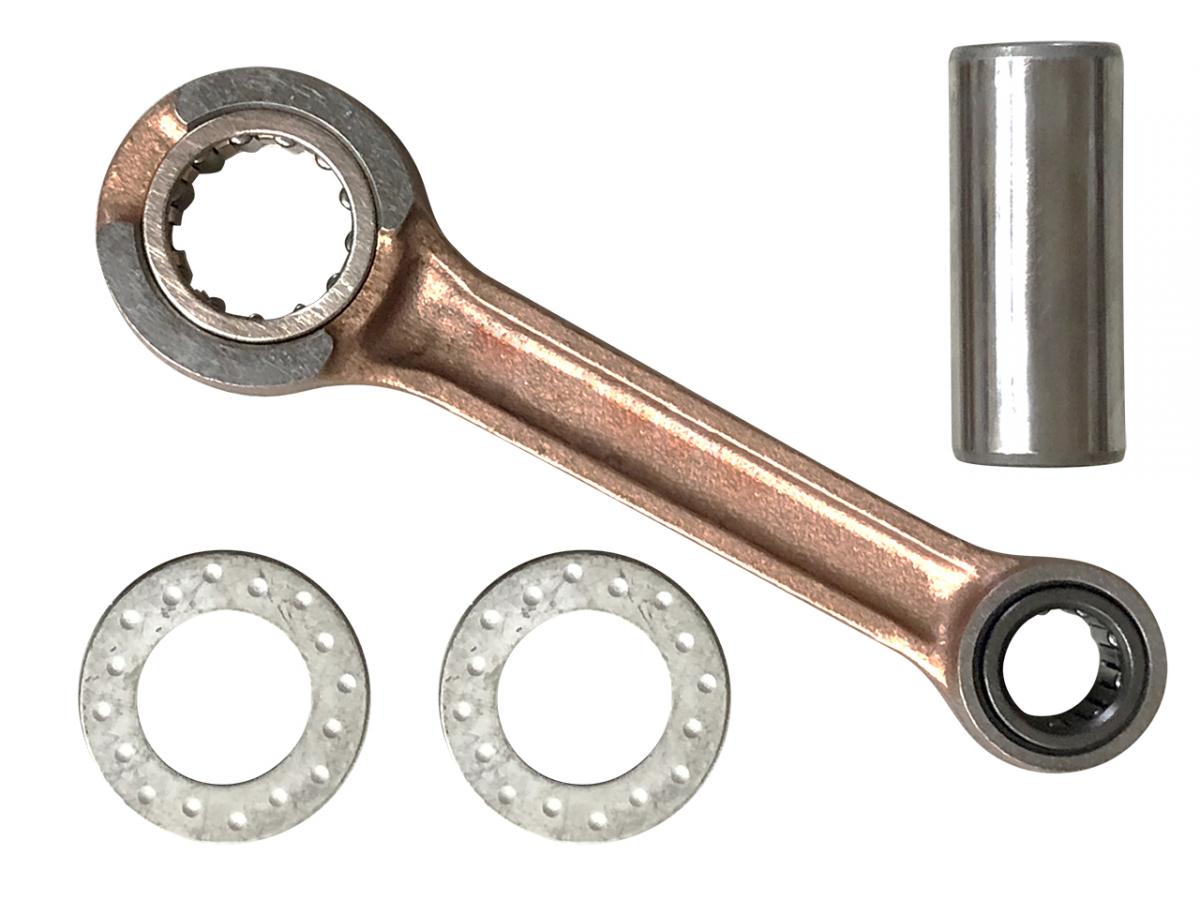

Connecting Rod 1980-83 YZ60, YZ80, Psychic MX-09615 Yamaha Kit

Connecting Rod 1980-83 YZ60, YZ80, Psychic MX-09615 Yamaha Kit. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 1980-83 YZ60, YZ80, Psychic MX-09615 Yamaha Kit
• Part number: 56-8972.PS
• Brand: Psychic
• Heavy-duty OE replacement connecting rods.
• Certified chrome alloy steel for exceptional strength.
• Crankpins made from hot-rolled ASTM steel, case-hardened for durability.
• High-performance caged needle roller bearing design for longevity at high RPMs.
• Thrust washers manufactured from bronze phosphor and silver-coated for enhanced performance.
• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as required.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220
• Centre-to-Centre Length: 94 mm
• Small End Bearing Dimensions: 12 x 17 x 14.8 mm
• Small End Bore Ø: 17 mm
• Small End Width: 14 mm
• Big End Bearing Dimensions: 18 x 24 x 13.8 mm
• Big End Bore Ø: 24 mm
• Big End Width: 14 mm
• Big End Pin Ø: 18 mm
• Big End Pin Length: 43.5 mm
• Washer Thickness: Not specified
• Cross-Reference OEM Part Numbers:
• PSYCHIC MX-09615, RY-2223
• Part Number: PSYCHIC MX-09615

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZ 60cc — 1981–1983
• YAMAHA YZ 80cc — 1980–1983

Match your exact make, model, year and specification before ordering.
