Namura Technologies Connecting Rod YFM450 Grizzly, Bronco AT-09249 Kodiak Rhino

Namura Technologies Connecting Rod YFM450 Grizzly, Bronco AT-09249 Kodiak Rhino. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod YFM450 Grizzly, Bronco AT-09249 Kodiak Rhino
• Part number: 56-9014.BR
• Brand: Namura Technologies
• Bronco Heavy-Duty Connecting Rod Rebuild Kit - AT-09249
• This heavy-duty connecting rod rebuild kit is a robust OE replacement designed for strength and longevity. Manufactured from certified chrome alloy steel (SNCM220) and case-hardened for durability, it includes all necessary components for a complete rebuild. It is fully compatible with both aftermarket and OE crankshafts.
• Made from certified chrome alloy steel for superior strength.
• Crankpins manufactured from hot-rolled ASTM steel and case-hardened.
• Utilizes advanced caged needle roller bearing designs for high RPM durability.
• Thrust washers are silver-coated bronze phosphor for added durability.

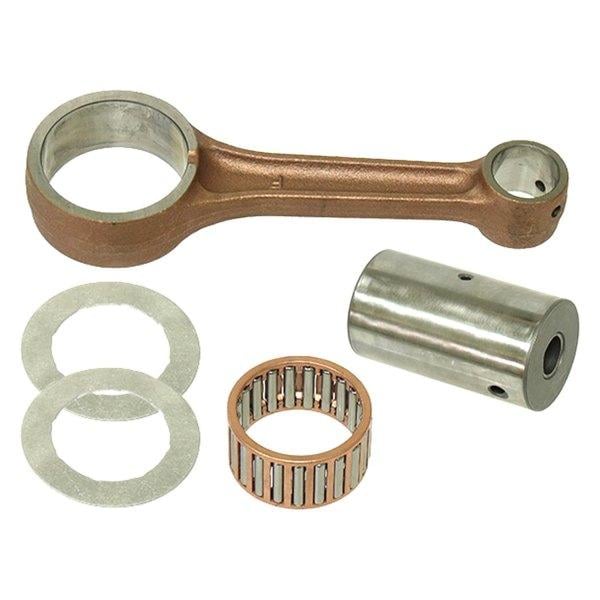

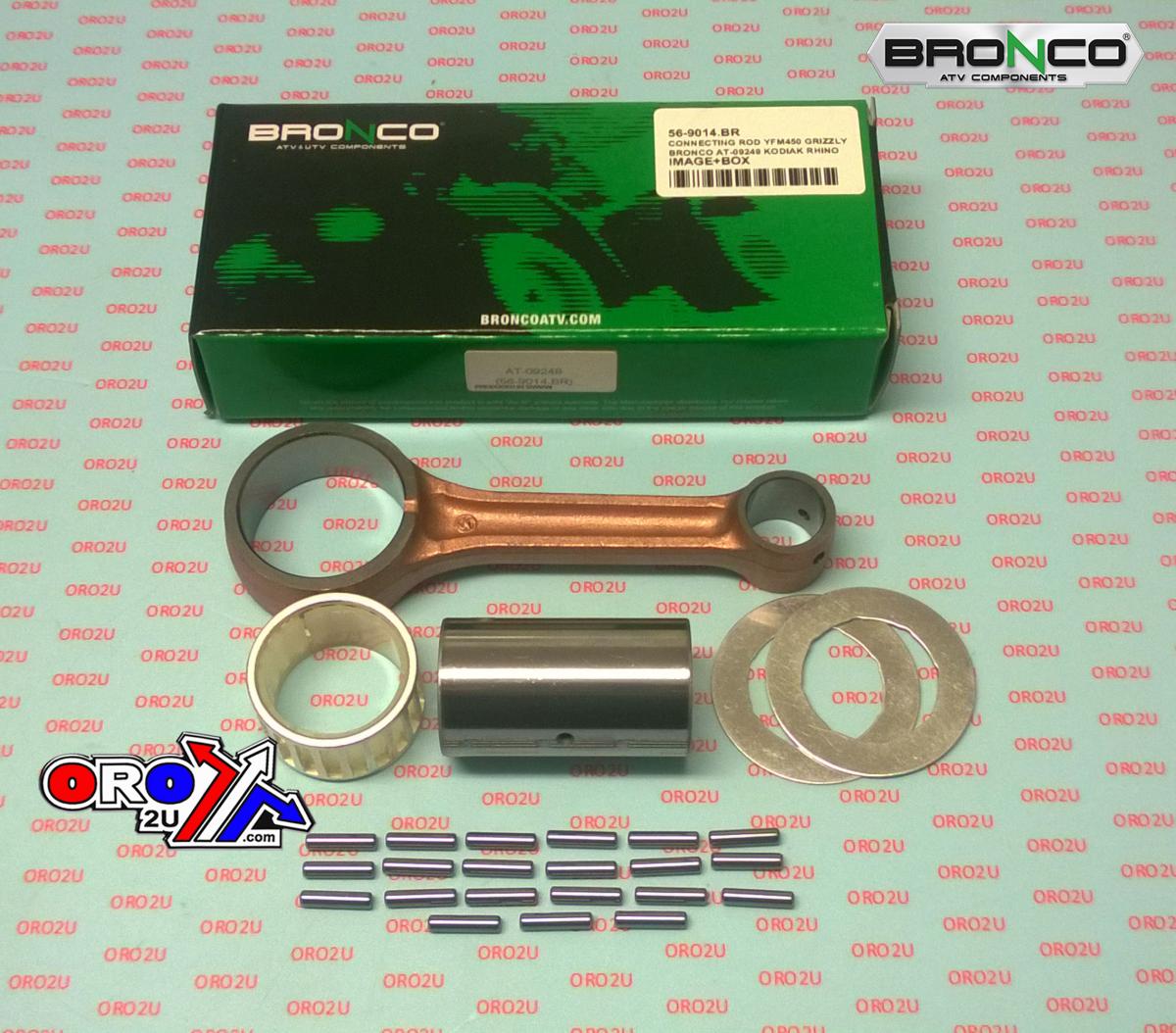

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if needed).
• Fully compatible with OE and aftermarket crankshafts.
• Material: SNCM220 (Certified Chrome Alloy Steel)
• Dimensions:
• Centre to Centre: 121.50 mm
• Small End Bore Ø: 20 mm
• Small End Width: 22 mm
• Big End Bearing: 35x43x22 mm
• Big End Bore Ø: 43 mm
• Big End Width: 22 mm
• Big End Pin Ø: 35 mm
• Big End Pin Length: 62.00 mm
• Washer Thickness: 35x54x1 mm
• Cross-Reference OEM Part Numbers:
• HOTRODS: 8703

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFM WOLVERINE 450cc — 2006–2010
• YAMAHA YFM KODIAK 450cc — 2003–2006
• YAMAHA YFM GRIZZLY 400cc — 2007–2008
• YAMAHA YFM GRIZZLY 450cc — 2007–2014
• YAMAHA YFM KODIAK 400cc — 2005–2006
• YAMAHA YXR RHINO 450cc — 2006–2009
• YAMAHA YFM KODIAK 400cc — 2000–2004
• YAMAHA YFM KODIAK 450cc — 2018–2019
• YAMAHA YFM 450cc — 2006–2010

Match your exact make, model, year and specification before ordering.
