Hot Rods Connecting Rod YFM450 Grizzly, Hotrods 8703 Kodiak Rhino

Hot Rods Connecting Rod YFM450 Grizzly, Hotrods 8703 Kodiak Rhino. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod YFM450 Grizzly, Hotrods 8703 Kodiak Rhino
• Part number: 56-9014.HR
• Brand: Hot Rods
• Hot Rods Connecting Rod Kit - 8703
• This heavy-duty connecting rod kit is an OE replacement designed for strength, durability, and reliability in high-performance applications. Manufactured from certified 8620 AISI steel and case-hardened to 58-62 RC, it ensures superior performance under demanding conditions. The kit includes all necessary components for a complete rebuild and is compatible with both Hot Rods and OE crankshafts.
• Made from certified 8620 AISI steel for superior strength.
• Case-hardened to 58-62 RC for durability.
• Big-end design incorporates side scalloping and vent slots to minimize high-rpm bearing race distortion.
• Crankpins are made from hot-rolled ASTM 4115 and case-hardened.
• Caged needle roller bearing design ensures longevity at high RPMs.
• Silver-coated bronze phosphor thrust washers provide additional durability.

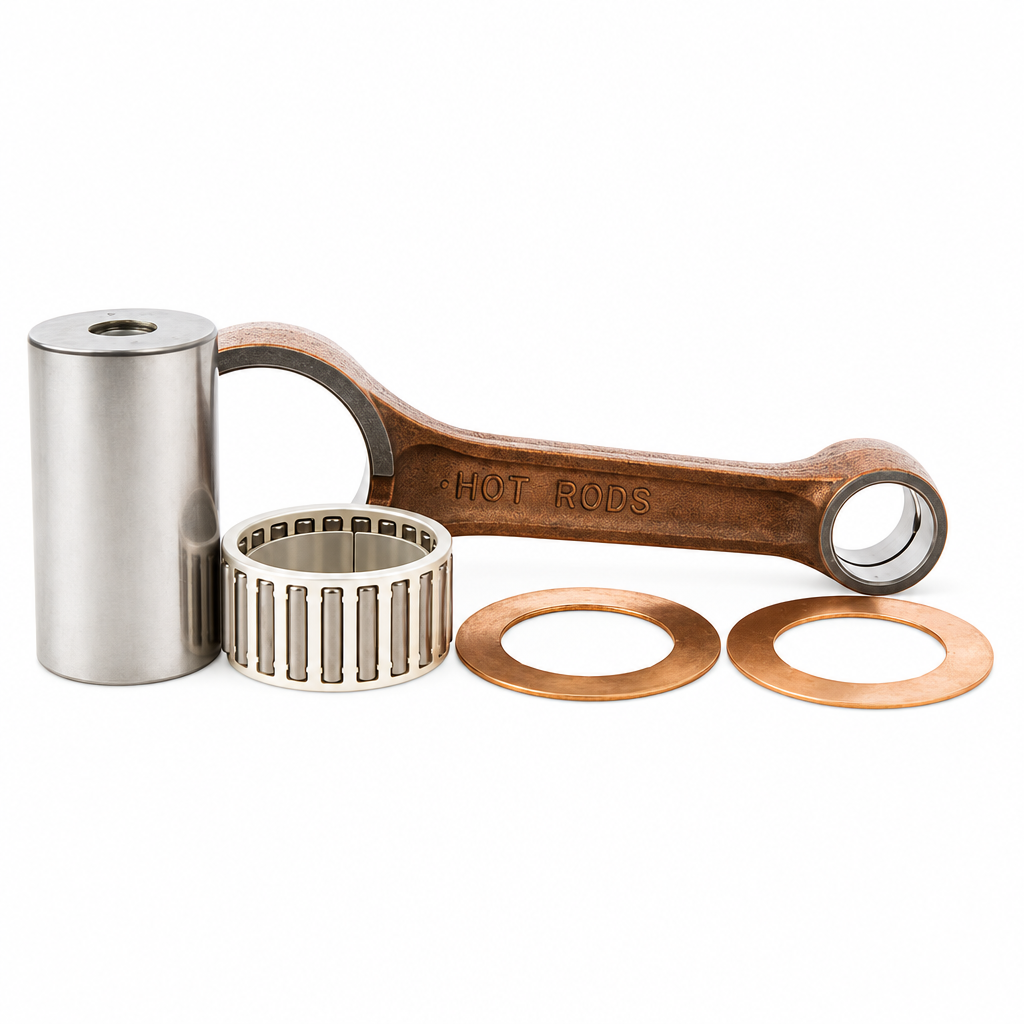

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Compatible with both Hot Rods and OE crankshafts.
• Made in the USA.
• Big End Bore Ø: 43.00 mm
• Big End Width: Not specified
• Pin Diameter: 35.00 mm
• Pin Length: 61.80 mm
• Center to Center: 121.50 mm
• Small End Bore Ø: 20.00 mm
• Small End Width: Not specified
• Washer Thickness: 1.00 mm
• Included Items:
• (1) Connecting rod
• (1) Crankpin
• (1) Roller bearing
• (2) Thrust washers
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFM WOLVERINE 450cc — 2006–2010
• YAMAHA YFM KODIAK 450cc — 2003–2006
• YAMAHA YFM GRIZZLY 400cc — 2007–2008
• YAMAHA YFM GRIZZLY 450cc — 2007–2014
• YAMAHA YFM KODIAK 400cc — 2005–2006
• YAMAHA YXR RHINO 450cc — 2006–2009
• YAMAHA YFM KODIAK 400cc — 2000–2004
• YAMAHA YFM KODIAK 450cc — 2018–2019
• YAMAHA YFM 450cc — 2006–2010

Match your exact make, model, year and specification before ordering.
