Namura Technologies Connecting Rod Can-am, Bronco SM-09341 420-2174-25, 420-2174-29, 330-850cc 420233980, 420217429, 420217425

Namura Technologies Connecting Rod Can-am, Bronco SM-09341 420-2174-25, 420-2174-29, 330-850cc 420233980, 420217429, 420217425. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Can-am, Bronco SM-09341 420-2174-25, 420-2174-29, 330-850cc 420233980, 420217429, 420217425
• Part number: 56-9045.BR
• Brand: Namura Technologies

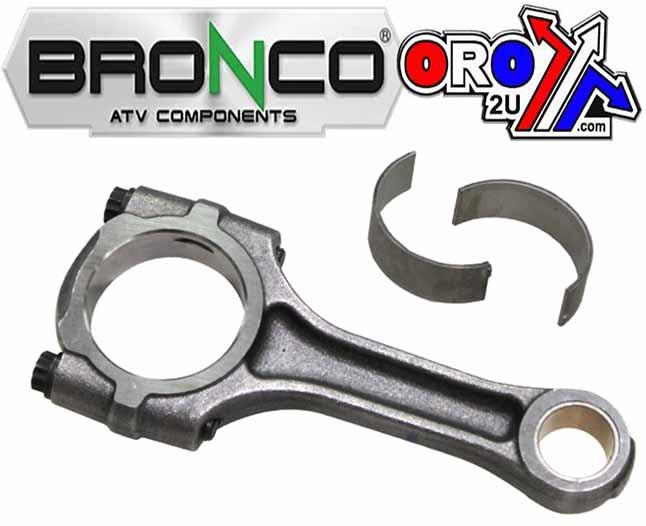

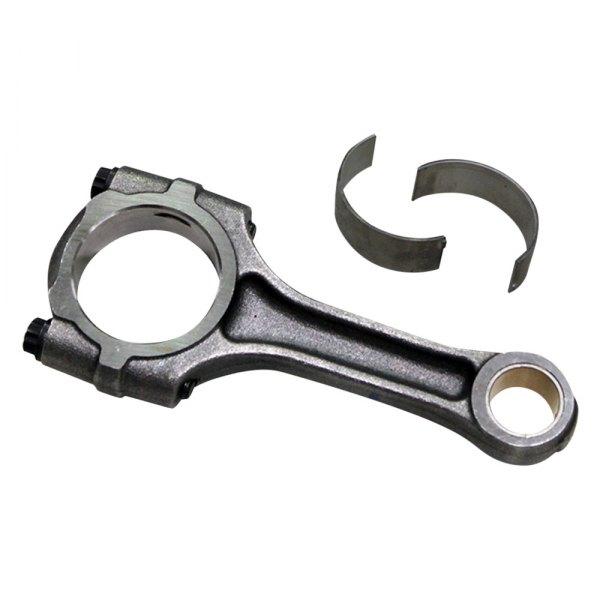

• The 56-9045.BR is a connecting rod assembly manufactured by Namura Technologies, offered as a heavy-duty OE replacement for various Can Am ATV and UTV models. It is sold complete with the rod, crankpin, crankpin bearing, top end bearing, and thrust washers, and is designed to provide robust performance for a wide range of applications.
• Heavy-duty OE replacement connecting rod
• Certified chrome alloy steel for superior strength
• Crankpins fabricated from hot-rolled ASTM steel and case hardened
• Incorporates caged needle roller bearing design for high rpm longevity
• Thrust washers constructed from phosphor bronze, silver coated
• Rod assembly includes rod, crankpin, crankpin bearing, top end bearing and thrust washers
• Fully compatible with aftermarket and OE crankshafts
• Material: SNCM220
• Centre-to-centre length: 117mm
• Small end bore diameter: 20mm
• Small end width: 20mm
• Big end bore diameter: 43mm
• Big end width: 20mm
• Weight: 0.522kg
• Cross-Reference OEM Part Numbers
• 420-2174-25
• 420-2174-29
• 420-2339-80
• 420217429
• 420217425

Vehicle fitment

Applications listed in the supplier fitment data:

• CAN-AM OUTLANDER 330cc — 2004–2005
• CAN-AM COMMANDER 800cc — 2011–2018
• CAN-AM RENEGADE 800cc — 2007–2015
• CAN-AM OUTLANDER 400cc — 2015
• CAN-AM RENEGADE 850cc — 2016–2019
• CAN-AM DEFENDER TRAXTER 800cc — 2016–2019
• CAN-AM OUTLANDER 800cc — 2006–2015
• CAN-AM OUTLANDER 400cc — 2003–2014
• CAN-AM OUTLANDER 450cc — 2015–2019
• CAN-AM OUTLANDER 650cc — 2006–2019
• CAN-AM OUTLANDER 850cc — 2016–2019
• CAN-AM DEFENDER TRAXTER 427cc — 2017–2019

Match your exact make, model, year and specification before ordering.
