Namura Technologies Connecting Rod 1995-2002 KTM360 380 Namura RX-70005 54730015000 MX-09025

Namura Technologies Connecting Rod 1995-2002 KTM360 380 Namura RX-70005 54730015000 MX-09025. Find the product specifications and compatibility information below.

Product details

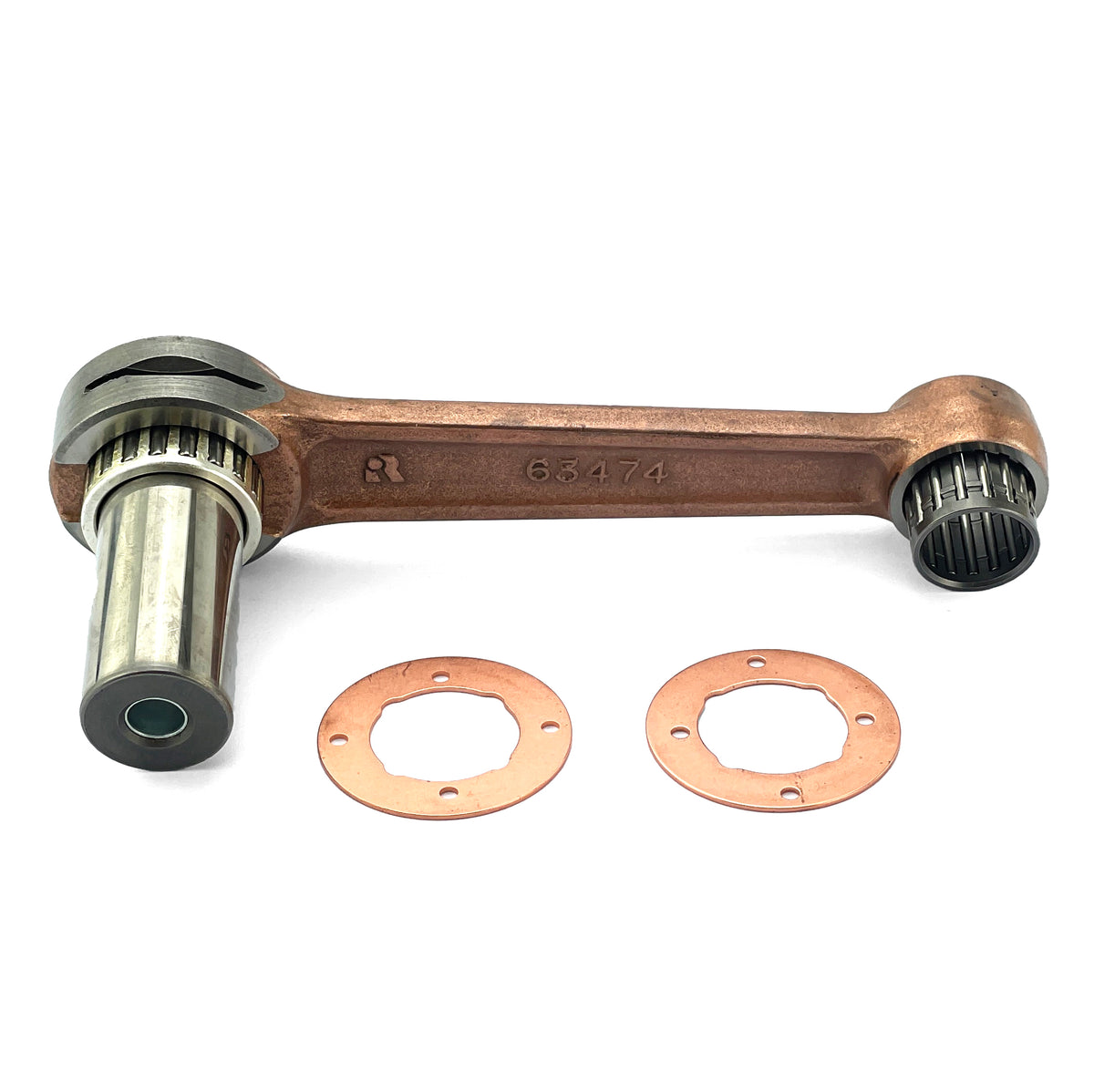

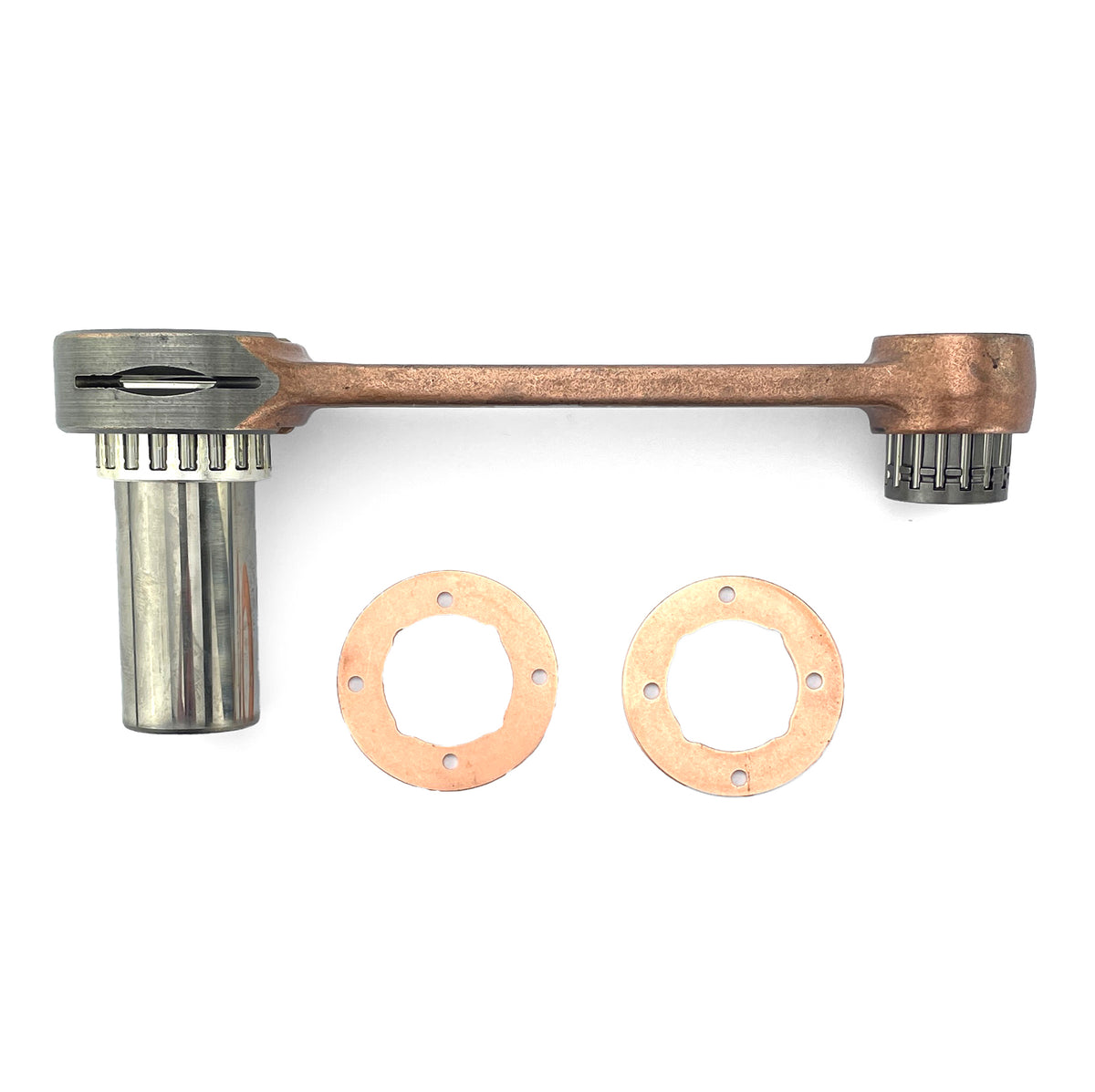

• Product: Connecting Rod 1995-2002 KTM360 380 Namura RX-70005 54730015000 MX-09025
• Part number: 56-9046.NM
• Brand: Namura Technologies
• KTM Connecting Rod Rebuild Kit for 1995-02 360 KTM360 and 380 KTM380
• Brand: Namura MX-09025
• Heavy-duty OE replacement connecting rods.
• Certified Chrome alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods use the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing, and thrust washers if needed.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220.
• Manufactured to exacting standards for total confidence.
• Meets or exceeds OEM quality.
• Direct OEM replacement.
• Size (in MM):
• Centre to Centre: 135
• Small End Bearing: 18x22x19.80
• Small End Bore Ø: 22
• Small End Width: 17
• Big End Bearing: 24x30x16.8
• Big End Bore Ø: 30
• Big End Width: 17
• Big End Pin Ø: 24
• Big End Pin Length: 64
• Washer Thickness: 24x41x1.0
• RM-6216
• 54730015000
