Connecting Rod 03-13 YZ250F, Hot Rods 8619 Yamaha YZF250

Connecting Rod 03-13 YZ250F, Hot Rods 8619 Yamaha YZF250. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 03-13 YZ250F, Hot Rods 8619 Yamaha YZF250
• Part number: 56-910.HR
• Brand: Hot Rods

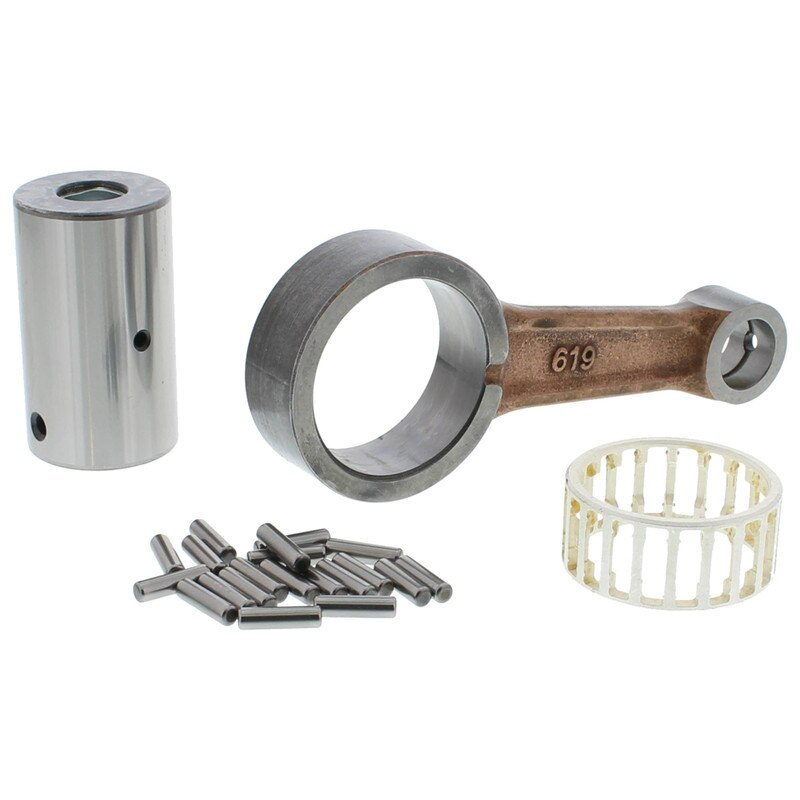

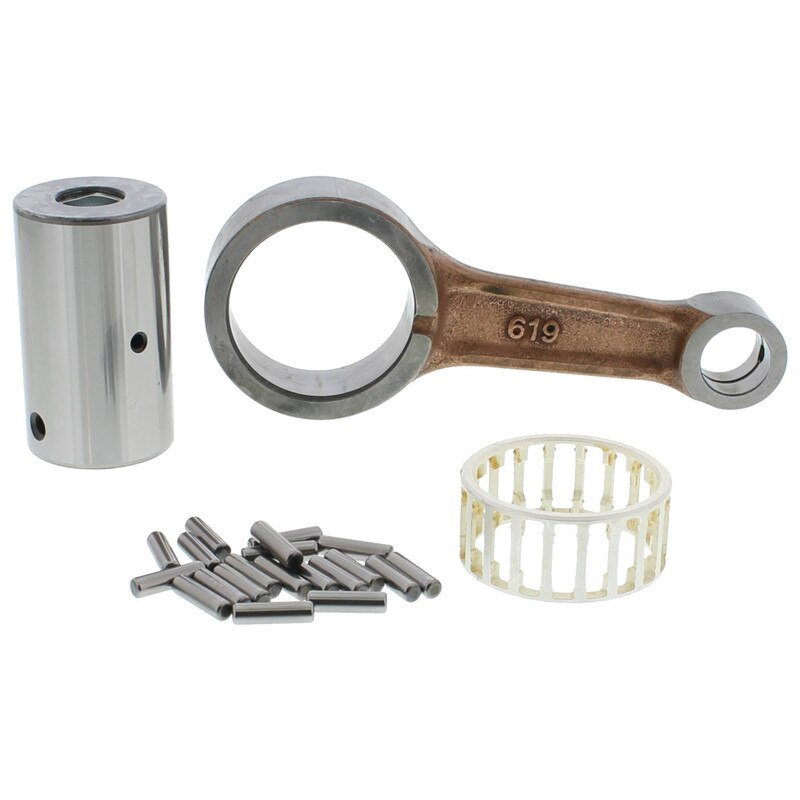

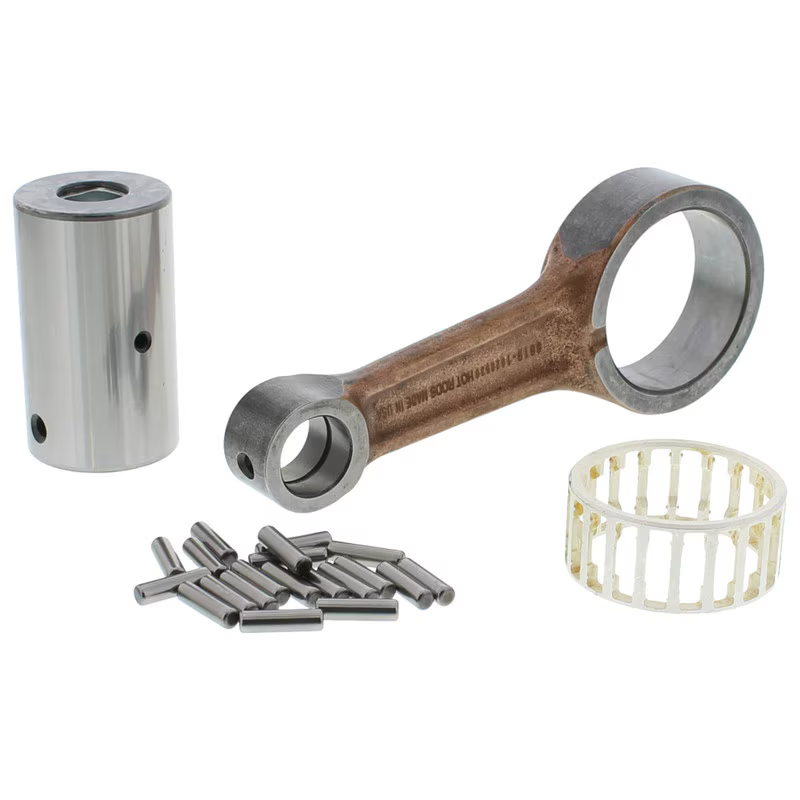

• Hot Rods Heavy-Duty Connecting Rod Kit – 8619
• Kits include a connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. These high-quality replacement kits are crafted from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc for durability. An advanced design incorporates side scalloping and vent slots to minimize high-rpm bearing race distortion.
• The rods are double-forged for improved grain flow and dimensional consistency, shot-peened, and double-honed for enhanced strength under heavy loads. Small ends are double-drilled to ensure optimal lubrication and cooling to the wrist pin bearing, especially critical when the piston crown is close to the wrist pin. Thrust washers and crank pin bearings are silver-coated for additional lubricity.
• Complete kit with all necessary components for replacement.
• Constructed from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
• Strategically designed with side scalloping and vent slots to reduce high-rpm bearing distortion.
• Double-forged for improved grain flow and consistent dimensions.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends are double-drilled for enhanced lubrication and cooling.
• Silver-coated thrust washers and crank pin bearings for added lubricity.
• Technical Specifications:
• Big End Bearing (mm): 32x40x18
• Big End Bore (mm): 40.00
• Big End Width (mm): 18.00
• Center to Center (mm): 93.50
• Pin Diameter (mm): 32.00
• Pin Length (mm): 54.80
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 16.00
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• GAS-GAS EC F 250cc — 2010–2015
• GAS-GAS EC F 300cc — 2013–2015
• YAMAHA WR F 250cc — 2003–2013
• YAMAHA YZF 250cc — 2003–2013
• YAMAHA YZ F 250cc — 2003–2013
• GAS-GAS EC 300cc — 2013–2015
• YAMAHA WRF 250cc — 2003–2013

Match your exact make, model, year and specification before ordering.
