Connecting Rod Kit 88-07 CR125, Psychic MX-09003 Honda 104mm

Connecting Rod Kit 88-07 CR125, Psychic MX-09003 Honda 104mm. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 88-07 CR125, Psychic MX-09003 Honda 104mm
• Part number: 56-912.DR
• Brand: Psychic
• Heavy-Duty Connecting Rod Rebuild Kit – Psychic MX-09003
• This connecting rod rebuild kit is designed as a heavy-duty OE replacement. Manufactured from certified chrome alloy steel (SNCM220), it ensures exceptional strength and durability. The crankpins are hot-rolled ASTM steel and case-hardened for reliability, while the rods feature the latest in caged needle roller bearing designs to support high RPM applications.

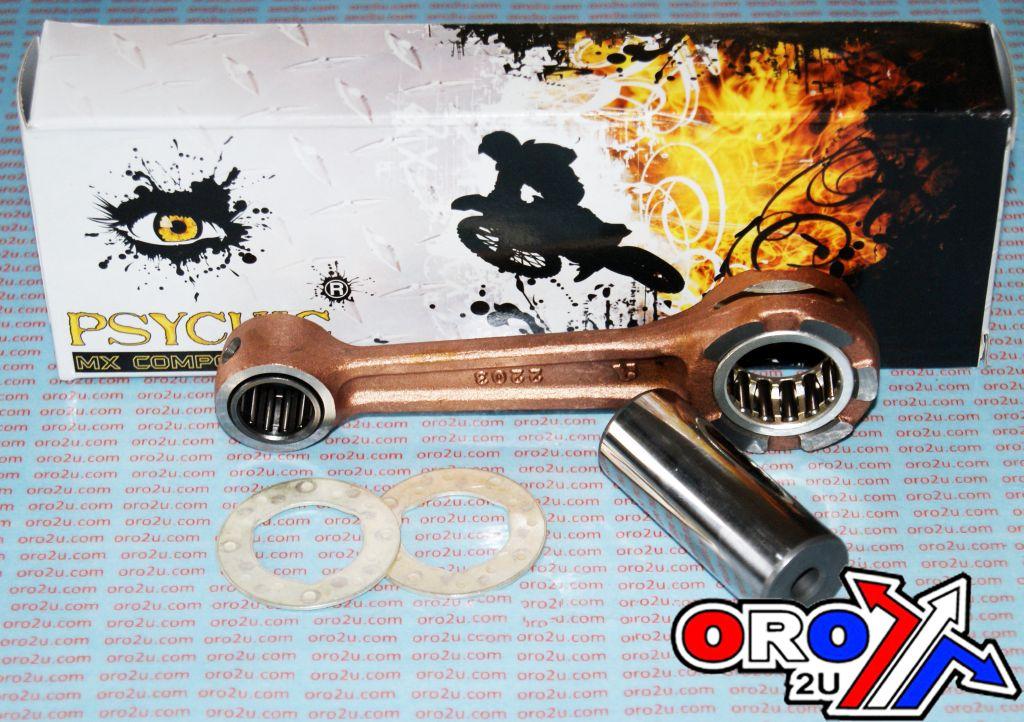

• Thrust washers are crafted from bronze phosphor and silver-coated for enhanced lubricity. The kit includes all necessary components for a complete rebuild, including the rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as required. Fully compatible with both aftermarket and OE crankshafts.
• Heavy-duty OE replacement connecting rod for reliable performance.
• Constructed from certified chrome alloy steel (SNCM220) for superior strength.
• Case-hardened hot-rolled ASTM steel crankpins for added durability.
• Advanced caged needle roller bearing design for improved high-RPM longevity.
• Silver-coated bronze phosphor thrust washers for enhanced lubricity.
• Complete kit with all necessary components for rebuilds.
• Fully compatible with aftermarket and OE crankshafts.

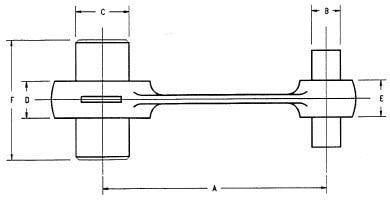

• Technical Specifications:
• Centre to Centre (mm): 104
• Small End Bearing (mm): 15x19x16.80
• Small End Bore (mm): 19
• Small End Width (mm): 16
• Big End Bearing (mm): 22x29x15.8
• Big End Bore (mm): 29
• Big End Width (mm): 16
• Big End Pin Diameter (mm): 22
• Big End Pin Length (mm): 55
• Washer Thickness (mm): 1.0
• Cross-Reference OEM Part Numbers:
• ATHENA: P40321010
• PSYCHIC: MX-09003
• HOTRODS: 8101
• PROX: 03-1212
• P2009

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CR 125cc — 1988–2007
• HONDA CR 125cc — 1989–2007
• HONDA CR 125cc — 1988

Match your exact make, model, year and specification before ordering.
