Hot Rods Connecting Rod 09-19 KTM 65SX, Hotrods 8132 46230015000

Hot Rods Connecting Rod 09-19 KTM 65SX, Hotrods 8132 46230015000. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 09-19 KTM 65SX, Hotrods 8132 46230015000
• Part number: 56-923.HR
• Brand: Hot Rods
• The small ends are double-drilled to enhance lubrication and cooling for the wrist pin bearing, making it ideal for pistons with crowns close to the wrist pin. Thrust washers and crank pin bearings are silver-coated for improved lubricity. Each kit includes all necessary components for installation.
• Manufactured from hot-rolled ASTM 4115 steel, case-hardened to 58–62 Rc.
• Advanced design minimizes high-rpm bearing race distortion.
• Double-forged for enhanced grain flow and dimensional accuracy.
• Shot-peened and double-honed for superior strength under heavy loads.
• Double-drilled small ends for improved lubrication and cooling.
• Silver-coated thrust washers and crank pin bearings for added durability.

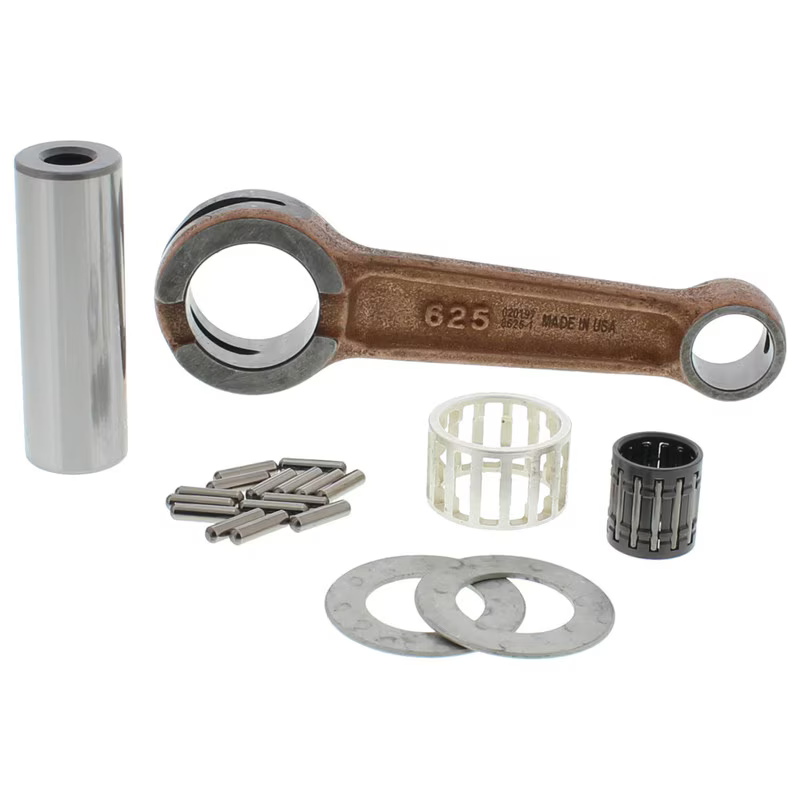

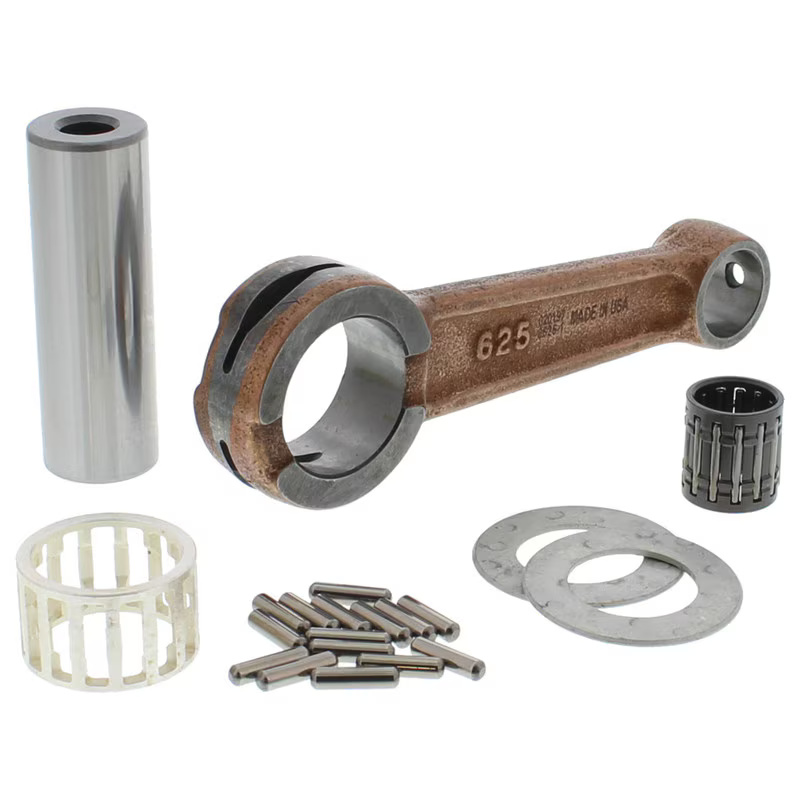

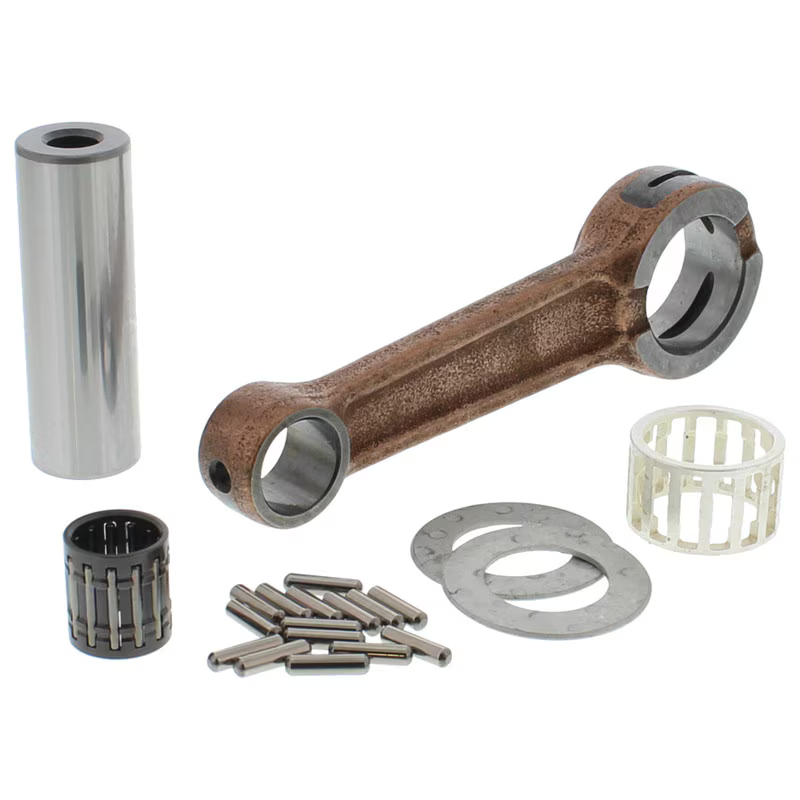

• Complete kit includes rod, crank pin, crank pin bearing, needle bearing rollers, needle cage, wrist pin bearing, and thrust washers.
• Included Items:
• (1) Connecting rod
• (1) Crank pin
• (15) Needle bearing rollers
• (1) Needle cage
• (2) Thrust washers
• (1) Wrist pin bearing
• Cross-Reference OEM Part Numbers:
• 46230015000
• ATHENA: P40321039
• HOTRODS: 8132

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 65cc — 2009–2013
• HUSQVARNA TC 65cc — 2017–2020
• KTM SX 65cc — 2009–2020
• GAS-GAS MC 65cc — 2021
• HUSQVARNA TC 65cc — 2017–2021
• KTM SX 65cc — 2009–2021
• KTM SX 65cc — 2009–2019
• HUSQVARNA TC 65cc — 2017–2018
• KTM SX 65cc — 2009–2015
• KTM SX 65cc — 2015–2018
• KTM SX 65cc — 2009–2014

Match your exact make, model, year and specification before ordering.
