Connecting Rod 04-11 RM125, Hot Rods 8615 Suzuki MX

Connecting Rod 04-11 RM125, Hot Rods 8615 Suzuki MX. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 04-11 RM125, Hot Rods 8615 Suzuki MX
• Part number: 56-925.HR
• Brand: Hot Rods
• High-quality connecting rod manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Advanced design with side scalloping and vent slots to minimize high-rpm bearing race distortion.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed rods for added durability under heavy loads.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for increased lubricity.

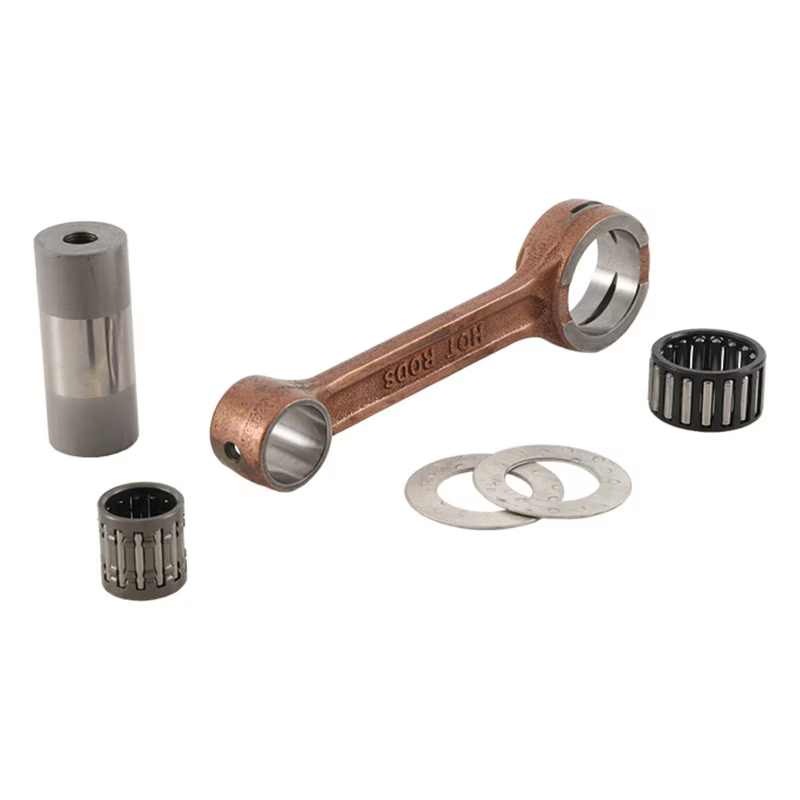

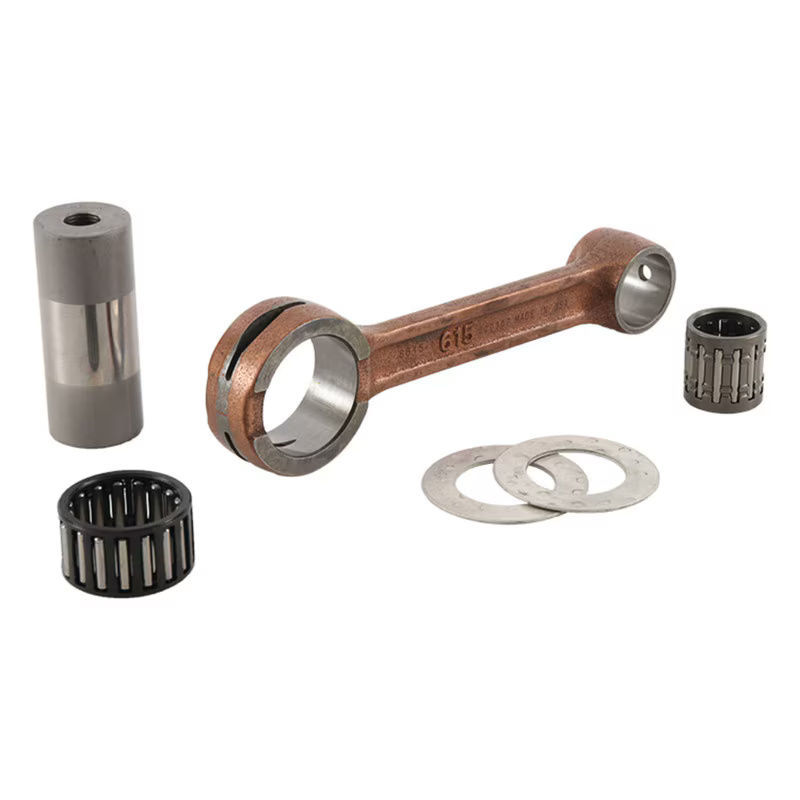

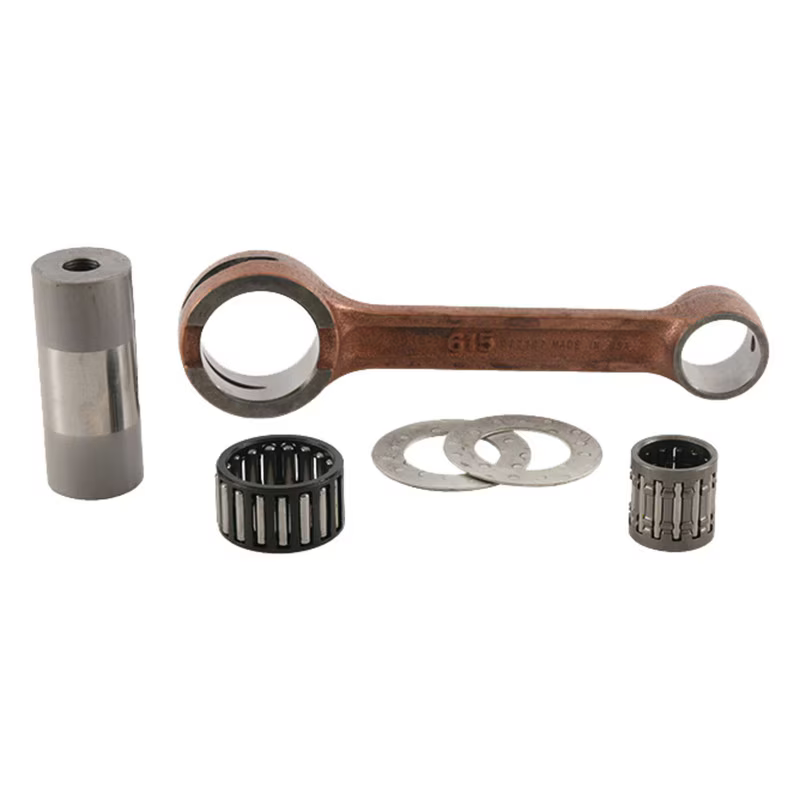

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Center-to-Center: 110.00 mm
• Big End Bearing: 22x28x16 mm
• Big End Bore: 28.00 mm
• Big End Width: 15.90 mm
• Pin Diameter: 22.00 mm
• Pin Length: 52.70 mm
• Small End Bearing: 15x19x19.5 mm
• Cross Reference OEM Part Numbers

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM 125cc — 2004–2007
• SUZUKI RM 125cc — 2004–2011

Match your exact make, model, year and specification before ordering.
