Connecting Rod 07-19 CRF150, Wiseco WPR204 Honda MX

Connecting Rod 07-19 CRF150, Wiseco WPR204 Honda MX. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 07-19 CRF150, Wiseco WPR204 Honda MX
• Part number: 56-934.WI
• Brand: Wiseco

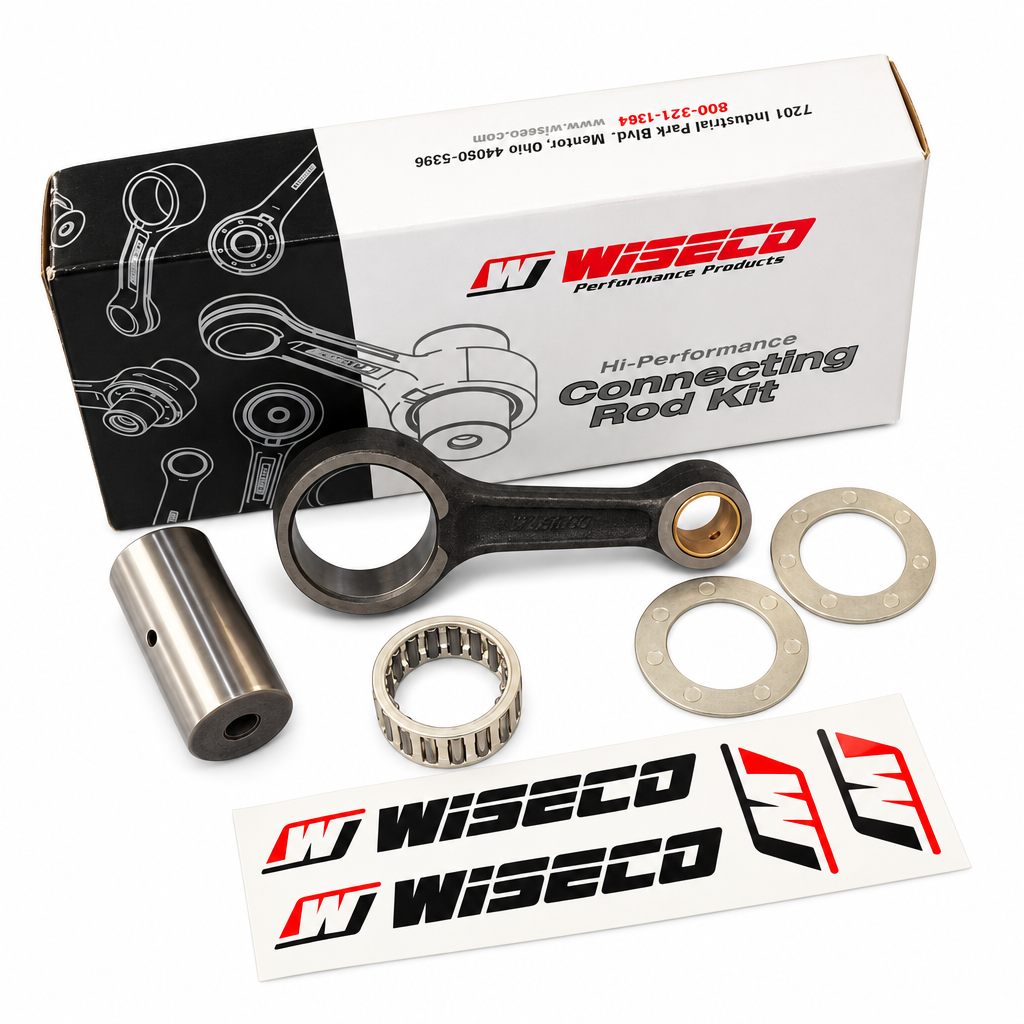

• Complete kit includes crankpin, big-end bearing, small-end bearing (if applicable), and washers.
• Double-forged rods with a barrelling surface treatment to prevent micro-cracks.
• Precisely located oiling slots maximize lower rod oiling and extend bearing life.
• Manufactured to OEM specifications for easy installation and reliable performance.
• A cost-effective and high-quality replacement option for your bike.
• Centre-to-Centre: 75.50 mm
• Small End Bearing: None
• Small End Bore Ø: 14 mm
• Small End Width: 14 mm
• Big End Bearing: 25x32x15.8 mm
• Big End Bore Ø: 32 mm
• Big End Width: 16 mm
• Big End Pin Ø: 25 mm
• Big End Pin Length: 51 mm
• Washer Thickness: None
• Cross Reference OEM Part Numbers
• 13000-KSE-670
• Hot Rods 8646
• Wossner P4024
• Wiseco WPR204

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CRF R 150cc — 2007–2020
• HONDA CRF R 150cc — 2007–2021
• HONDA CRF R 150cc — 2007–2016
• HONDA CRF R 150cc — 2007–2015
• HONDA CRF R 150cc — 2004–2018
• HONDA CRF R 150cc — 2004–2020

Match your exact make, model, year and specification before ordering.
