Connecting Rod 04-17 CRF250R, Wossner P4001 04-09 CRF250X

Connecting Rod 04-17 CRF250R, Wossner P4001 04-09 CRF250X. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 04-17 CRF250R, Wossner P4001 04-09 CRF250X
• Part number: 56-935.WO
• Brand: Wossner

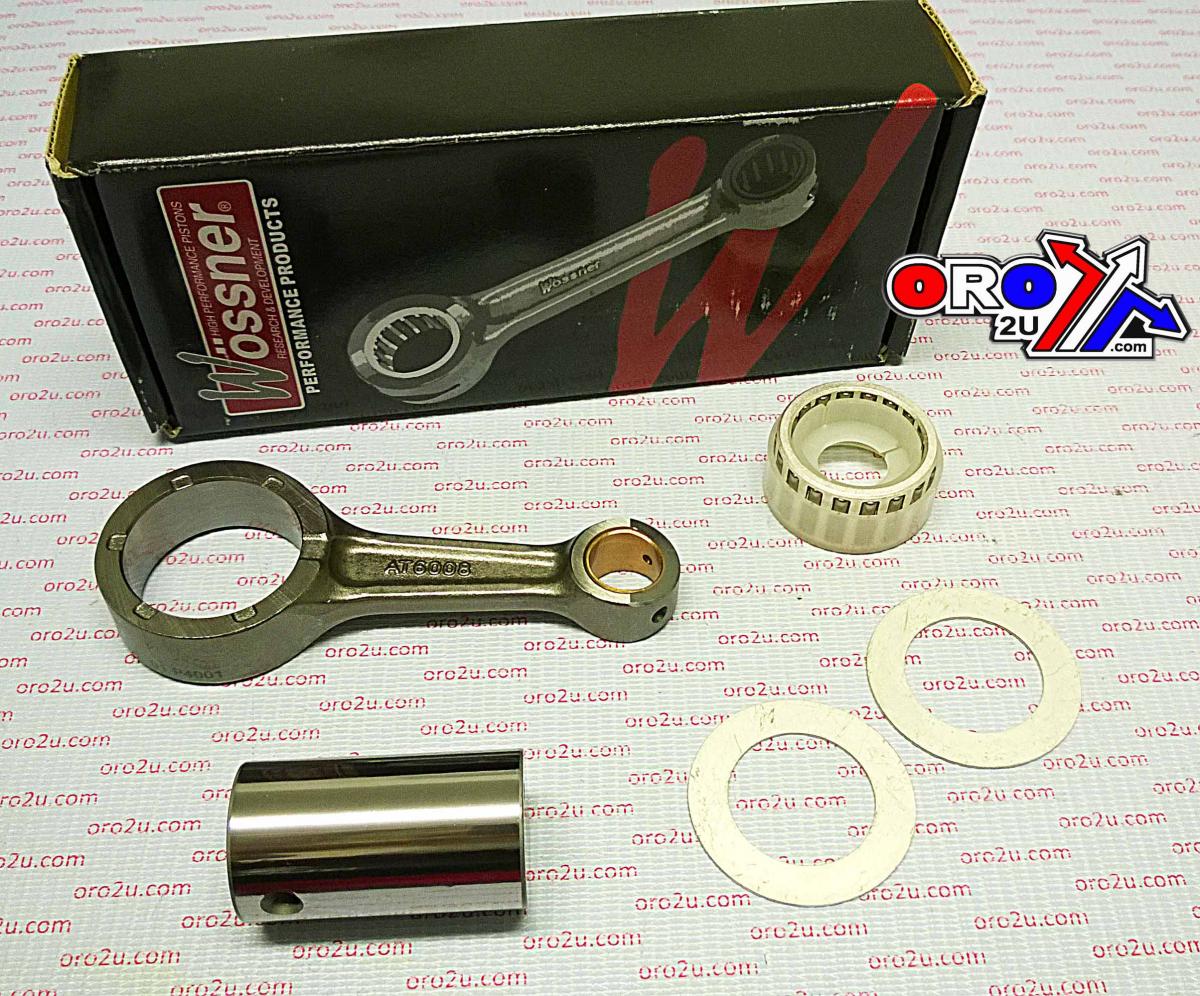

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Made from hot-rolled alloy steel and case-hardened to 58-62 Rc for enhanced durability.
• Advanced design with side scalloping and vent slots minimizes high-RPM bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends feature double drilling for improved lubrication and cooling of the wrist pin bearing.
• Engineered to perform under high-stress conditions.
• Centre to Centre: 90.00 mm
• Small End Bearing: 16x18x15 mm
• Small End Bore Ø: 18 mm
• Small End Width: 15.00 mm
• Big End Bearing: 30x38x17.8 mm
• Big End Bore Ø: 38 mm
• Big End Width: 18.00 mm
• Big End Pin Ø: 30 mm
• Big End Pin Length: 53.00 mm
• Washer Thickness: 1.00 mm
• Connecting Rod Size (Dimensions in mm):
• A = 90
• B = 16
• C = 30
• D = 17.80
• E = 15
• F = 53
• Cross-Reference OEM Part Numbers:
• P4001, 13000-KRN-A60, 13000-KSC-A11, PROX 03-1334, HOTRODS 8616.

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CRF X 250cc — 2004–2017
• HONDA CRF R 250cc — 2004–2017
• HONDA CRF X 250cc — 2004–2015
• HONDA CRF R 250cc — 2004–2015
• HONDA CRF X 250cc — 2004–2016
• HONDA CRF X 250cc — 2004–2013
• HONDA CRF R 250cc — 2004–2016

Match your exact make, model, year and specification before ordering.
