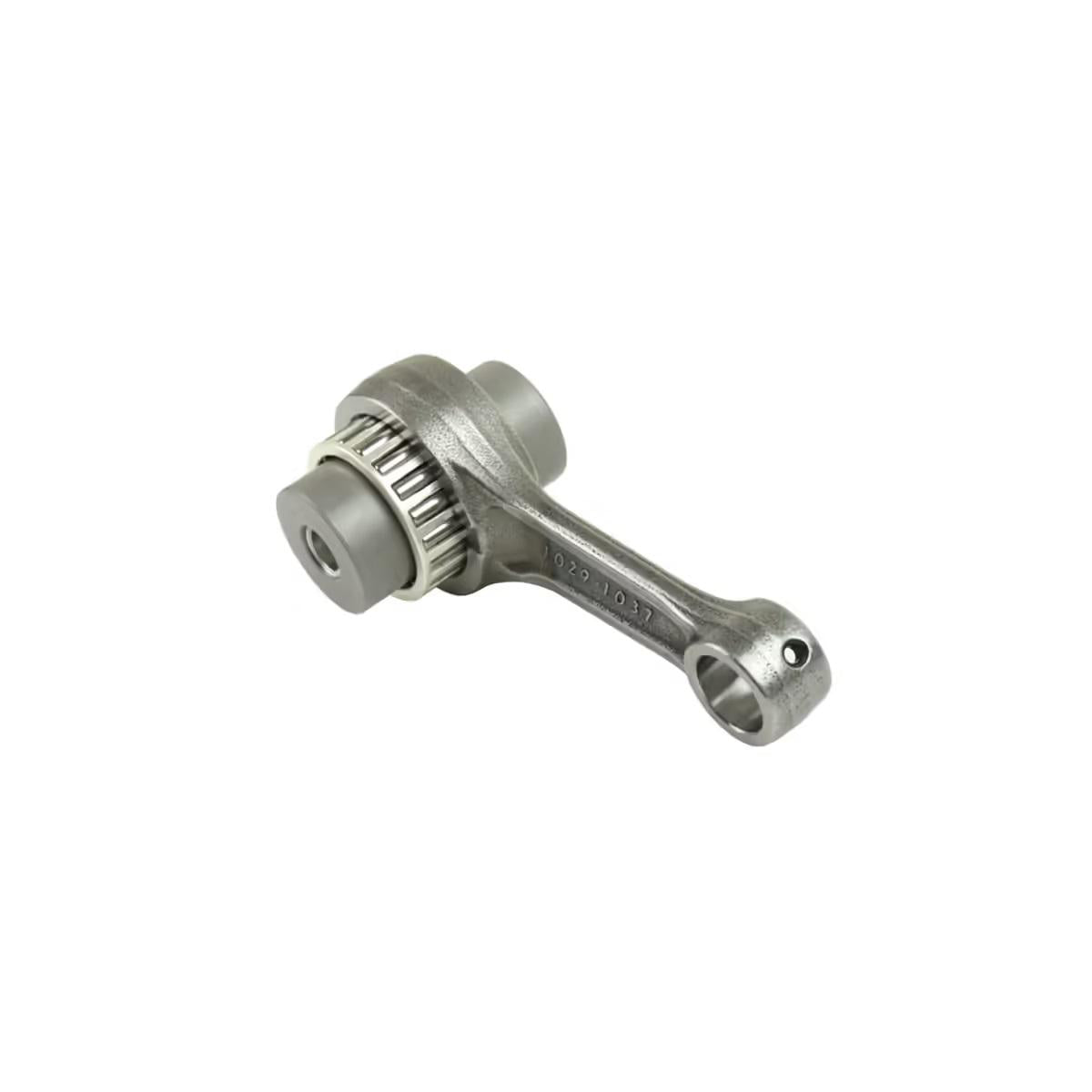

Connecting Rod Kit Suzuki Rm-z 250 04-25, Athena P40321029 Kawasaki KX 250F 04-09

Connecting Rod Kit Suzuki Rm-z 250 04-25, Athena P40321029 Kawasaki KX 250F 04-09. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit Suzuki Rm-z 250 04-25, Athena P40321029 Kawasaki KX 250F 04-09
• Part number: 56-936.ATH
• Brand: Athena
• ATHENA Connecting Rod Offroad Kit - P40321029
• Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
• Technical features
• Big End Bore (mm) 38.00
• Big End Pin Diameter (mm) 30.00
• Big End Width (mm) 18.00
• Center To Center (mm) 92.50
• Net Weight (Kg) 0.53
• Piston Pin Diameter (mm) 16.00
• Small End Width (mm) 15.00
• Partner Cross Reference code
• HOTROD 8622
• WOSSNER P4002
• WISECO WPR201
• PSYCHIC MX-09050

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM Z 250cc — 2017
• SUZUKI RM Z 250cc — 2007
• SUZUKI RM Z 250cc — 2008–2009
• KAWASAKI KX F 250cc — 2005
• KAWASAKI KX F 250cc — 2004
• SUZUKI RM Z 250cc — 2004–2006
• KAWASAKI KX F 250cc — 2004–2009
• SUZUKI RM Z 250cc — 2010
• SUZUKI RM Z 250cc — 2004–2021
• SUZUKI RM Z 250cc — 2004–2020
• SUZUKI RM Z 250cc — 2018
• SUZUKI RM Z 250cc — 2019
• SUZUKI RM Z 250cc — 2016
• SUZUKI RM Z 250cc — 2015
• SUZUKI RM Z 250cc — 2014
• SUZUKI RM Z 250cc — 2013
• SUZUKI RM Z 250cc — 2012
• SUZUKI RM Z 250cc — 2011
• KAWASAKI KX F 250cc — 2009
• KAWASAKI KX F 250cc — 2008
• KAWASAKI KX F 250cc — 2007
• KAWASAKI KX F 250cc — 2006
• SUZUKI RM Z 250cc — 2004–2017
• SUZUKI RM Z 250cc — 2004–2019

Match your exact make, model, year and specification before ordering.
