Hot Rods Connecting Rod Kit KXF, RMZ, Hotrod 8622 250 04-06

Hot Rods Connecting Rod Kit KXF, RMZ, Hotrod 8622 250 04-06. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit KXF, RMZ, Hotrod 8622 250 04-06
• Part number: 56-936.HR
• Brand: Hot Rods

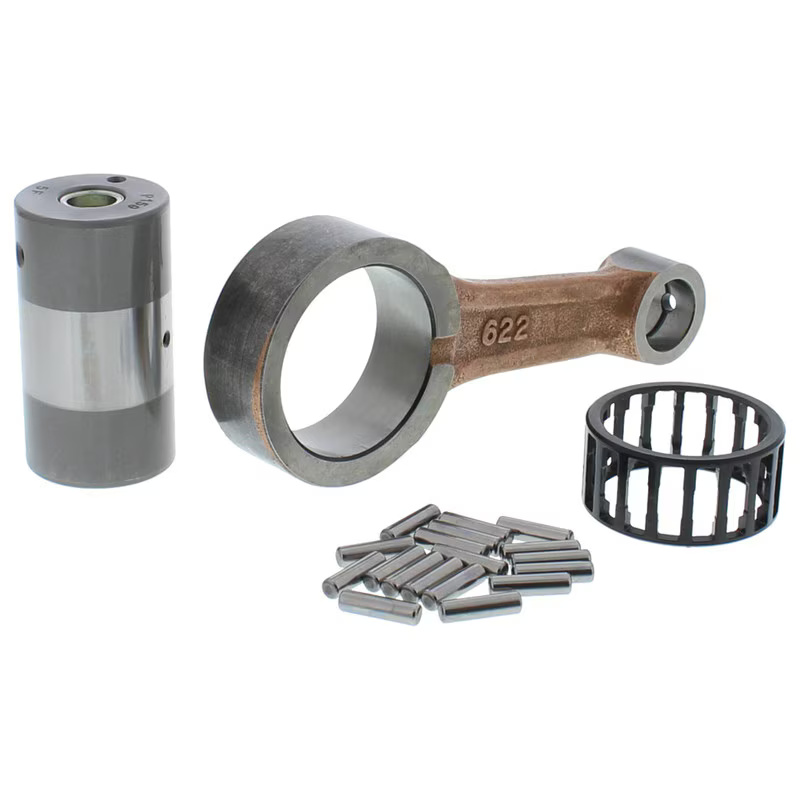

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength.
• Strategically designed side scalloping and vent slots minimize high-RPM bearing race distortion.
• Double-forged rods ensure improved grain flow and dimensional consistency.
• Shot-peened and double-honed for enhanced strength under heavy loads.
• Small ends are double drilled for optimal lubrication and cooling of the wrist pin bearing.
• Thrust washers and crankpin bearings feature a silver coating for increased lubricity.
• Centre to Centre: 92.50 mm
• Small End Bearing: None
• Small End Bore Ø: 16 mm
• Small End Width: 15.00 mm
• Big End Bearing: 30x38x18.8 mm
• Big End Bore Ø: 38 mm
• Big End Width: 19.00 mm
• Big End Pin Ø: 30 mm
• Big End Pin Length: 55.00 mm
• Washer Thickness: 1.00 mm

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM Z 250cc — 2004–2006
• KAWASAKI KX F 250cc — 2004–2009

Match your exact make, model, year and specification before ordering.
