Namura Technologies Connecting Rod Kit KXF, RMZ, Namura RX-30001 Conrod, MX-09050

Namura Technologies Connecting Rod Kit KXF, RMZ, Namura RX-30001 Conrod, MX-09050. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit KXF, RMZ, Namura RX-30001 Conrod, MX-09050
• Part number: 56-936.NM
• Brand: Namura Technologies
• KAWASAKI
• KXF250 KX250F 2004-2009,
• SUZUKI
• RM-Z250 RMZ250 2004-2018,
• CONNECTING CONROD ROD REBUILD KIT. NAMURA MX-09050
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

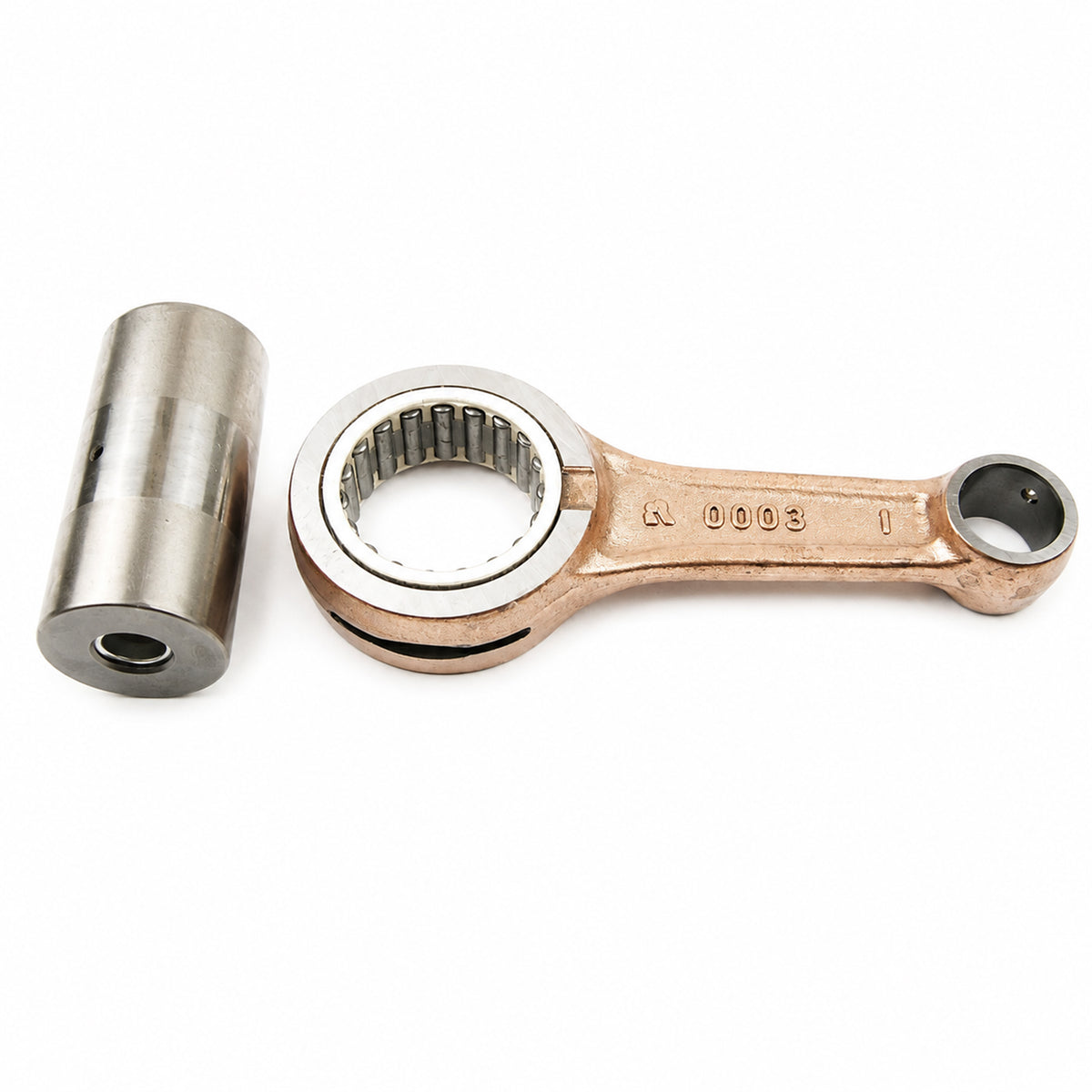

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 92.50
• Small End Bearing
• None
• Small End Bore Ø
• 16
• Small End Width
• 15.00
• Big End Bearing
• 30x38x18.8
• Big End Bore Ø
• 38
• Big End Width
• 19.00
• Big End Pin Ø
• 30
• Big End Pin Length
• 55.00
• Washer Thickness
• 1.00
• Part No. 56-936.DR (www.fdyperformance.com)
• ATHENA P40321029 HOTROD 8622, WOSSNER P4002, WISECO WPR201, PSYCHIC MX-09050, KAWASAKI: 13032-0003, KAWASAKI: 13032-0047, SUZUKI: K1303-20003, SUZUKI: K1303-20047, 56-936_HR,

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
