Hot Rods Connecting Rod 10-16 KX250F, Hotrods 8690 Kawasaki KXF

Hot Rods Connecting Rod 10-16 KX250F, Hotrods 8690 Kawasaki KXF. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 10-16 KX250F, Hotrods 8690 Kawasaki KXF
• Part number: 56-942.HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior durability.
• Advanced design incorporates side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends are double drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Thrust washers and crankpin bearings feature a silver coating for added lubricity.

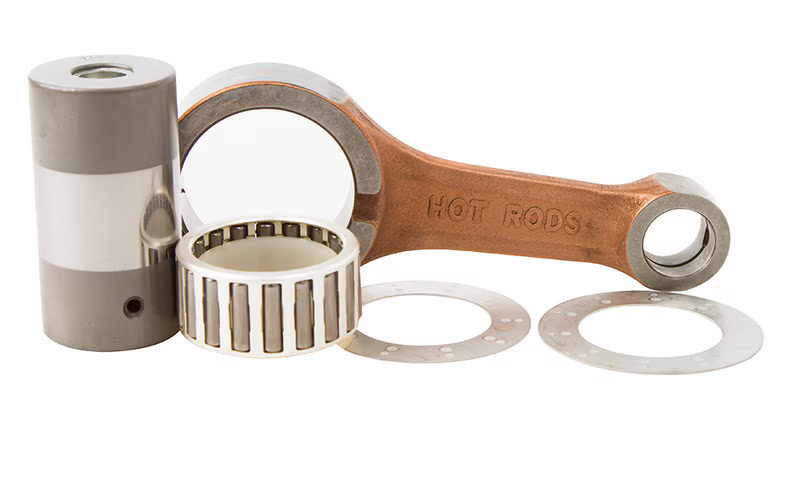

• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

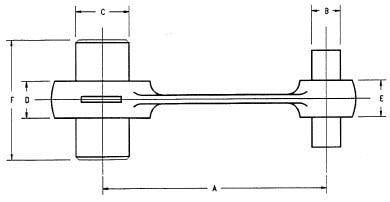

• Technical Specifications:
• Centre to Centre: 92.50 mm
• Big End Bearing: KU 30x38x17.8 mm
• Big End Bore: 38.00 mm
• Big End Width: 17.98 mm
• Pin Diameter: 30.00 mm
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX F 250cc — 2010–2011
• KAWASAKI KX F 250cc — 2012–2016
• KAWASAKI KX F 250cc — 2010–2016

Match your exact make, model, year and specification before ordering.
