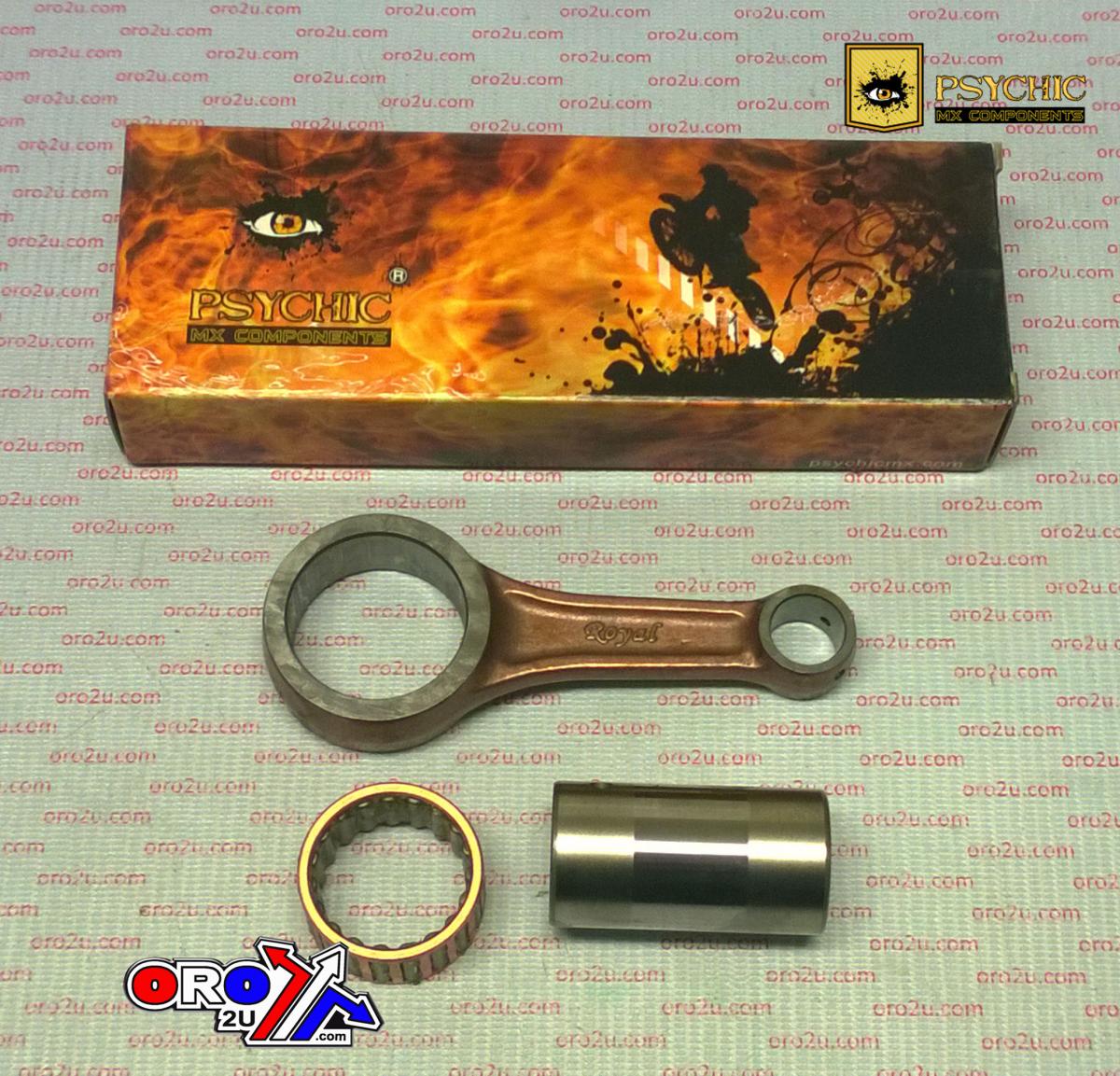

Connecting Rod 12-16 KX250F, Psychic MX-09017 Kawasaki Kit RX-20000

Connecting Rod 12-16 KX250F, Psychic MX-09017 Kawasaki Kit RX-20000. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 12-16 KX250F, Psychic MX-09017 Kawasaki Kit RX-20000
• Part number: 56-942.PS.B
• Brand: Psychic
• Manufactured from certified chrome alloy steel for exceptional strength.
• Crankpins made from hot-rolled ASTM steel and case-hardened for longevity.
• Advanced caged needle roller bearing design ensures high-RPM durability.
• Thrust washers are silver-coated and made from bronze phosphor for added lubricity.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as needed.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220.
• Centre to Centre: 92.5 mm
• Small End Bearing: None
• Small End Bore Ø: 16 mm
• Small End Width: 15.00 mm
• Big End Bearing: 30x38x18.8 mm
• Big End Bore Ø: 38 mm
• Big End Width: 19 mm
• Big End Pin Ø: 30 mm
• Big End Pin Length: 55.90 mm
• Washer Thickness: None
• Cross-Reference OEM Part Numbers:
• WOSSNER P4039, 13032-0721, 13035-0022, 13034-0019, 13032-0076, HOTROD 8690, ATHENA P40321037, RK-5212.

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX F 250cc — 2010–2011
• KAWASAKI KX F 250cc — 2012–2016
• KAWASAKI KX F 250cc — 2010–2016

Match your exact make, model, year and specification before ordering.
