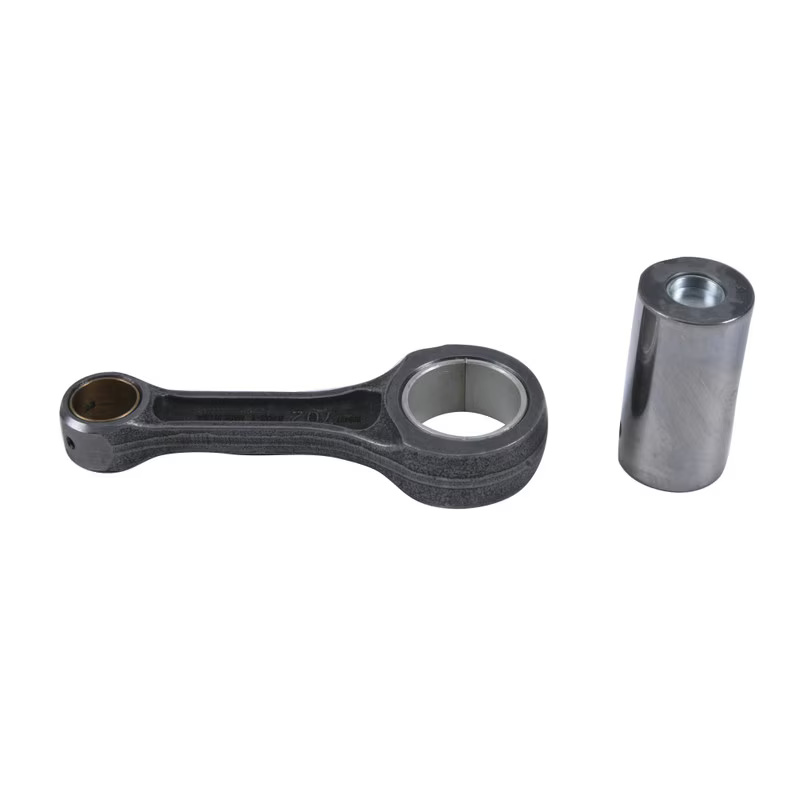

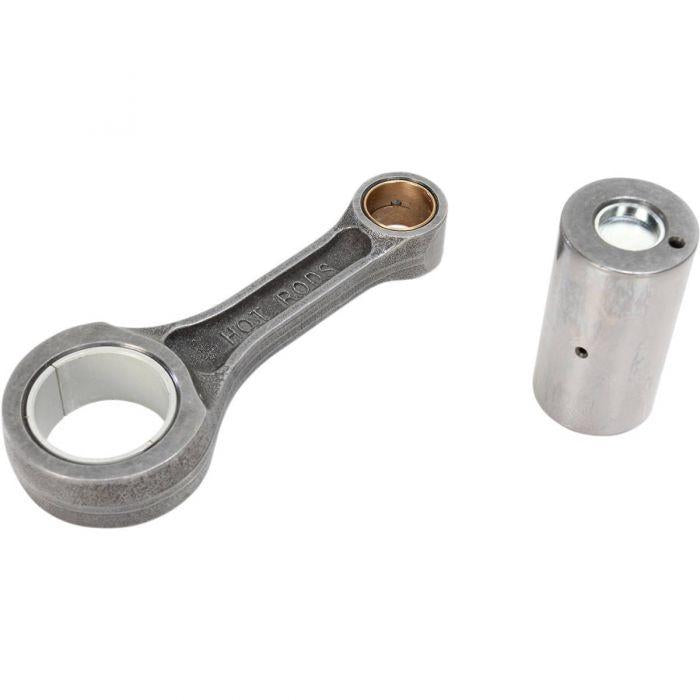

Connecting Rod SX-F350 KTM, Hot Rods 8702 77830015144

Connecting Rod SX-F350 KTM, Hot Rods 8702 77830015144. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod SX-F350 KTM, Hot Rods 8702 77830015144
• Part number: 56-946.HR
• Brand: Hot Rods
• Manufactured from certified 8620 AISI steel for superior strength.
• Uniquely designed big end with side scalloping and vent slots reduces high-RPM bearing race distortion.
• Crankpins made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Caged needle roller bearing design enhances longevity at high RPM.
• Thrust washers are silver-coated and crafted from bronze phosphor for added durability.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with Hot Rods and OE crankshafts.
• Made in the USA.
• Technical Specifications:
• Centre to Centre: 102.00 mm
• Big End Bore: 35.99 mm
• Pin Diameter: 32.00 mm
• Pin Length: 60.00 mm
• Small End Bore: 18.00 mm
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM XC F 350cc — 2013–2015
• KTM SX F 350cc — 2013–2015

Match your exact make, model, year and specification before ordering.
