Mazzucchelli Connecting Rod KTM125 86-87, Conrod 0394 BCO0394A, 50130015044

Mazzucchelli Connecting Rod KTM125 86-87, Conrod 0394 BCO0394A, 50130015044. Find the product specifications and compatibility information below.

Product details

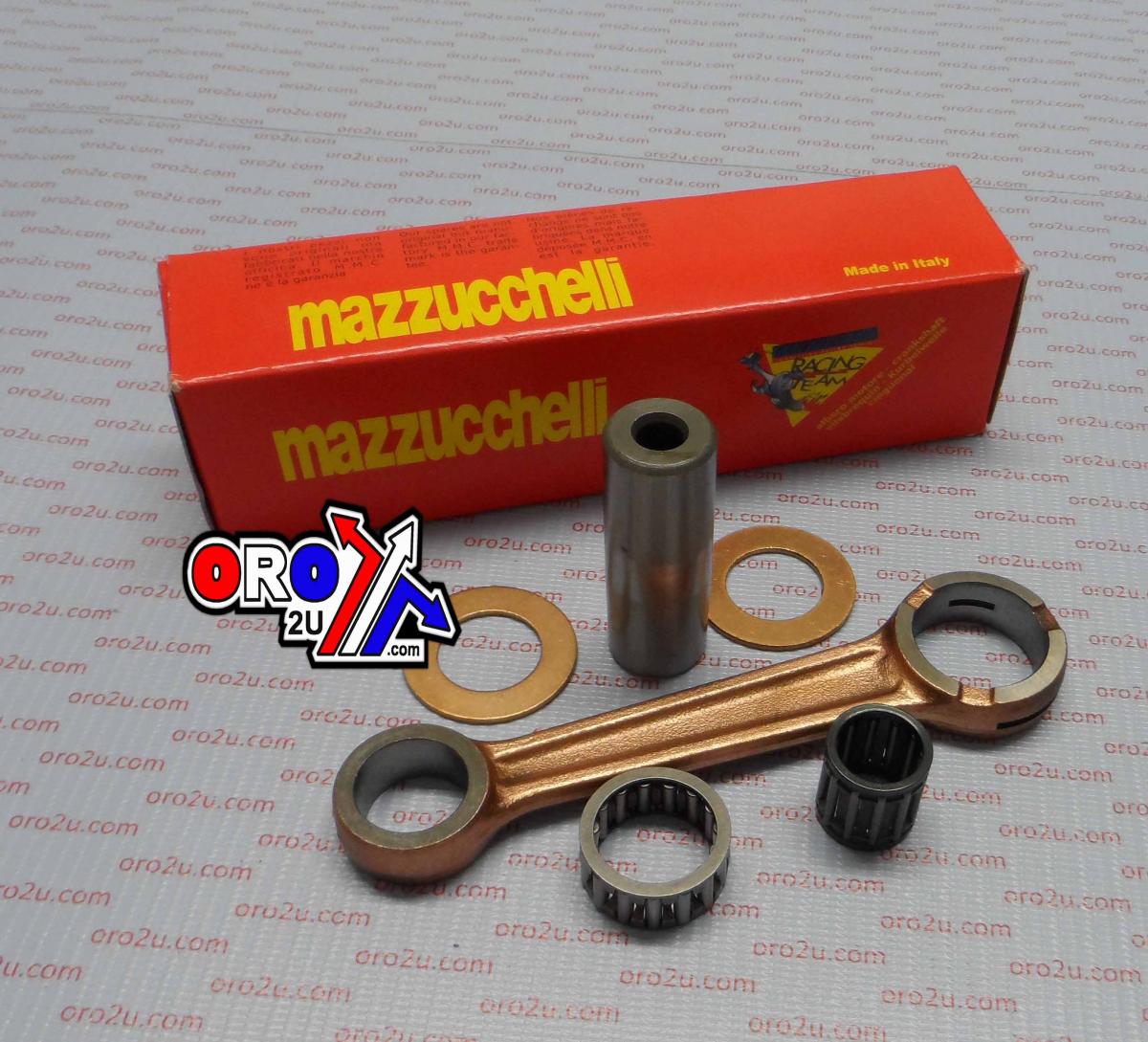

• Product: Connecting Rod KTM125 86-87, Conrod 0394 BCO0394A, 50130015044
• Part number: 56-951
• Brand: Mazzucchelli

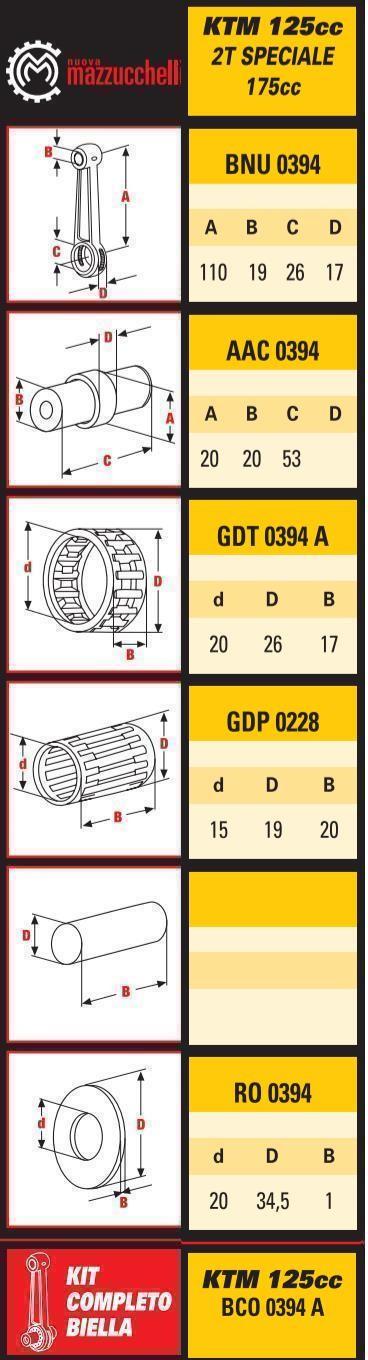

• Centre to Centre: 110 mm
• Small End Bearing: 15x19x20 mm
• Small End Bore Ø: 19 mm
• Small End Width: 17 mm
• Big End Bearing: 20x26x17 mm
• Big End Bore Ø: 26 mm
• Big End Width: 17 mm
• Big End Pin Ø: 20 mm
• Big End Pin Length: 53 mm
• Washer Thickness: 20x34.5x1 mm
• Cross-Reference OEM Part Numbers:
• Mazzucchelli 0394, BCO0394A.

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM MX 125cc — 1986–1987
• KTM GS 125cc — 1986–1987

Match your exact make, model, year and specification before ordering.
