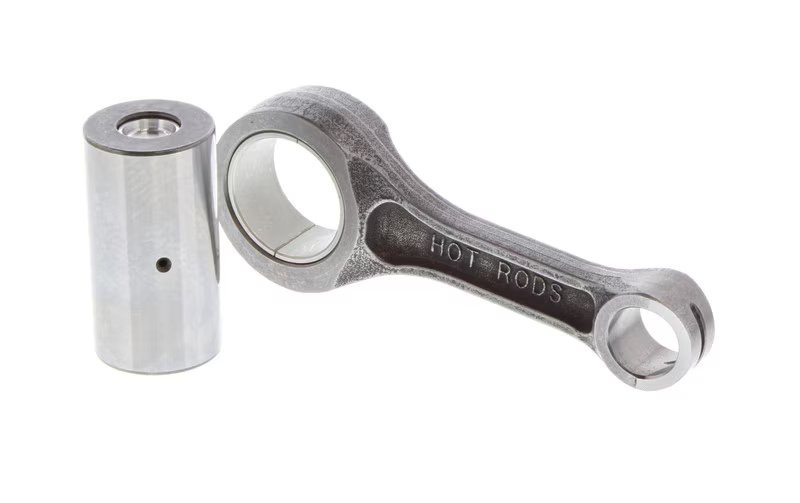

Hot Rods Connecting Rod KTM EXC-F350, Hotrods 8710 77730015144

Hot Rods Connecting Rod KTM EXC-F350, Hotrods 8710 77730015144. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KTM EXC-F350, Hotrods 8710 77730015144
• Part number: 56-957.HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength and durability.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Advanced caged needle roller bearing design ensures high-RPM performance.
• Big end design with side scalloping and vent slots minimizes bearing race distortion at high RPM.
• Shot-peened to eliminate surface stress risers and smoothly blend rod forging radiuses.
• Double-honed for ultra-round bearing surfaces, enhancing reliability at high RPM.
• Small ends are double drilled for additional lubrication and cooling of the wrist pin bearing.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
• Technical Specifications:
• Centre to Centre: 102.00 mm
• Big End Bore: 36.00 mm
• Pin Diameter: 32.00 mm
• Pin Length: 60.00 mm
• Small End Bore: 18.00 mm
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSQVARNA FE 350cc — 2014–2016
• KTM XC F 350cc — 2013–2015
• KTM SX F 350cc — 2013–2015
• HUSQVARNA FC 350cc — 2014–2016
• HUSQVARNA FC 350cc — 2014–2015
• KTM XCF W 350cc — 2014–2016
• HUSQVARNA FC 250cc — 2014–2016
• KTM XCF W 350cc — 2014–2015
• KTM EXC F 350cc — 2014–2016
• KTM EXC F 350cc — 2014–2015
• KTM FREERIDE 350cc — 2015–2017
• KTM EXC F 350cc — 2013–2015

Match your exact make, model, year and specification before ordering.
