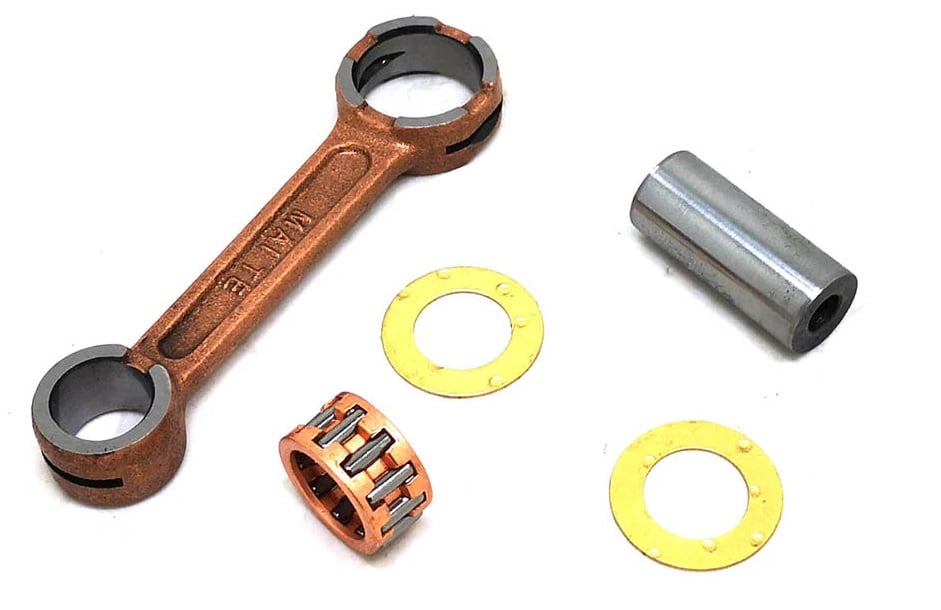

Dirt Racing Connecting Rod Kit 03-08 KTM SX Pro Junior Senior 50 65 45030015500

Dirt Racing Connecting Rod Kit 03-08 KTM SX Pro Junior Senior 50 65 45030015500. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 03-08 KTM SX Pro Junior Senior 50 65 45030015500
• Part number: 56-960.DR
• Brand: Dirt Racing
• Heavy-duty OE replacement connecting rod
• Designed for crankshaft rebuild applications
• Uses a caged needle roller bearing design for high-RPM operation
• Supplied complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers where required
• Compatible with aftermarket and OE crankshafts
• Material: SNCM220 chrome alloy steel
• Crankpin material: hot-rolled ASTM steel, case hardened
• Thrust washer material: bronze phosphor with silver coating
• Centre to centre: 88 mm
• Small end bearing: 12 x 15 x 16.3 mm
• Small end bore diameter: 15 mm
• Small end width: 13 mm
• Big end bearing: 18 x 24 x 14.8 mm
• Big end bore diameter: 24 mm
• Big end width: 14.90 mm
• Big end pin diameter: 18 mm
• Big end pin length: 42 mm
• Washer thickness: 1.00 mm
• Cross-Reference OEM Part Numbers
• Hot Rods: 8626
• ProX: 03-6023
• Wossner: P2002
• Psychic: MX-09039

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 65cc — 2000–2008
• KTM SX 65cc — 2003–2008

Match your exact make, model, year and specification before ordering.
