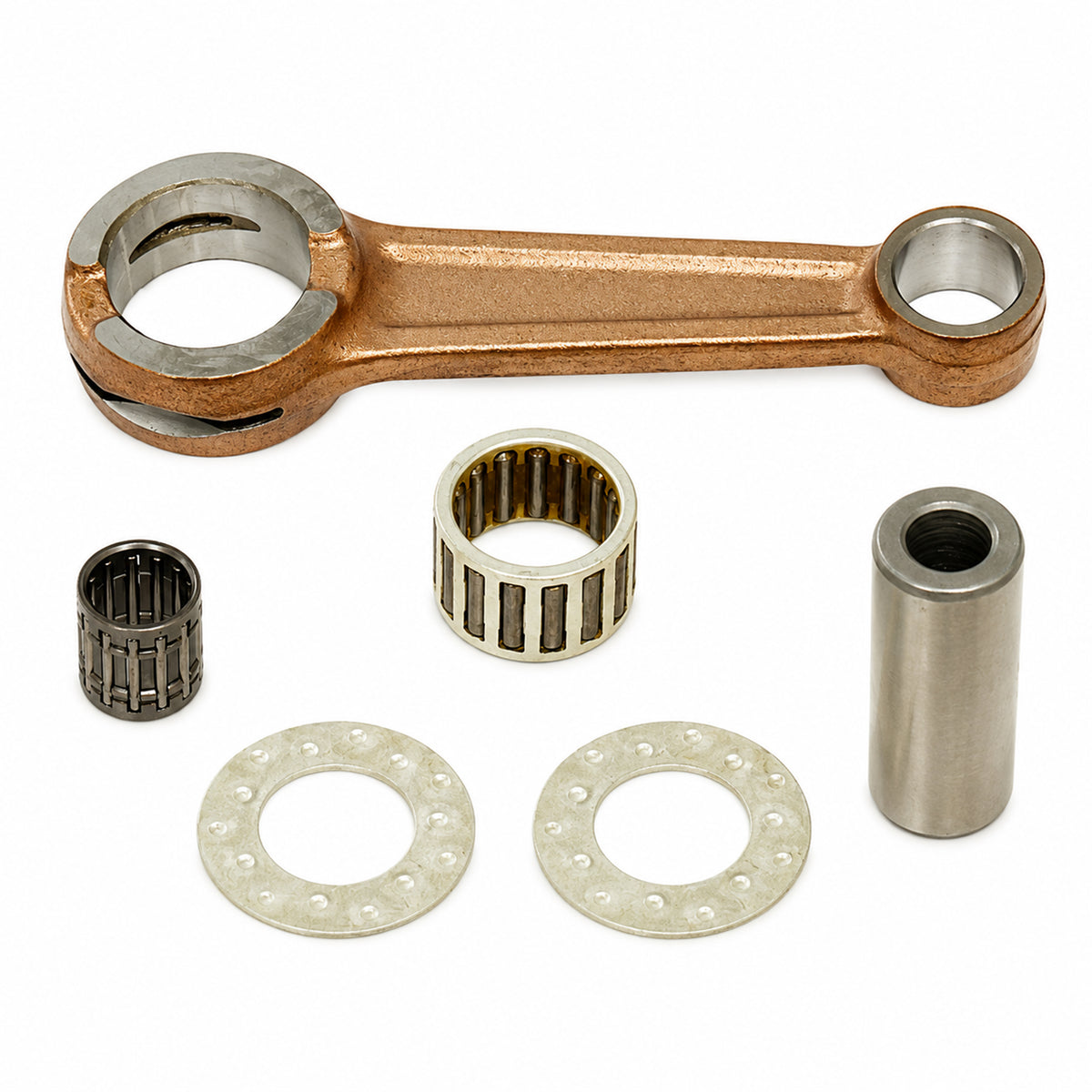

Namura Technologies Connecting Rod 03-08 KTM65, Namura RX-70008 / MX-09039 Kit

Namura Technologies Connecting Rod 03-08 KTM65, Namura RX-70008 / MX-09039 Kit. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 03-08 KTM65, Namura RX-70008 / MX-09039 Kit
• Part number: 56-960.NM
• Brand: Namura Technologies
• KTM
• SX65 2003-2008,
• CONNECTING CONROD ROD REBUILD KIT. NAMURA RX-70008
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 88
• Small End Bearing
• 12x15x16.3
• Small End Bore Ø
• 15
• Small End Width
• 13
• Big End Bearing
• 18x24x14.8
• Big End Bore Ø
• 24
• Big End Width
• 14.90
• Big End Pin Ø
• 18
• Big End Pin Length
• 42
• Washer Thickness
• 1.00
• Part No. 56-960.DR (www.fdyperformance.com)
• KTM: 46030015100, HOTRODS 8626, PROX 03-6023, WOSSNER P2002

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
