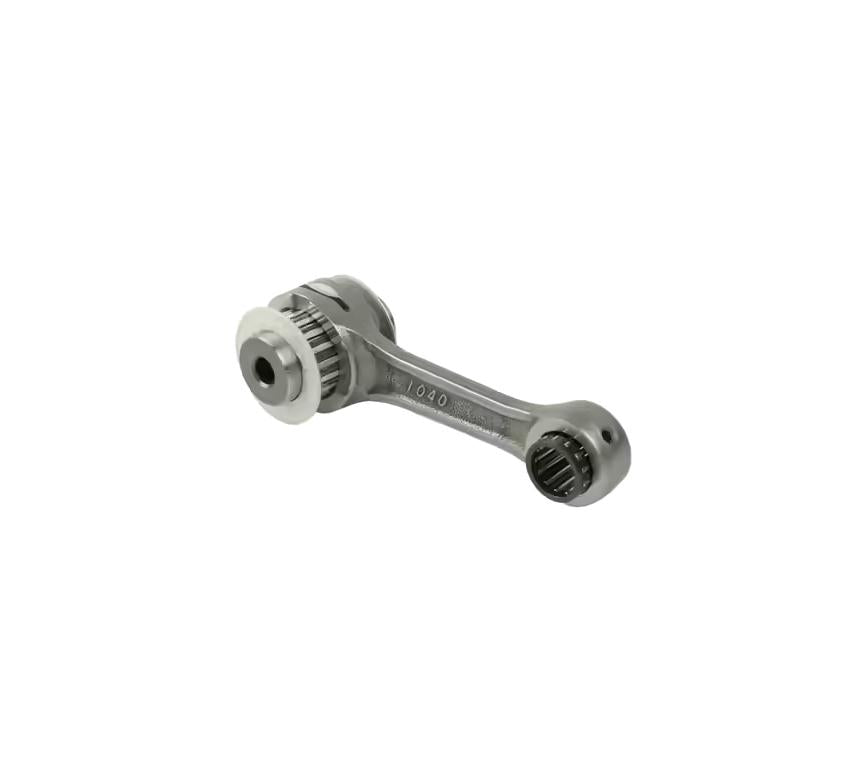

Connecting Rod Kit KTM SX 85/105 03-12, Athena P40321040

Connecting Rod Kit KTM SX 85/105 03-12, Athena P40321040. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit KTM SX 85/105 03-12, Athena P40321040
• Part number: 56-961.ATH
• Brand: Athena
• ATHENA Connecting Rod Offroad Kit - P40321040
• Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
• Technical features
• Big End Bore (mm) 28.00
• Big End Pin Diameter (mm) 22.00
• Big End Width (mm) 16.00
• Center To Center (mm) 96.00
• Net Weight (Kg) 0.32
• Piston Pin Diameter (mm) 18.00
• Small End Width (mm) 13.00
• Washer Thickness (mm) 1.00
• Partner Cross Reference code
• 47030015100
• HOTROD 8640
• PROX 03.6104
• PSYCHIC MX-09040
• WOSSNER P2006

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 85cc — 2003–2012
• KTM SX 105cc — 2004–2011
• KTM SX 105cc — 2003–2011
• KTM SX 85cc — 2004
• KTM SX 105cc — 2004–2005
• KTM SX 85cc — 2012
• KTM SX 85cc — 2011
• KTM SX 85cc — 2005
• KTM SX 85cc — 2003
• KTM SX 85cc — 2009–2010
• KTM SX 85cc — 2006–2008
• KTM SX 105cc — 2006–2009
• KTM SX 105cc — 2004–2009
• KTM SX 105cc — 2003–2008

Match your exact make, model, year and specification before ordering.
