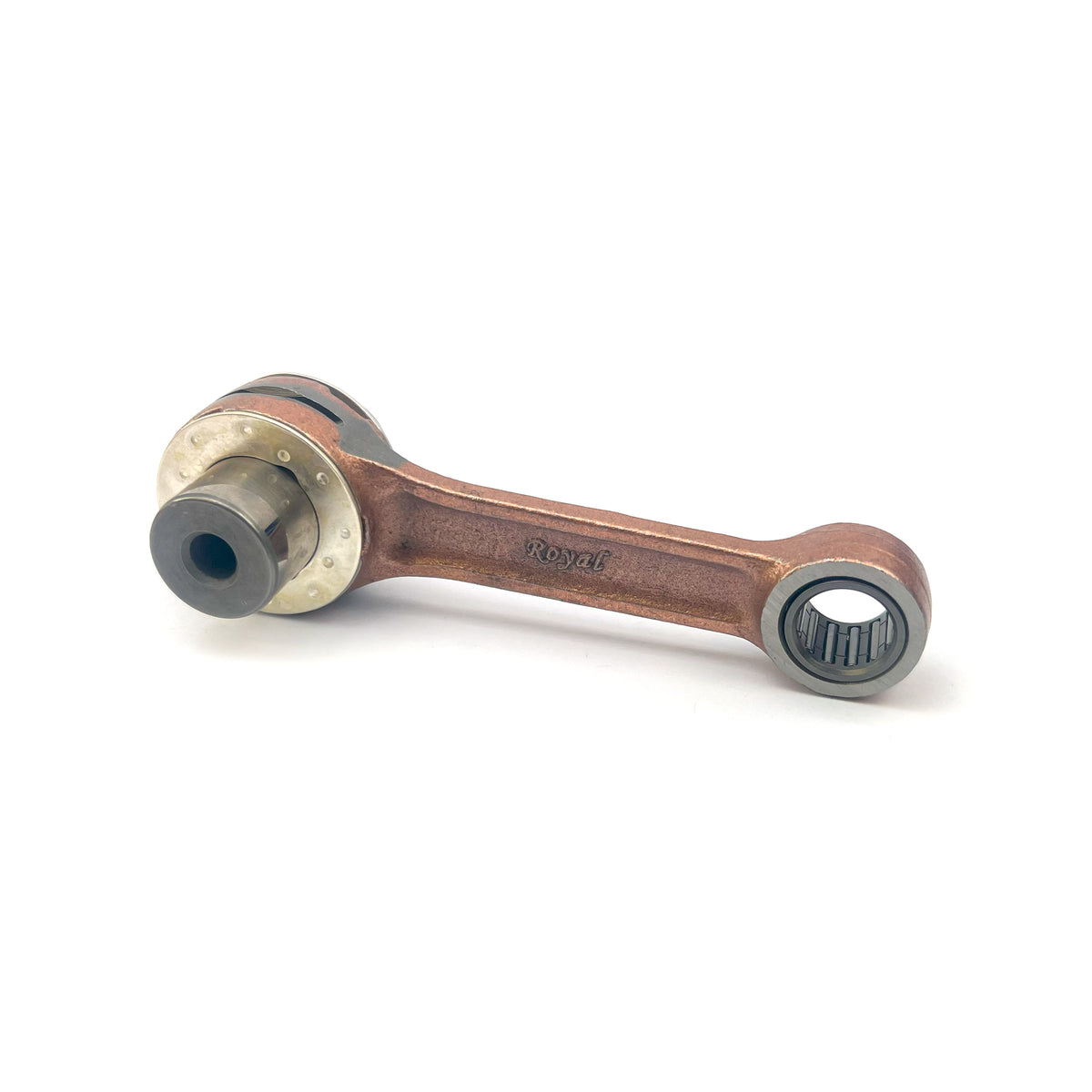

Connecting Rod KTM 85 03-12, Psychic MX-09040 KTM SX105

Connecting Rod KTM 85 03-12, Psychic MX-09040 KTM SX105. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KTM 85 03-12, Psychic MX-09040 KTM SX105
• Part number: 56-961.DR
• Brand: Psychic
• Heavy-duty OE replacement connecting rods.
• Made from certified chrome alloy steel for superior strength.
• Crankpins constructed from hot-rolled ASTM steel and case-hardened.
• Equipped with advanced caged needle roller bearing designs for high RPM performance.
• Bronze phosphor thrust washers with silver coating for enhanced durability.
• Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if required).
• Compatible with OE and aftermarket crankshafts.
• Manufactured using SNCM220 material.
• Centre to Centre: 96 mm
• Small End Bearing: 14x18x16.8 mm
• Small End Bore Ø: 18 mm
• Small End Width: 13 mm
• Big End Bearing: 22x28x15.8 mm
• Big End Bore Ø: 28 mm
• Big End Width: 16 mm
• Big End Pin Ø: 22 mm
• Big End Pin Length: 46 mm
• Washer Thickness: 1.00 mm
• Cross-Reference OEM Part Numbers:
• 47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 85cc — 2003–2012
• KTM SX 105cc — 2004–2011
• KTM SX 105cc — 2003–2011
• KTM SX 105cc — 2004–2009
• KTM SX 105cc — 2003–2008

Match your exact make, model, year and specification before ordering.
