Hot Rods Connecting Rod KTM 85 03-12, Hotrod 8724 KTM SX105

Hot Rods Connecting Rod KTM 85 03-12, Hotrod 8724 KTM SX105. Find the product specifications and compatibility information below.

Product details

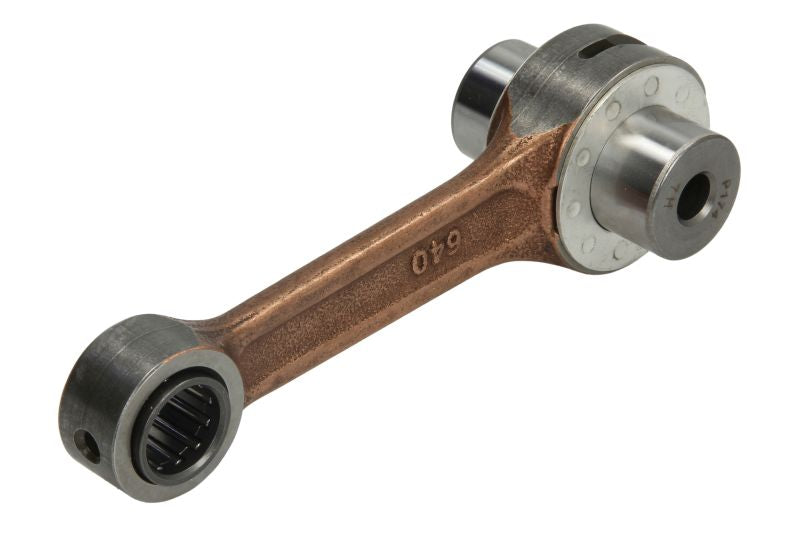

• Product: Connecting Rod KTM 85 03-12, Hotrod 8724 KTM SX105
• Part number: 56-961.HR
• Brand: Hot Rods

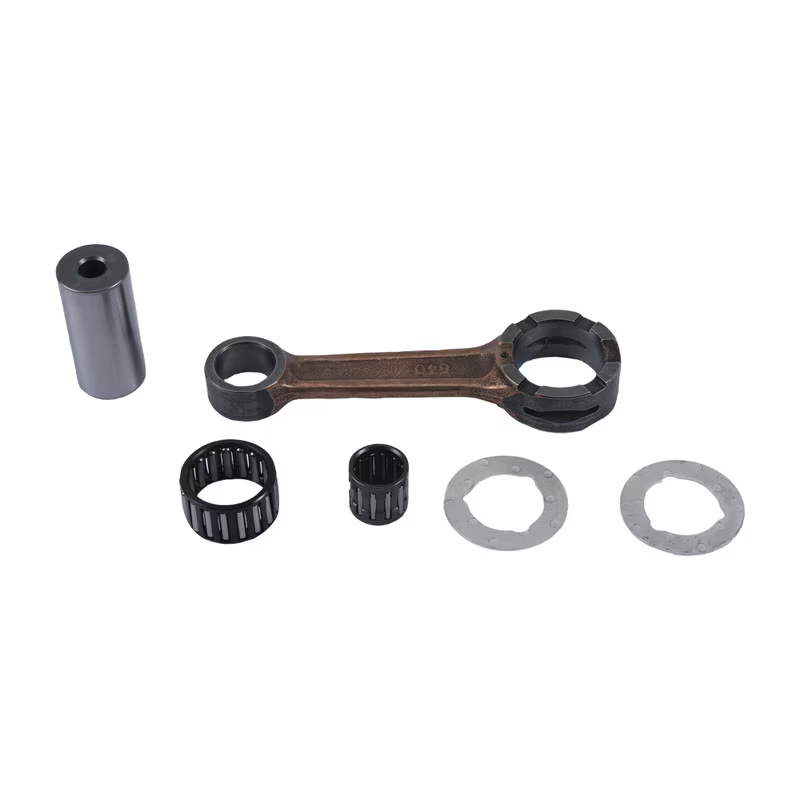

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
• Advanced design incorporates side scalloping and vent slots to minimize bearing race distortion at high RPM.
• Double-forged rods ensure improved grain flow and dimensional consistency.
• Shot-peened and double-honed for superior durability under heavy loads.
• Double-drilled small ends provide enhanced lubrication and cooling for the wrist pin bearing.
• Thrust washers and crank pin bearings feature silver coating for added lubricity.
• Centre to Centre: 96.00 mm
• Big End Bore Ø: 28.00 mm
• Big End Width: Not specified
• Pin Diameter: 22.00 mm
• Pin Length: 46.10 mm
• Small End Bore Ø: 18.00 mm
• Small End Width: Not specified
• Washer Thickness: 1.00 mm
• Cross-Reference OEM Part Numbers:
• 47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 85cc — 2003–2012
• KTM SX 105cc — 2004–2011
• KTM SX 105cc — 2003–2011
• KTM SX 105cc — 2004–2009
• KTM SX 105cc — 2003–2008

Match your exact make, model, year and specification before ordering.
