Dirt Racing Connecting Rod Cagiva 125, Conrod Size 110/22 BCO0590A, RO-8204, MC-09203

Dirt Racing Connecting Rod Cagiva 125, Conrod Size 110/22 BCO0590A, RO-8204, MC-09203. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Cagiva 125, Conrod Size 110/22 BCO0590A, RO-8204, MC-09203
• Part number: 56-966
• Brand: Dirt Racing
• Cagiva - Mito 125,
• CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09203
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

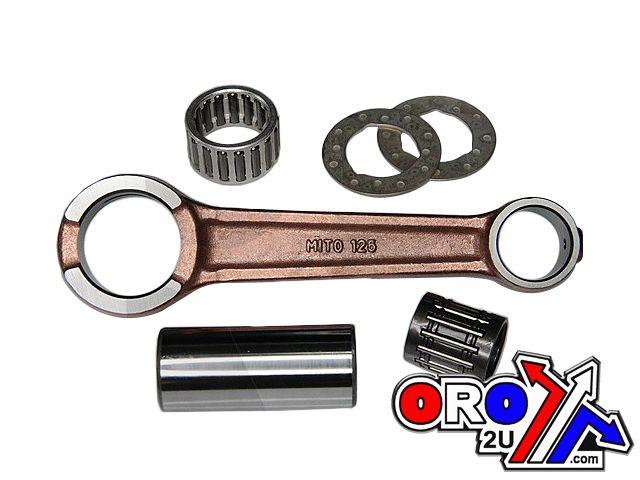

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,

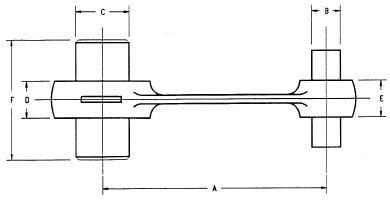

• SIZE
• MM
• Centre 2 Centre
• 110
• Small End Bearing
• 16x22x22.5
• Small End Bore Ø
• 18
• Small End Width
• 16
• Big End Bearing
• 22x28x15.8
• Big End Bore Ø
• 28
• Big End Width
• Big End Pin Ø
• 22
• Big End Pin Length
• 51
• Washer Thickness
• 22x27x1
• Meets or exceeds OEM quality.
• Direct oem replacement.
• All are made to OEM specifications and match the original equipment in appearance.
• Please check the image before ordering to avoid mistakes.
• Part No. 56-966 (www.fdyperformance.com)
• RO-8204, MC-09203, BCO0590A

Vehicle fitment

Applications listed in the supplier fitment data:

• CAGIVA MITO 125cc — 1989–2012
• CAGIVA MITO 125cc — 1989–2020

Match your exact make, model, year and specification before ordering.
