Mazzucchelli Connecting Rod Villers 192, Conrod Villers 200 250cc BCO0504

Mazzucchelli Connecting Rod Villers 192, Conrod Villers 200 250cc BCO0504. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Villers 192, Conrod Villers 200 250cc BCO0504
• Part number: 56-967
• Brand: Mazzucchelli
• VILLIERS 192cc / 200cc / 250cc,
• BCO0504

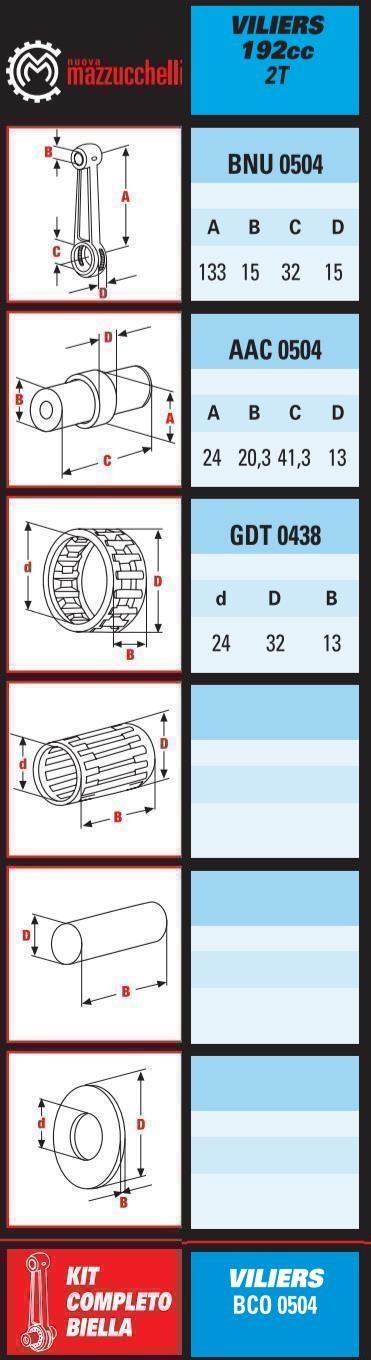

• CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 133, B = 15, C = 24.3, D = 13, E = 13, F = 41.30
• Note, some 192 / 200 use big end pin 41.30mm
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Dirt Racing Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

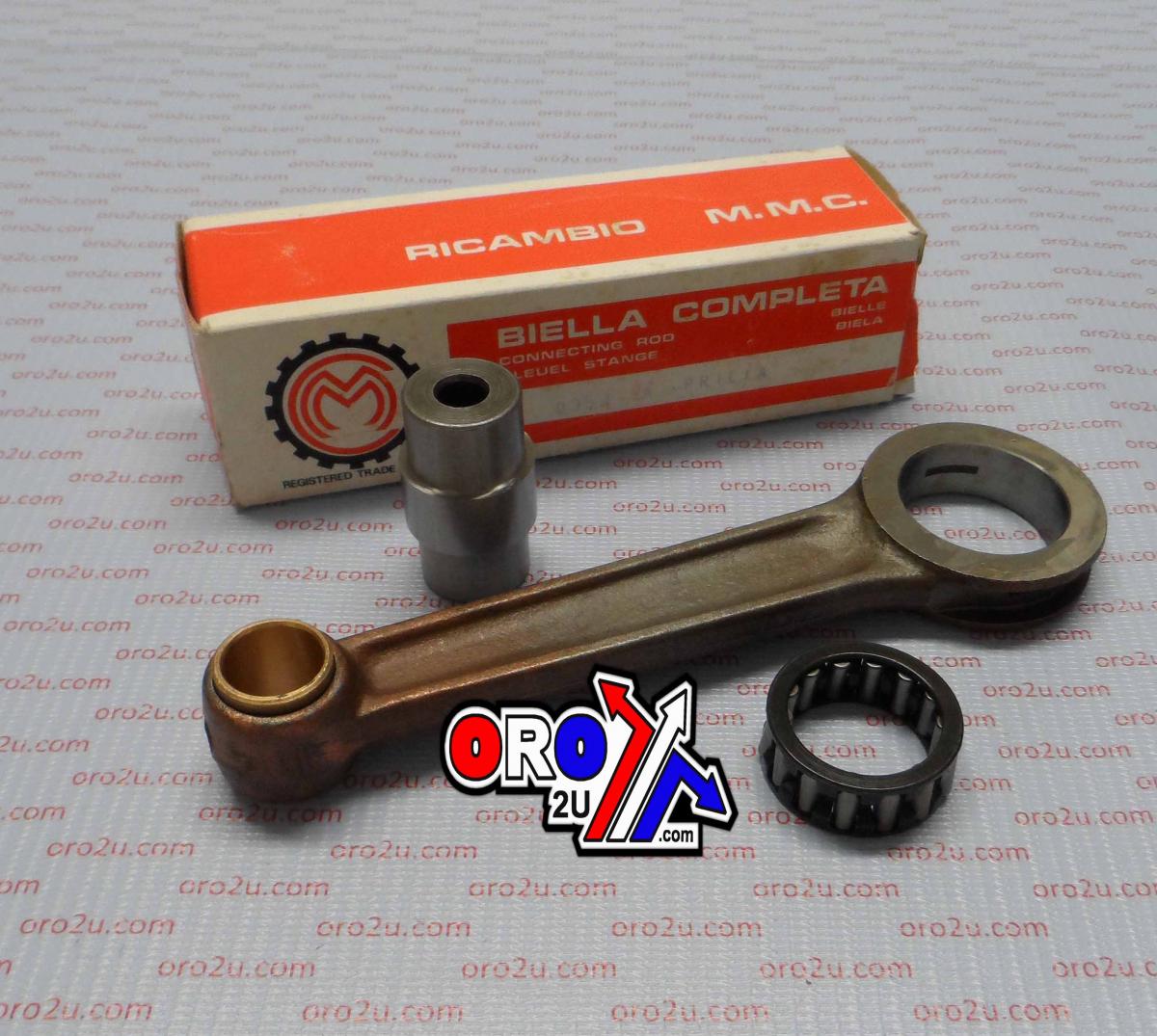

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 133
• Small End Bearing
• NONE BUSH
• Small End Bore Ø
• 15
• Small End Width
• Big End Bearing
• 24x32x13
• Big End Bore Ø
• 32
• Big End Width
• Big End Pin Ø
• 20.3 / 24
• Big End Pin Length
• 41.3
• Washer Thickness
• NONE
• CONNECTING ROD
• Part No. 56-967 (www.fdyperformance.com)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
