Mazzucchelli Connecting Rod Ossa 22x24 Conrod 439 BCO0439

Mazzucchelli Connecting Rod Ossa 22x24 Conrod 439 BCO0439. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Ossa 22x24 Conrod 439 BCO0439
• Part number: 56-968.MK1
• Brand: Mazzucchelli
• OSSA 200cc / 250cc MK1 Connecting ConRod Rebuild Kit BCO0439
• Made in Italy.
• Heavy-duty OE replacement connecting rods.
• Certified Chrome alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Dirt Racing Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

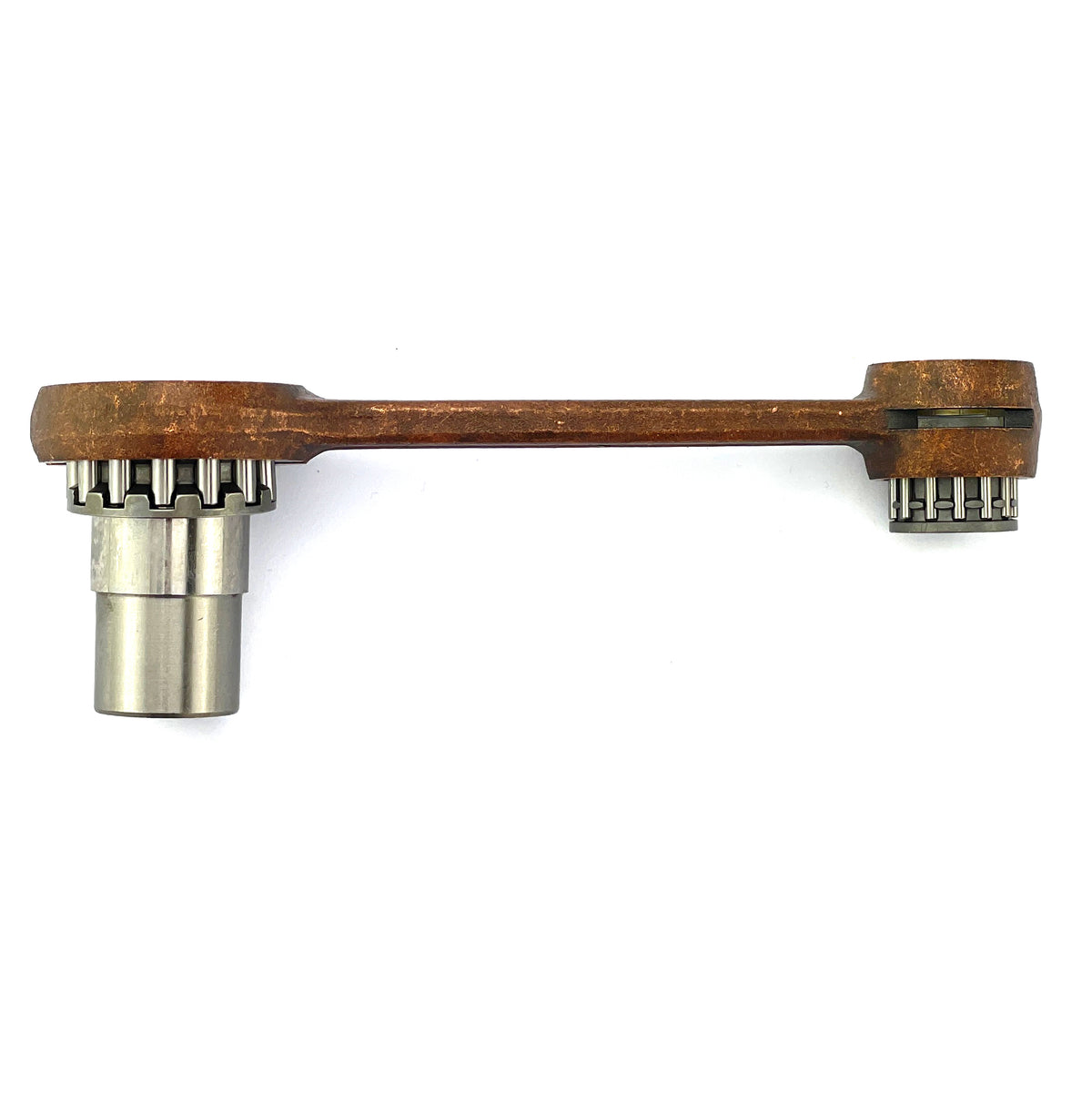

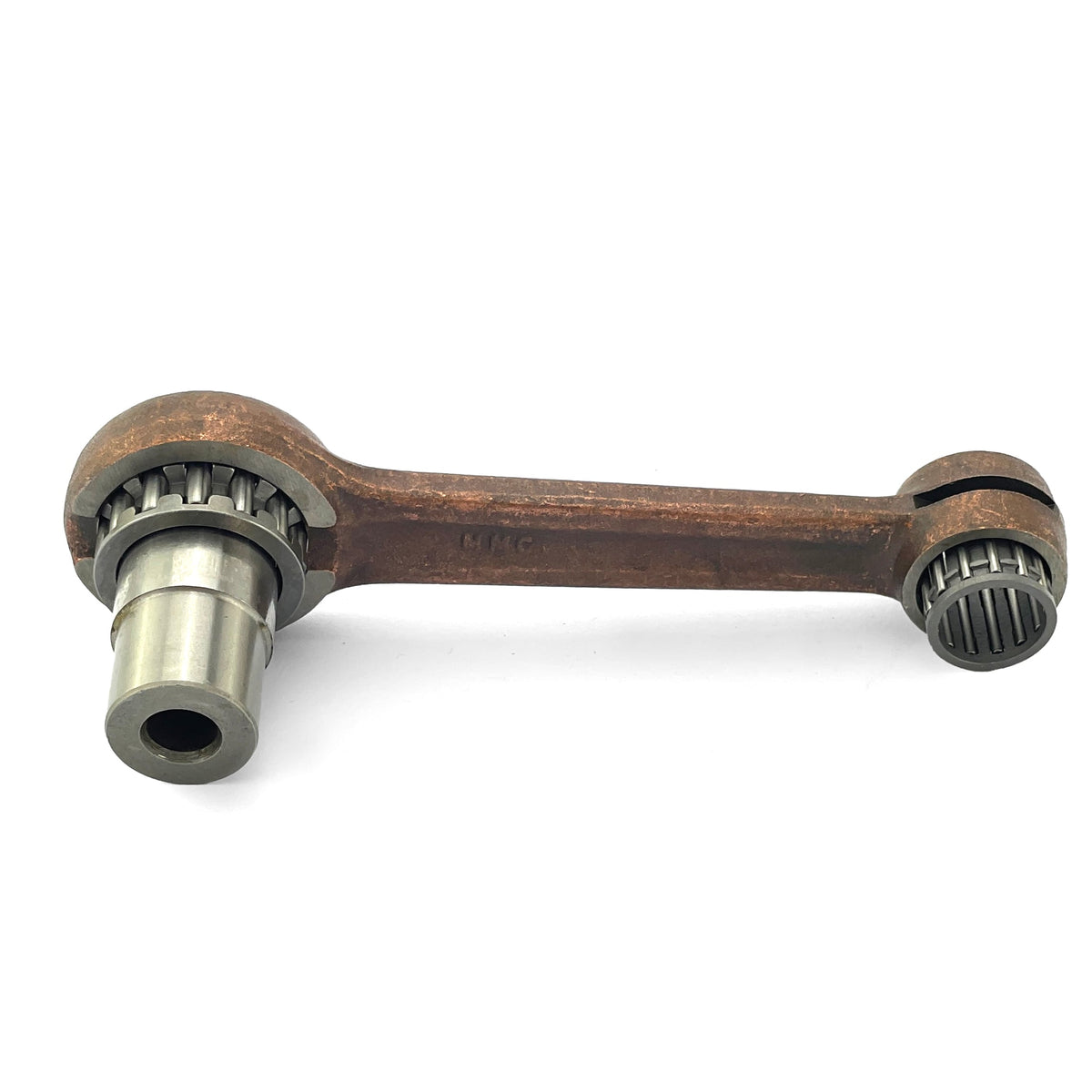

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if needed.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220

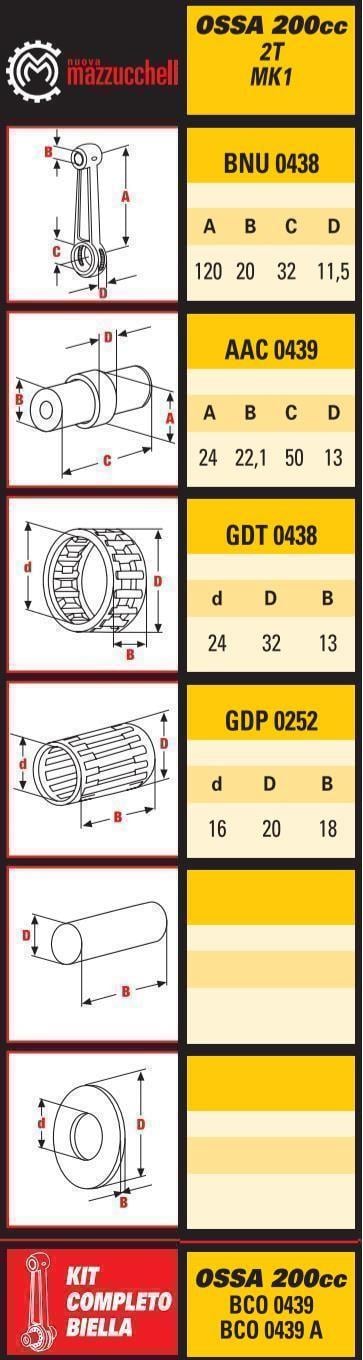

• Size (MM):
• Centre-to-Centre: 120
• Small End Bearing: 16x20x18
• Small End Bore Ø: 20
• Small End Width: 11.50
• Big End Bearing: 24x32x13
• Big End Bore Ø: 32
• Big End Width: 11.50
• Big End Pin Ø: 22/24/22
• Big End Pin Length: 50
• Washer Thickness: None
• PIN Size: 22x24x22 / 50mm LONG
• ROD Size: Center-to-Center 120mm, Top Eye 20mm, Bottom Eye 32mm, Thickness 11.50mm
• Small End Bearing & Big End Bearing.
• Part No.: 56-968
• Cross-reference numbers ONLY:
• Mazzucchelli BCO0439

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
