Connecting Rod Fantic 125 200, Mazzucchelli BCO0300A

Connecting Rod Fantic 125 200, Mazzucchelli BCO0300A. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Fantic 125 200, Mazzucchelli BCO0300A
• Part number: 56-970
• Brand: Mazzucchelli

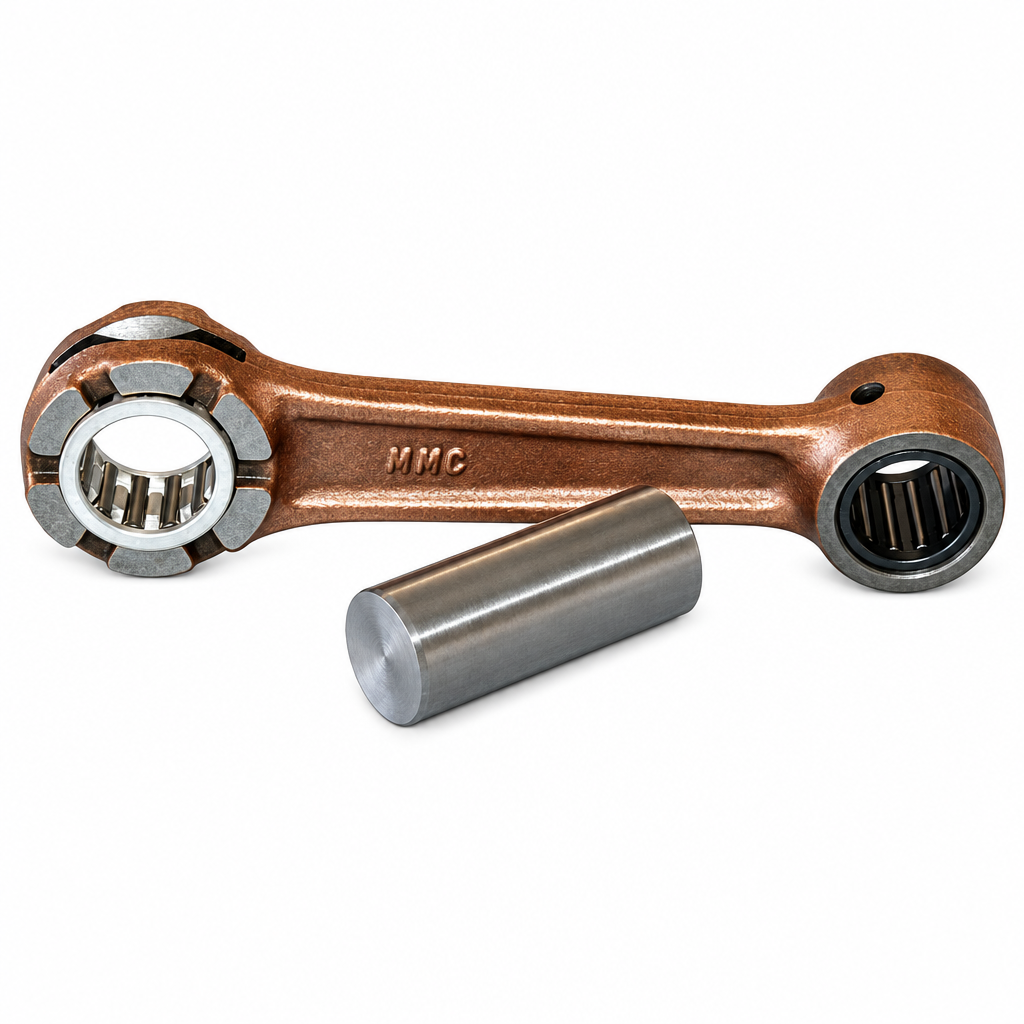

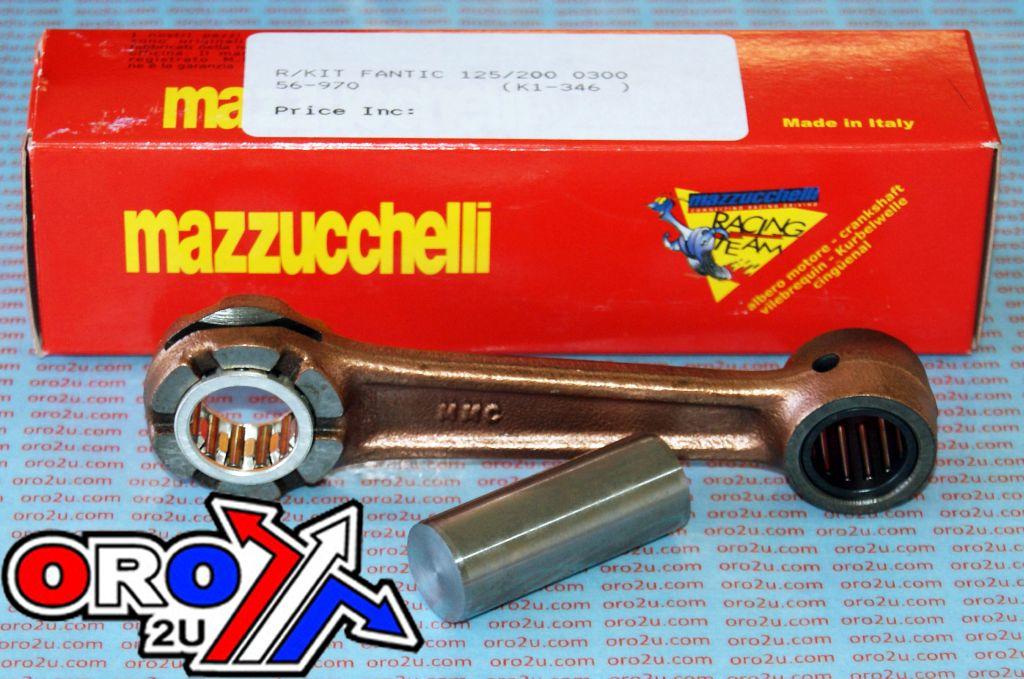

• The Mazzucchelli connecting rod is a replacement component for Fantic 125 and 200 trials engines. It connects the piston to the crankshaft and is intended for use when rebuilding the crankshaft assembly.
• Direct replacement for the original connecting rod.
• Supplied with small-end and big-end bearings.
• Centre-to-centre length: 105 mm
• Small-end bearing: 16 × 20 × 22 mm
• Small-end bore diameter: 20 mm
• Small-end width: 15 mm
• Big-end bearing: 18 × 24 × 15 mm
• Big-end bore diameter: 24 mm
• Big-end width: 15 mm
• Big-end pin diameter: 18 mm
• Big-end pin length: 46 mm
• Connecting-rod bearings: silver-plated
• Cross-Reference OEM Part Numbers
• Mazzucchelli: BCO0300A; BCO-0300-A

Vehicle fitment

Applications listed in the supplier fitment data:

• FANTIC TRIALS 125cc — 1972–2020
• FANTIC TRIALS 200cc — 1972–2020

Match your exact make, model, year and specification before ordering.
